Toyota SIENNA HYBRID — REAR DOOR WINDOW REGULATOR & HINGE

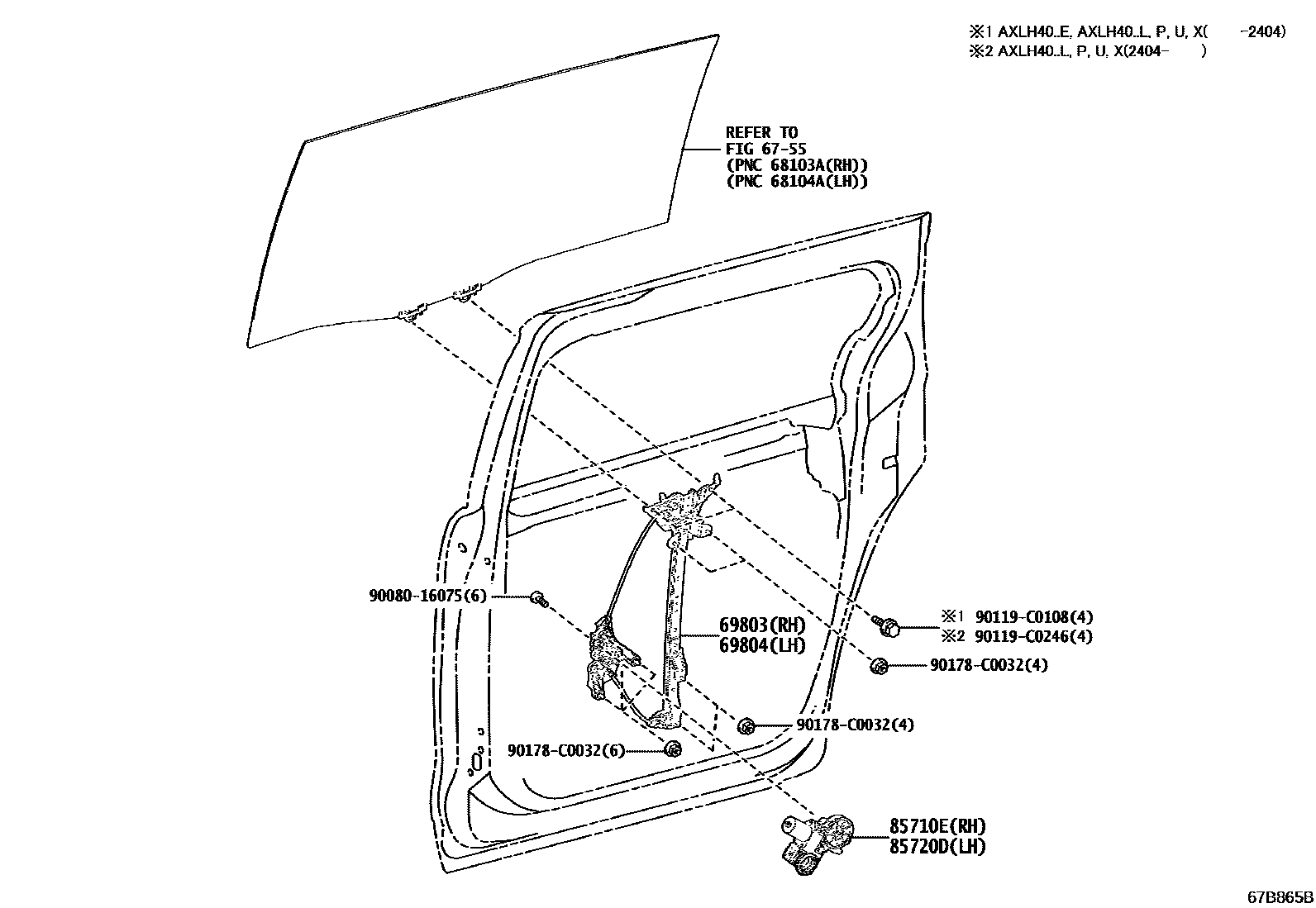

Parts diagram

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-08040i202112-202206

main69803-08041i202207

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-08040i202112-202206

main69804-08041i202207

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-08090i202112

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-08090i202112

9008016075

main90080-16075

90119C0108

main90119-C0108

90119C0246

main90119-C0246

90178C0032

main90178-C0032

9 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota SIENNA HYBRID

This section contains 9 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota SIENNA HYBRID. Key components include: REAR DOOR PANEL & GLASS, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, MOTOR ASSY, POWER WINDOW REGULATOR, RH, MOTOR ASSY, POWER WINDOW REGULATOR, LH.
