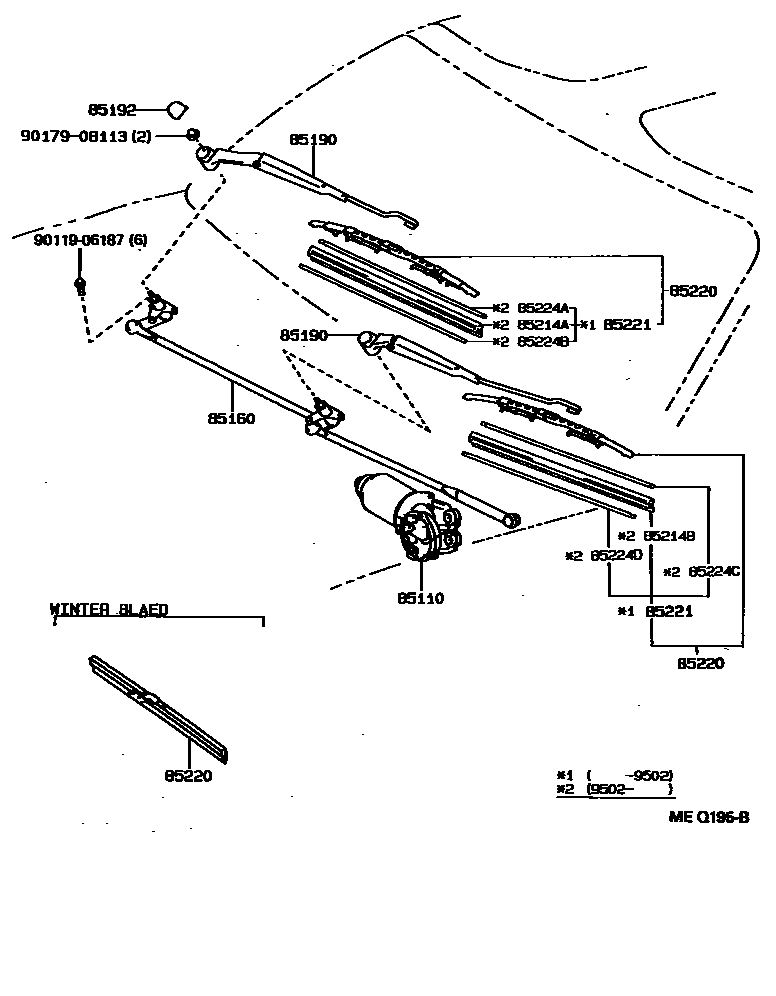

Toyota SERA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85070-18010iEXY10199003-199206

main85070-18011iEXY10199206-199512

main85070-18020iEXY10199003-199206

main85070-18021iEXY10199206-199512

85160LINK ASSY, WINDSHIELD WIPER

main85150-18020iEXY10199003-199512

85190ARM ASSY, WINDSHIELD WIPER

main85211-18010iEXY10199003-199112

main85211-18011iEXY10199112-199512

main85221-18010iEXY10199003-199112

main85221-18011iEXY10199112-199512

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iEXY10199003-199207

main85292-12020×2iEXY10199207-199512

85214ARUBBER, WIPER, RH

main85214-33060iEXY10199502-199512

sub85214-40080

85214BRUBBER, WIPER, LH

main85214-20320iEXY10199502-199512

sub85214-20330

85220BLADE ASSY, WINDSHIELD WIPER

main85212-18010iEXY10199003-199112

main85212-18011iEXY10199112-199211

main85212-18012iEXY10199211-199512

main85222-12692iEXY10199211-199512

main85222-18010iEXY10199003-199112

main85222-1G021iEXY10199112-199211

main85291-22050iEXY10199003-199512

sub85291-33060

main85291-30030iEXY10199003-199512

sub85291-22080

85221BLADE, WINDSHIELD WIPER

main85213-18010iEXY10199003-199112

sub85214-27H90

main85213-20310iEXY10199211-199502

main85213-32240iEXY10199112-199211

main85223-18010iEXY10199003-199112

sub85214-46011

sub85223-18H00

main85223-1G040iEXY10199112-199211

main85223-30400iEXY10199211-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33050iEXY10199502-199512

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33050iEXY10199502-199512

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-30430iEXY10199502-199512

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-30420iEXY10199502-199512

9011906187

main90119-06187

9017908113

main90179-08113

14 parts on this diagram · 1 diagram in section
