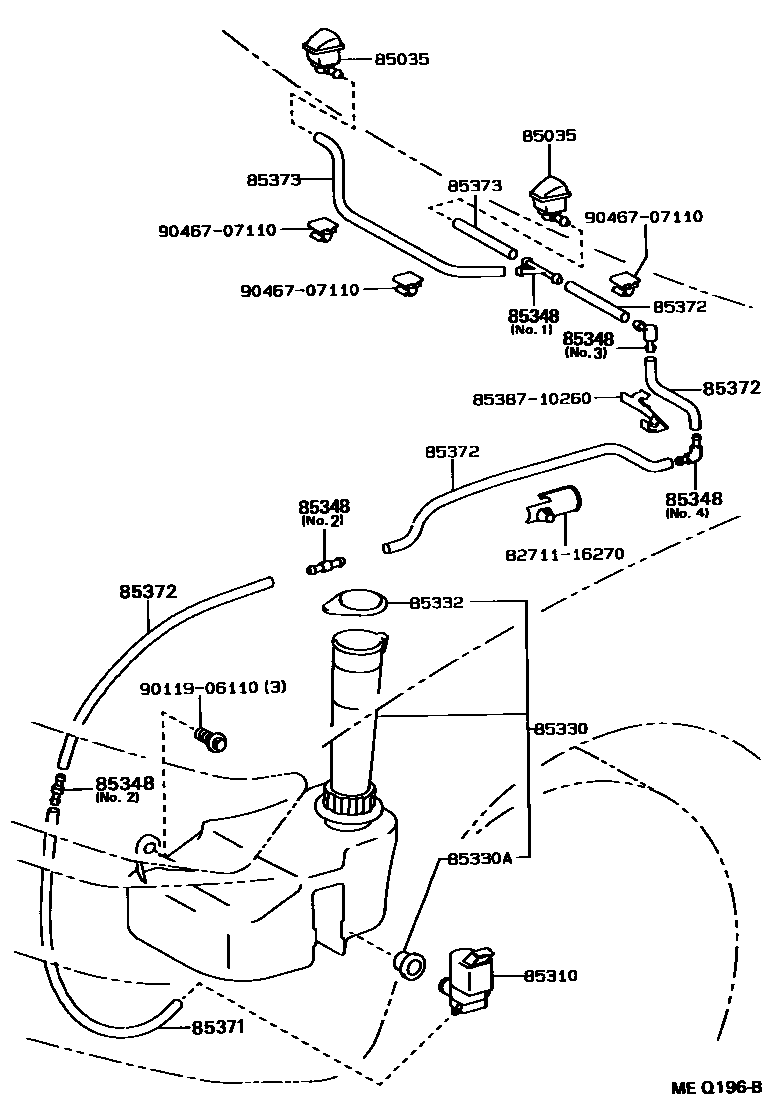

Toyota SERA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30020-C1×2iEXY10199003-199512

BLACK

sub85381-30030

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iEXY10199003-199512

85330JAR ASSY, WINDSHIELD WASHER

main85315-18010iEXY10199003-199512

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iEXY10199003-199512

85332CAP, WINDSHIELD WASHER JAR

main85316-10190iEXY10199003-199512

sub85316-16070

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390iEXY10199003-199512

main85349-89122×2iEXY10199003-199512

main85355-20200iEXY10199003-199512

main85376-10250iEXY10199003-199512

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iEXY10199003-199512

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iEXY10199003-199512

main90446-07001iEXY10199003-199512

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEXY10199003-199512

8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16270

8538710260CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-10260

9011906110

main90119-06110

9046707110

main90467-07110

13 parts on this diagram · 1 diagram in section
