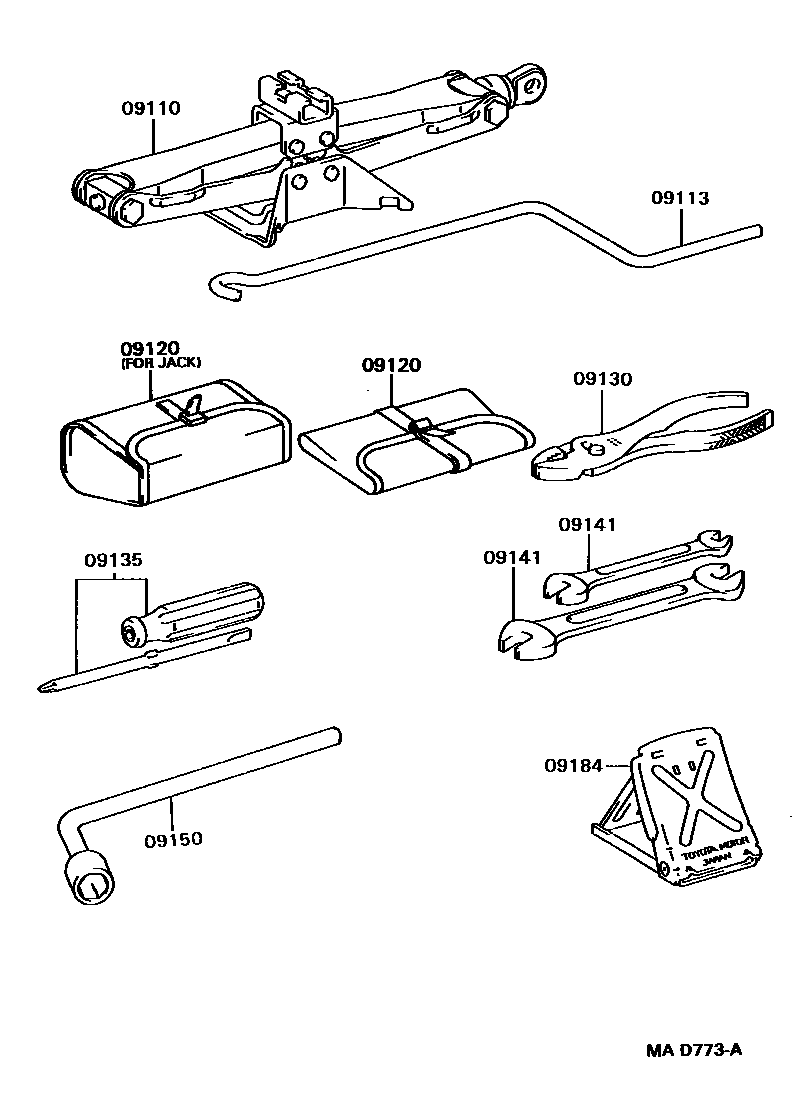

Toyota SERA — STANDARD TOOL

09110JACK ASSY

main09111-10050iEXY10199003-199512

09113HANDLE, JACK

main09113-20030iEXY10199003-199512

sub09113-20050

09120BAG, TOOL

main09120-12011iEXY10199003-199301

main09120-16030iEXY10199301-199512

main09120-18010iEXY10199003-199512

FOR JACK

sub09120-17020

09130PLIERS

main99913-11500iEXY10199003-199512

09135DRIVER, SCREW

main99915-10700iEXY10199003-199512

09141SPANNER

main99914-10810iEXY10199003-199512

main99914-11214iEXY10199003-199512

09150WRENCH, HUB NUT BOX

main09150-40010iEXY10199003-199512

09184STOPPER, WHEEL

main09184-00010iEXY10199003-199512

8 parts on this diagram · 1 diagram in section
