Toyota SERA — SPEAKER

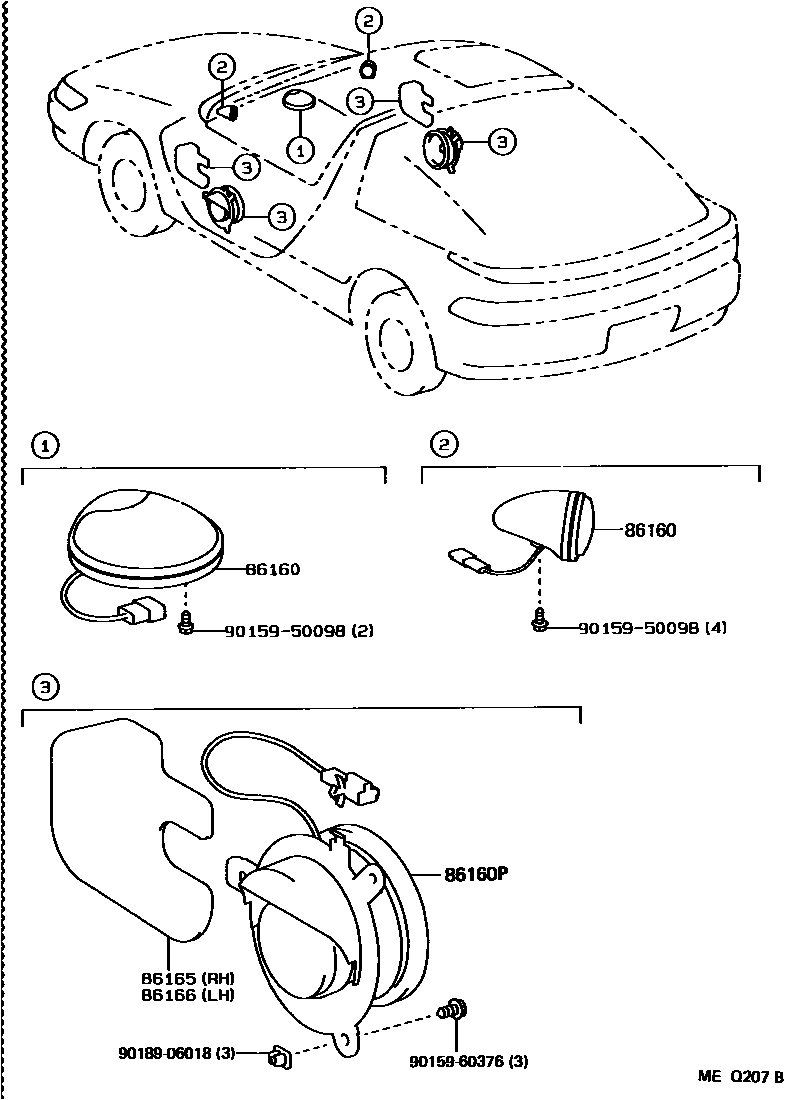

0001 1FRONT SPEAKER 0002 1REAR SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-18030-03iEXY10199003-199206

BLUE GRAY,TRIM1#,DOOR,RH

main86160-18030-05iEXY10199003-199206

GRAIGE,TRIM4#,DOOR,RH

main86160-18030-B0iEXY10199206-199512

LIGHT GRAY,TRIM1#,DOOR,RH

main86160-18040-03iEXY10199003-199206

BLUE GRAY,TRIM1#,DOOR,LH

main86160-18040-05iEXY10199003-199206

GRAIGE,TRIM4#,DOOR,LH

main86160-18040-B0iEXY10199206-199512

LIGHT GRAY,TRIM1#,DOOR,LH

main86160-18050-03iEXY10199003-199206

BLUE GRAY,TRIM1#,INSTRUMENT PANEL,CTR

main86160-18050-05iEXY10199003-199206

GRAIGE,TRIM4#,INSTRUMENT PANEL,CTR

main86160-18050-B0iEXY10199206-199512

LIGHT GRAY,TRIM1#,INSTRUMENT PANEL,CTR

86160PSPEAKER ASSY, FRONT NO.2

main86160-18010iEXY10199003-199512

main86160-18020iEXY10199003-199512

86165SEAL, SPEAKER, NO.1

main86165-18010iEXY10199003-199512

86166SEAL, SPEAKER, NO.2

main86166-18010iEXY10199003-199512

9015950098

main90159-50098

9015960376

main90159-60376

9018906018

main90189-06018

7 parts on this diagram · 2 diagrams in section
