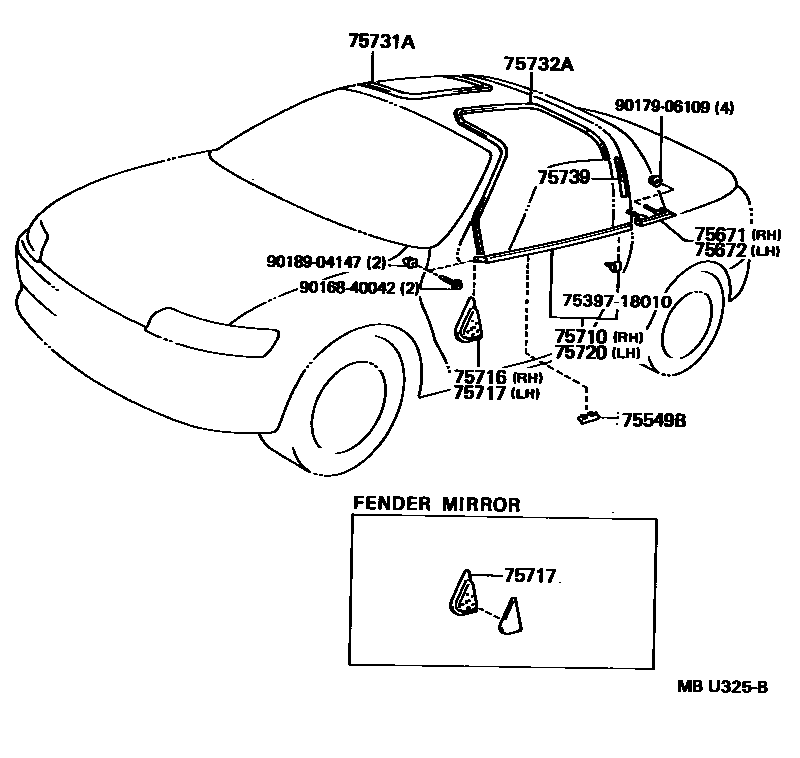

Toyota SERA — SIDE MOULDING

75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-18020×2i199003-199512

75671MOULDING, QUARTER BELT, RH

main75671-18010i199003-199512

75672MOULDING, QUARTER BELT, LH

main75672-18010i199003-199512

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-18010i199003-199512

75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH

main75716-18010i199003-199512

75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH

main75717-18010i199003-199512

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-18010i199003-199512

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-18010i199003-199512

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75731-18010i199003-199512

75739MOULDING, DOOR EDGE PROTECTION

main75739-18010×2i199003-199512

7539718010CLIP, BACK DOOR MOULDING, NO.3

main75397-18010

9016840042

main90168-40042

9017906109

main90179-06109

9018904147

main90189-04147

14 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota SERA

This section contains 14 genuine Toyota parts for the SIDE MOULDING system of the Toyota SERA. Key components include: FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2, MOULDING, QUARTER BELT, RH, MOULDING, QUARTER BELT, LH, MOULDING ASSY, FRONT DOOR BELT, RH, COVER, FRONT DOOR BELT MOULDING END, FRONT RH.
