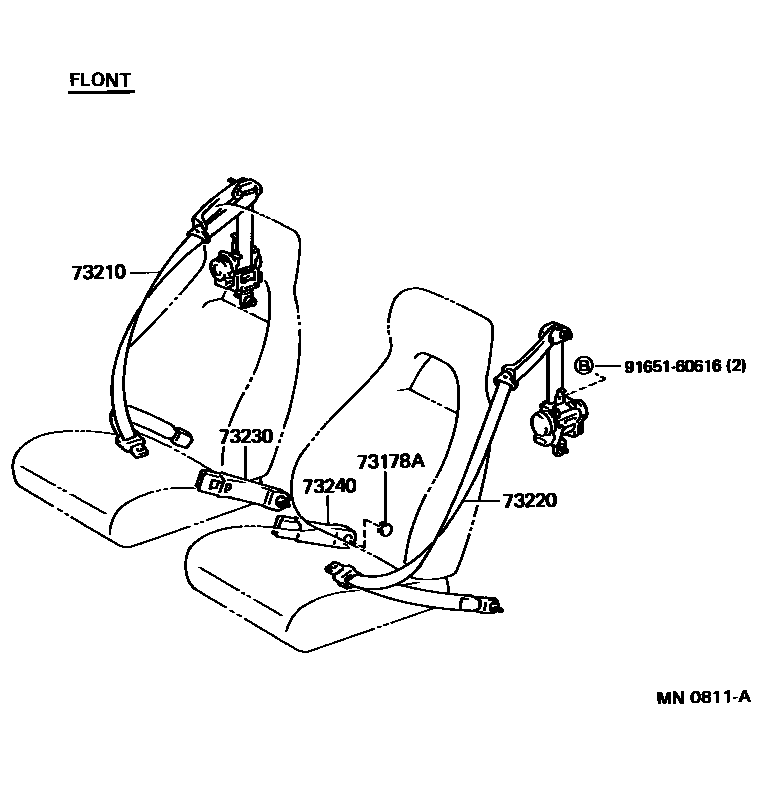

Toyota SERA — SEAT BELT & CHILD RESTRAINT SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-16010-33×2i199003-199206

BLUE GRAY,TRIM1#

main73178-16010-35×2i199003-199206

GREIGE,TRIM4#

main73178-16010-B2×2i199206-199512

LIGHT GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-18010-03i199003-199008

BLUE GRAY,TRIM1#

main73210-18010-05i199003-199008

GREIGE,TRIM4#

main73210-18011-03i199008-199206

BLUE GRAY,TRIM1#

main73210-18011-05i199008-199206

GREIGE,TRIM4#

main73210-18012-B0i199206-199512

LIGHT GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-18010-03i199003-199008

BLUE GRAY,TRIM1#

main73220-18010-05i199003-199008

GREIGE,TRIM4#

main73220-18011-03i199008-199206

BLUE GRAY,TRIM1#

main73220-18011-05i199008-199206

GREIGE,TRIM4#

main73220-18012-B0i199206-199512

LIGHT GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-18010-03i199003-199206

BLUE GRAY,TRIM1#

main73230-18010-05i199003-199206

GREIGE,TRIM4#

main73230-18011-B0i199206-199512

LIGHT GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-18010-03i199003-199206

BLUE GRAY,TRIM1#

main73230-18010-05i199003-199206

GREIGE,TRIM4#

main73240-18010-B0i199206-199512

LIGHT GRAY,TRIM1#

9165160616

main91651-60616

6 parts on this diagram · 2 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT for Toyota SERA

This section contains 18 genuine Toyota parts for the SEAT BELT & CHILD RESTRAINT SEAT system of the Toyota SERA. Key components include: CAP, SEAT BELT ANCHOR COVER, BELT ASSY, FRONT SEAT OUTER, RH, BELT ASSY, FRONT SEAT OUTER, LH, BELT ASSY, FRONT SEAT INNER, RH, BELT ASSY, FRONT SEAT INNER, LH.
