Toyota SERA — MOUNTING

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11040i5EFHE..EXY10199003-199512

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-11100i5EFHE..EXY10..ATM199003-199512

sub12321-11101

main12321-11110i5EFHE..EXY10..MTM199003-199512

main12321-11230i5EFHE..EXY10..MTM199206-199512

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11030i5EFHE..EXY10..ATM199003-199512

main12325-11060i5EFHE..EXY10..MTM199003-199512

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11110i5EFHE..EXY10199003-199512

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11270i5EFHE..EXY10..MTM199003-199512

main12371-11280i5EFHE..EXY10..ATM199003-199005

main12371-11340i5EFHE..EXY10..ATM199005-199107

main12371-11360i5EFHE..EXY10..ATM199107-199512

main12371-11440i5EFHE..EXY10..MTM199206-199212

main12371-11470i5EFHE..EXY10..MTM199212-199512

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-10040i5EFHE..EXY10..MTM199406-199512

main12372-11140i5EFHE..EXY10..MTM199003-199206

main12372-11160i5EFHE..EXY10..ATM199003-199512

main12372-11260i5EFHE..EXY10..MTM199206-199406

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i5EFHE..EXY10199003-199512

9010510111

main90105-10111

9010510127

main90105-10127

9010510164

main90105-10164

9010510215

main90105-10215

9010510266

main90105-10266

9010510268

main90105-10268

9010510355

main90105-10355

9010908202

main90109-08202

9011908173

main90119-08173

9011910622

main90119-10622

9011910623

main90119-10623

9011912191

main90119-12191

9011912218

main90119-12218

9011912226

main90119-12226

9011912264

main90119-12264

9017910088

main90179-10088

9038710013

main90387-10013

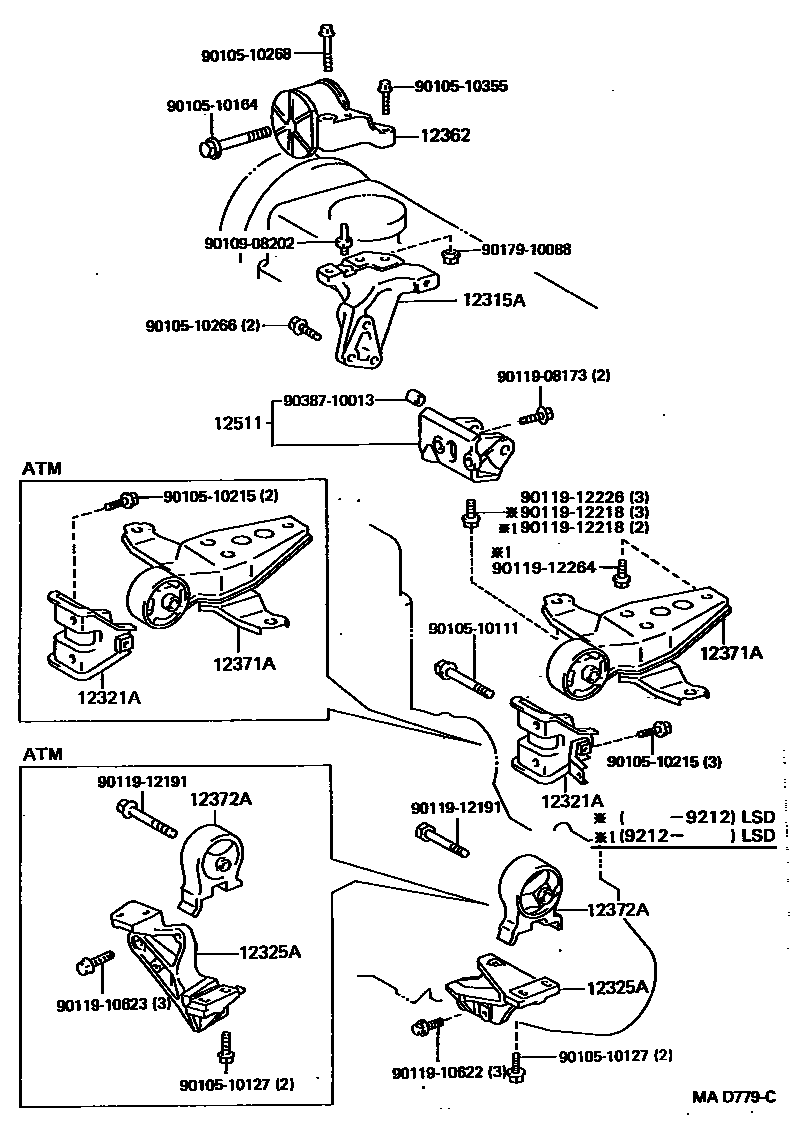

24 parts on this diagram · 1 diagram in section
