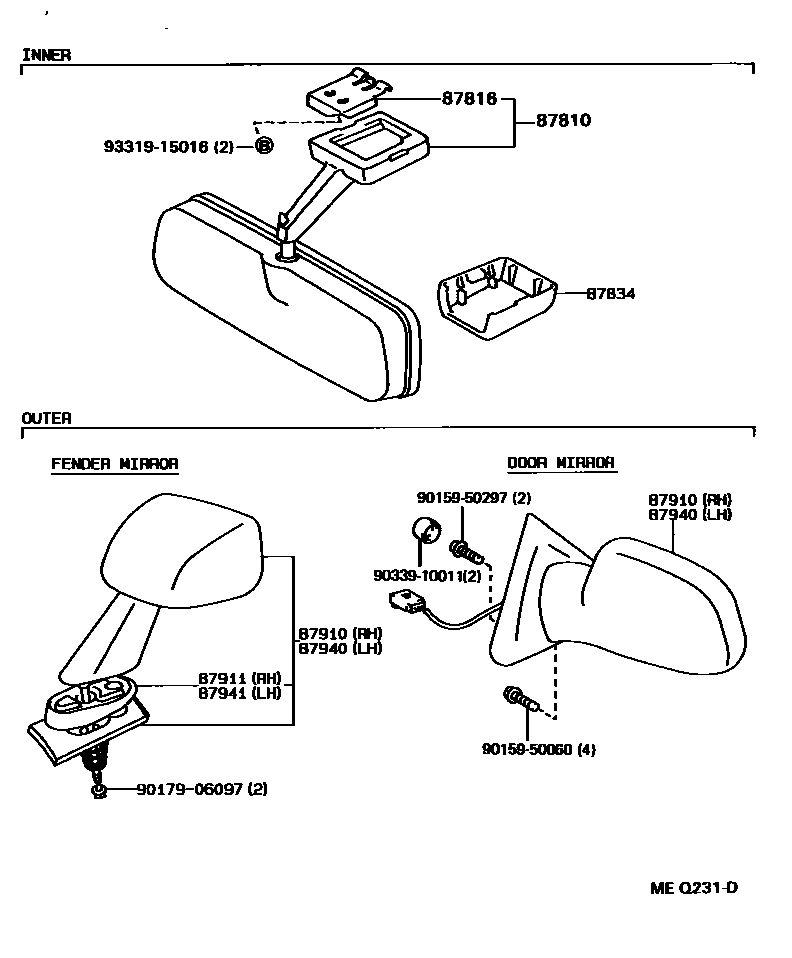

Toyota SERA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
GREIGE,TRIM4#
BLUE GRAY,TRIM1#
RIGHT GRAY,TRIM1#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BLUE GRAY,TRIM1#
GREIGE,TRIM4#
LIGHT GRAY,TRIM1#
87910MIRROR ASSY, OUTER REAR VIEW, RH
WINE RED MICA,3J8
DARK GRAY MICA METAL,188
MIDIUM BLUE MICA MET,8H7
LIGHT TURQUISE MICA,743
GRENISH YELLOW MICA,569
SILVER O.P.M,189
WINE RED MICA,3J8
DARK GRAY M.M.,188
MEDIUM BLUE M.M.,8H7
LIGHT TURQUISE M.M.,743
GRENISH YELLOW M.M.,569
SILVER O.P.M.,189
BLACK,202
ORANGE MICA,3K6
RED,3E6
TURQUOISE M.M.,746
LT.BLUE METALLIC,8G6
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
WINE RED MICA,3J8
DARK GRAY MICA METAL,188
MIDIUM BLUE MICA MET,8H7
LIGHT TURQUISE MICA,743
GRENISH YELLOW MICA,569
SILVER O.P.M.,189
WINE RED MICA,3J8
DARK GRAY M.M.,188
MEDIUM BLUE M.M.,8H7
LIGHT TURQUISE M.M.,743
GRENISH YELLOW M.M.,569
SILVER O.P.M.,189
BLACK,202
ORANGE MICA,3K6
RED,3E6
TURQUOISW M.M.,746
LT.BLUE METALLIC,8G6
87941GASKET, OUTER REAR VIEW MIRROR, LH
9015950060
main90159-50060
9015950297
main90159-50297
9017906097
main90179-06097
9033910011
main90339-10011
9331915016
main93319-15016
12 parts on this diagram · 1 diagram in section
