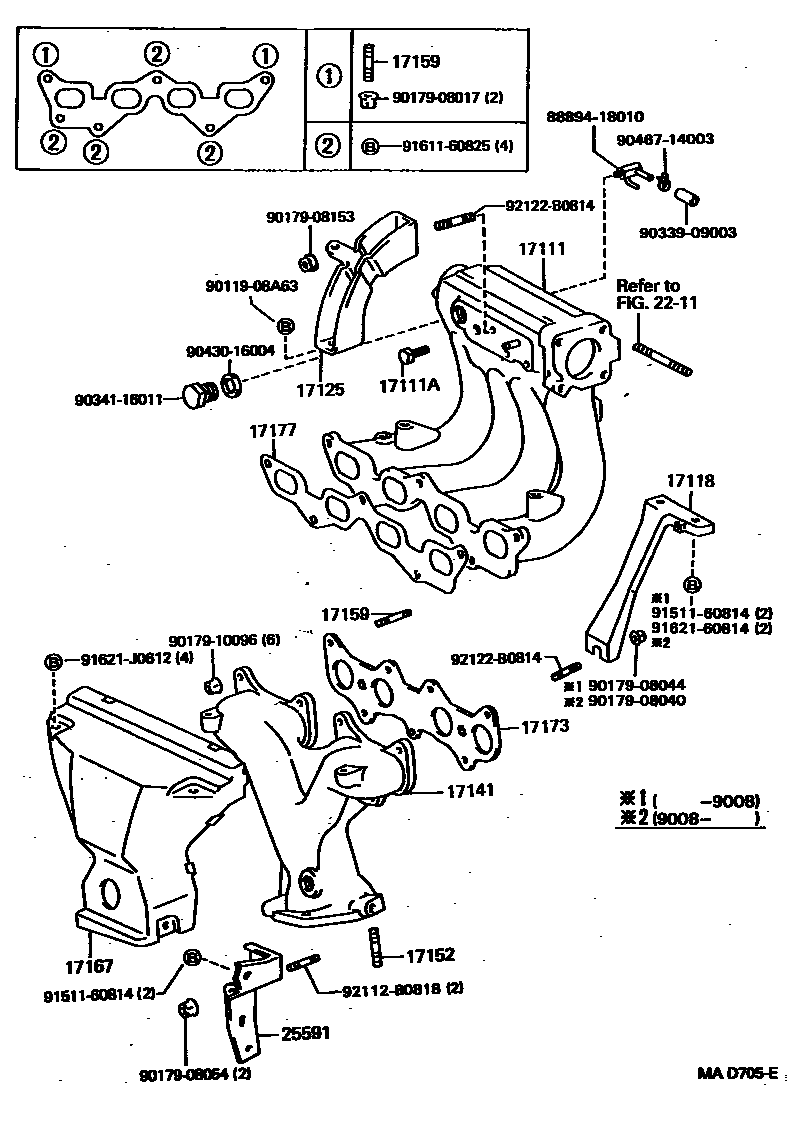

Toyota SERA — MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211FUEL INJECTION SYSTEM
25591BRACKET, MANIFOLD SUPPORT
8889418010
main88894-18010
9011908A63
main90119-08A63
9017908017
main90179-08017
9017908040
main90179-08040
9017908044
main90179-08044
9017908054
main90179-08054
9017908153
main90179-08153
9017910096
main90179-10096
9033909003
main90339-09003
9034116011
main90341-16011
9043016004
main90430-16004
9046714003
main90467-14003
9151160814
main91511-60814
9161160825
main91611-60825
9162160814
main91621-60814
91621J0612
main91621-J0612
92112B0818
main92112-B0818
92122B0814
main92122-B0814
30 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota SERA
This section contains 30 genuine Toyota parts for the MANIFOLD system of the Toyota SERA. Key components include: MANIFOLD, INTAKE, PLUG, NO.1, STAY, MANIFOLD, STAY, SURGE TANK, NO.1, MANIFOLD, EXHAUST.
