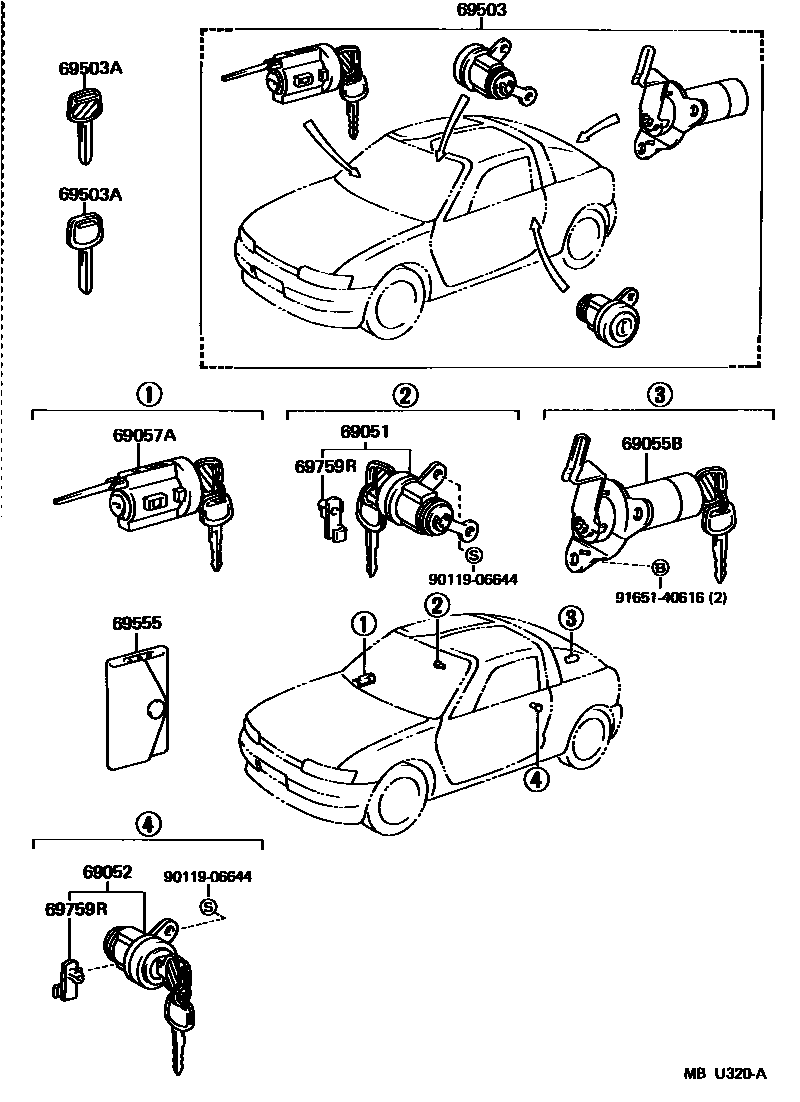

Toyota SERA — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-18010i199003-199512

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-18010i199003-199512

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-18010i199003-199512

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-10160i199003-199104

main69057-18010i199104-199405

main69057-18011i199405-199512

69503CYLINDER SET, LOCK

main69005-18010i199003-199104

main69005-18020i199104-199405

main69005-18021i199405-199512

69503AKEY, BLANK

main90999-00163i199003-199512

main90999-00164i199003-199512

69555COVER, KEY

main69555-17020i199003-199512

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040i199003-199512

main69759-30050i199003-199512

9011906644

main90119-06644

9165140616

main91651-40616

10 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota SERA

This section contains 10 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota SERA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
