Toyota SERA — INSTRUMENT PANEL & GLOVE COMPARTMENT

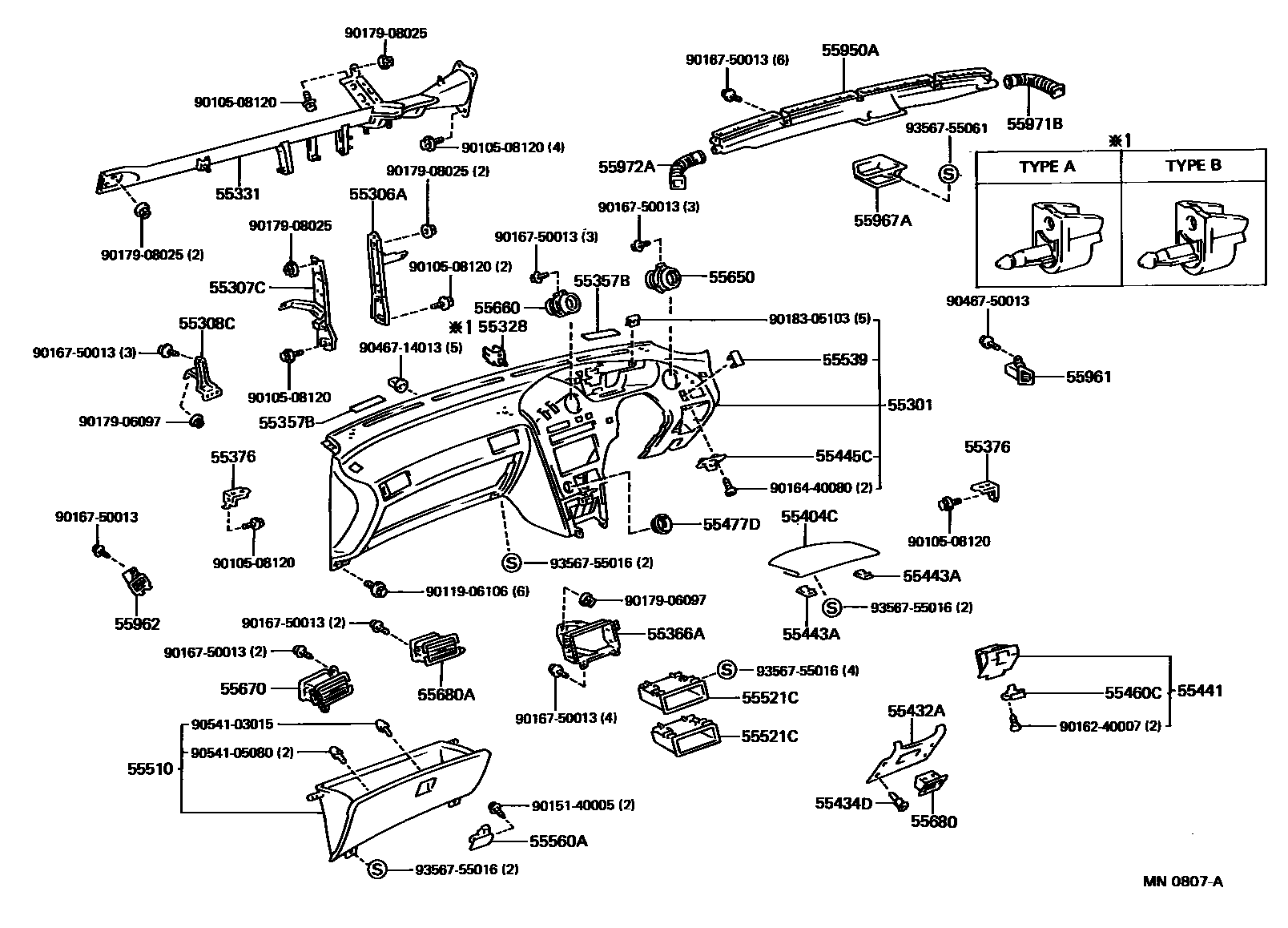

Parts diagram
55301PANEL SUB-ASSY, INSTRUMENT
main55301-18010-03i199003-199201
BLUE GRAY,TRIM1#
main55301-18010-05i199003-199201
GREIGE,TRIM4#
main55301-18011-B0i199206-199512
LIGHT GRAY,TRIM1#
main55301-18011-B1i199201-199206
BLUE GRAY,TRIM1#
main55301-18011-E0i199201-199206
GREIGE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-18010i199003-199512
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-18010i199003-199512
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-18010i199003-199512
55328PIN, INSTRUMENT PANEL, NO.1
main55328-14030i199003-199512
main55329-14030i199003-199512
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-18010i199003-199206
main55330-18011i199206-199512
55357BCUSHION, INSTRUMENT PANEL, NO.3
main55357-22010×2i199003-199205
55366ABRACKET, RADIO MOUNTING, NO.1
main86201-18010i199003-199512
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
main55376-18010×2i199003-199512
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
main55404-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55404-18010-05i199003-199206
GREIGE,TRIM4#
main55404-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
main55432-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55432-18010-05i199003-199206
GREIGE,TRIM4#
main55432-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
main90467-07073-13×4i199003-199206
BLUE GRAY,TRIM1#
main90467-07073-15×4i199003-199206
GREIGE,TRIM4#
main90467-07073-B4×4i199206-199512
SHADOW GRAY,TRIM1#
55441BOX, INSTRUMENT PANEL
main55440-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55440-18010-05i199003-199206
GREIGE,TRIM4#
main55440-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55443ACOVER, INSTRUMENT PANEL BOX DOOR
main55443-18010-03×2i199003-199206
BLUE GRAY,TRIM1#
main55443-18010-05×2i199003-199206
GREIGE,TRIM4#
main55443-18010-B0×2i199206-199512
LIGHT GRAY,TRIM1#
55445CPLATE, INSTRUMENT PANEL BOX
main55445-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55445-18010-05i199003-199206
GREIGE,TRIM4#
main55445-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55460CLOCK ASSY, INSTRUMENT PANEL BOX
main55460-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55460-18010-05i199003-199206
GREIGE,TRIM4#
main55460-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55477DCOVER, CIGARETTE LIGHTER HOLE
main55477-20090i199003-199512
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55550-18010-05i199003-199206
GREIGE,TRIM4#
main55550-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55521CCOVER, STEREO OPENING
main55521-18010i199003-199512
55539COVER, SPARE SWITCH HOLE
main55539-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55539-18010-05i199003-199206
GREIGE,TRIM4#
main55539-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
main55560-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55560-18010-05i199003-199206
GREIGE,TRIM4#
main55560-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55650-18010-05i199003-199206
GREIGE,TRIM4#
main55650-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55650-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55650-18010-05i199003-199206
GREIGE,TRIM4#
main55650-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55670-18010-05i199003-199206
GREIGE,TRIM4#
main55670-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
main55680-17050-03i199003-199206
BLUE GRAY,TRIM1#
main55680-17050-05i199003-199206
GREIGE,TRIM4#
main55680-17050-22i199405-199512
BLACK,TRIM1#
main55680-17050-B0i199206-199405
LIGHT GRAY,TRIM1#
55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4
main55680-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55680-18010-05i199003-199206
GREIGE,TRIM4#
main55680-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55950ANOZZLE ASSY, DEFROSTER
main55950-18010i199003-199512
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55961-18010-05i199003-199206
GREIGE,TRIM4#
main55961-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-18010-03i199003-199206
BLUE GRAY,TRIM1#
main55962-18010-05i199003-199206
GREIGE,TRIM4#
main55962-18010-B0i199206-199512
LIGHT GRAY,TRIM1#
55967ANOZZLE, DEFROSTER, LOWER
main55967-18010i199003-199512
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
main55971-18010i199003-199512
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
main55972-18010i199003-199512
9010508120
main90105-08120
9011906106
main90119-06106
9015140005
main90151-40005
9016240007
main90162-40007
9016440080
main90164-40080
9016750013
main90167-50013
9017906097
main90179-06097
9017908025
main90179-08025
9018305103
main90183-05103
9046714013
main90467-14013
9046750013
main90467-50013
9054103015
main90541-03015
9054105080
main90541-05080
9356755016
main93567-55016
9356755061
main93567-55061

47 parts on this diagram · 1 diagram in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota SERA

This section contains 47 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota SERA. Key components include: PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER, PIN, INSTRUMENT PANEL, NO.1.
