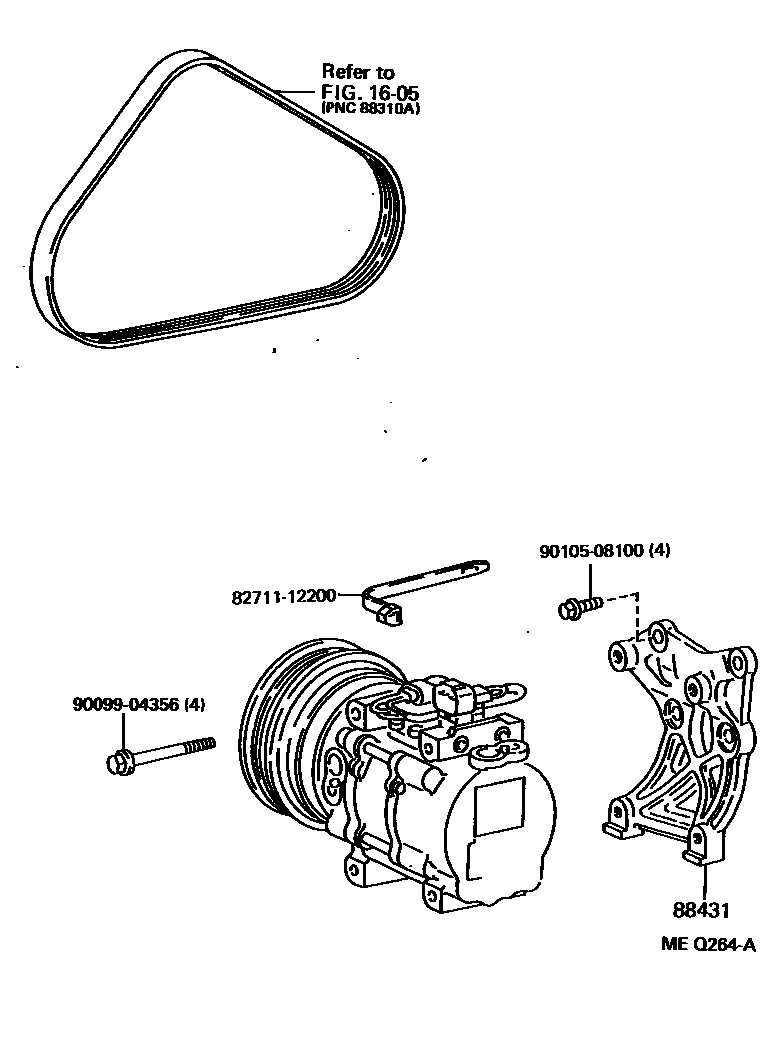

Toyota SERA — HEATING & AIR CONDITIONING - COMPRESSOR

1605V-BELT

→ Go to FIG 16-05

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16040i199206-199312

main88431-16060i199003-199206

main88431-16090i199312-199512

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9009904356

main90099-04356

9010508100

main90105-08100

5 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota SERA

This section contains 16 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota SERA. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH).
