Toyota SERA — FUEL INJECTION SYSTEM

0001 1 0002 1

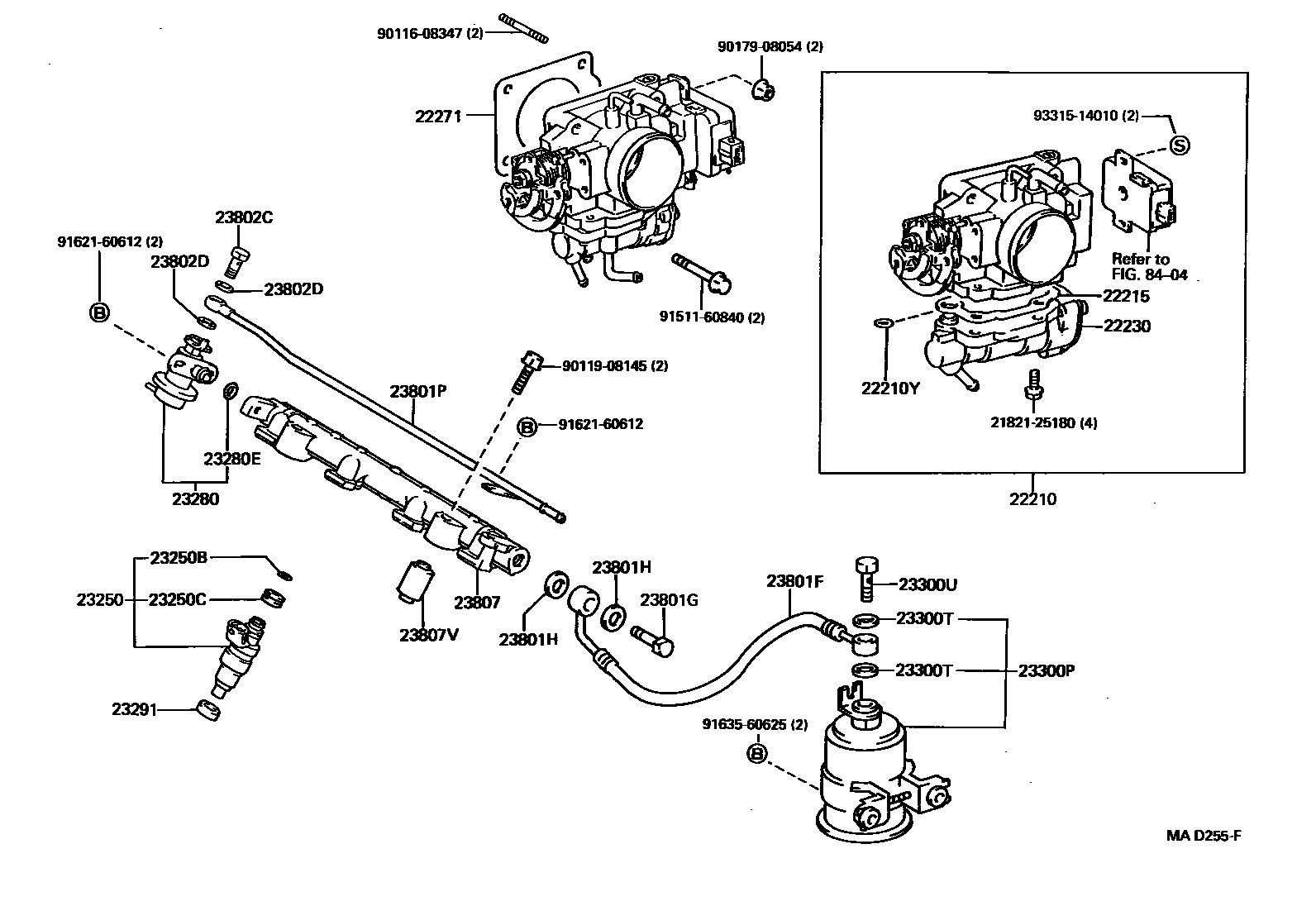

22210BODY ASSY, THROTTLE

main22210-11140i5EFHE..EXY10..MTM199003-199206

main22210-11150i5EFHE..EXY10..ATM199003-199206

main22210-11360i5EFHE..EXY10..MTM199206-199512

main22210-11370i5EFHE..EXY10..ATM199206-199512

sub22210-11280

22210YRING, O(FOR AIR TUBE)

main96711-19009i5EFHE..EXY10199003-199512

22215GASKET, THROTTLE BODY COVER

main22215-11110i5EFHE..EXY10199003-199512

22230VALVE ASSY, AUXILIARY AIR

main22230-11080i5EFHE..EXY10..ATM199003-199512

main22230-11100i5EFHE..EXY10..MTM199003-199512

22271GASKET, THROTTLE BODY

main22271-11020i5EFHE..EXY10199003-199407

main22271-11030i5EFHE..EXY10199407-199512

23250INJECTOR ASSY, FUEL

main23209-11070×4i5EFHE..EXY10199003-199512

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i5EFHE..EXY10199003-199512

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i5EFHE..EXY10199003-199512

23280REGULATOR ASSY, FUEL PRESSURE

main23280-11040i5EFHE..EXY10199003-199512

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i5EFHE..EXY10199003-199512

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i5EFHE..EXY10199003-199512

23300PFILTER, FUEL(FOR EFI)

main23300-19255i5EFHE..EXY10199003-199405

main23300-19395i5EFHE..EXY10199405-199512

23300TGASKET(FOR FUEL FILTER)

main90430-12005×2i5EFHE..EXY10199003-199405

main90430-12026×2i5EFHE..EXY10199405-199512

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i5EFHE..EXY10199003-199512

23801FHOSE, FUEL, NO.1

main90923-01372i5EFHE..EXY10199003-199512

sub23271-11300

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12029i5EFHE..EXY10199003-199511

main90401-12033i5EFHE..EXY10199511-199512

23801HGASKET(FOR FUEL PIPE)

main23279-74010×2i5EFHE..EXY10199511-199512

main90430-12005×2i5EFHE..EXY10199003-199011

main90430-12026×2i5EFHE..EXY10199011-199511

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-11050i5EFHE..EXY10199003-199008

main23801-11070i5EFHE..EXY10199008-199512

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i5EFHE..EXY10199305-199512

main90401-08010i5EFHE..EXY10199003-199305

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08005×2i5EFHE..EXY10199003-199011

main90430-08012×2i5EFHE..EXY10199011-199305

main90430-08014×2i5EFHE..EXY10199305-199512

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-11030i5EFHE..EXY10199003-199512

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23890-11010×2i5EFHE..EXY10199003-199512

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9011608347

main90116-08347

9011908145

main90119-08145

9017908054

main90179-08054

9151160840

main91511-60840

9162160612

main91621-60612

9163560625

main91635-60625

9331514010

main93315-14010

31 parts on this diagram · 2 diagrams in section
