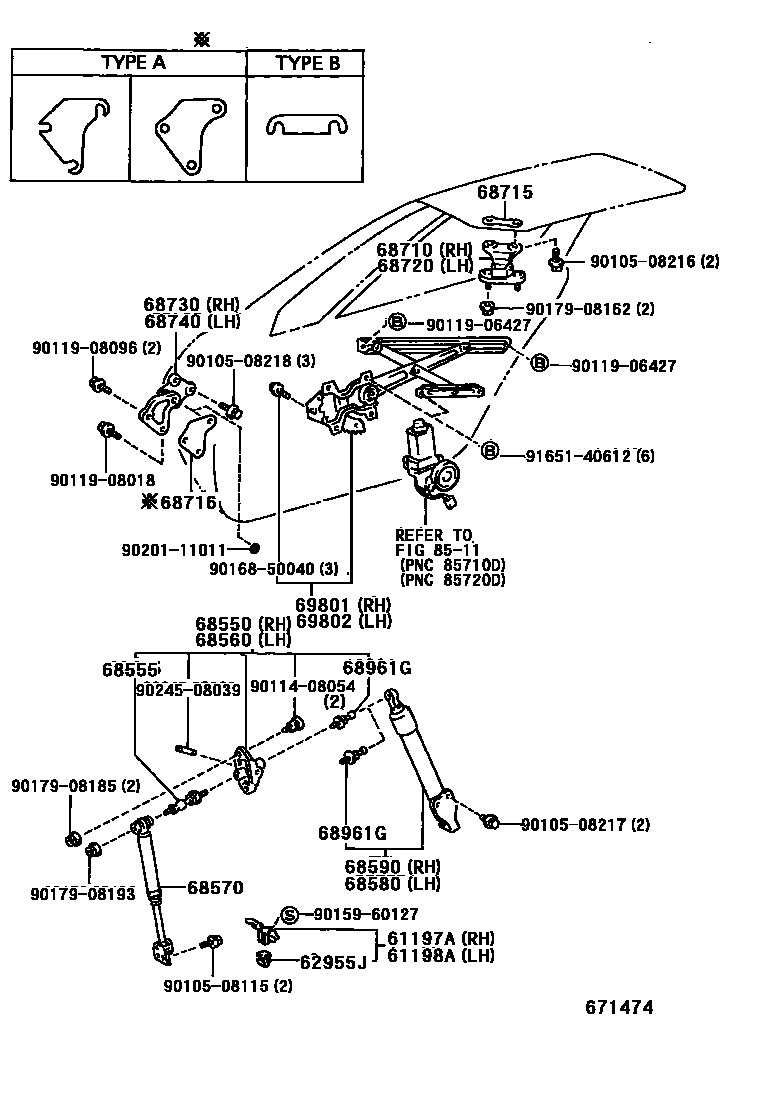

Toyota SERA — FRONT DOOR WINDOW REGULATOR & HINGE
61197ACOVER, FRONT PILLAR, RH
WINE RED MICA,3J8
DARK GRAY M.M,188
MED. BLUE M.M,8H7
LT, TURQUOISE M.M,743
GRENISH YELLOW M. M,569
SILVER O.P.M.,189
BLACK,202
ORANGE,3K6
TURQUOISE M.M,746
LT.BLUE M,8G6
61198ACOVER, FRONT PILLAR, LH
WINE RED MICA,3J8
DARK GRAY M.M.,188
MED. BLUE M.M.,8H7
LT. TURQUOISE M.M,,743
GRENISH YELLOW M.M,569
SILVER O.P.M,189
BLACK,202
ORANGE,3K6
RED,3E6
TURQUOISE M.M,746
LT.BLUE M,8G6
62955JRETAINER, FRONT PILLAR COVER
68550LINK ASSY, DOOR STAY, RH
68555BOLT, DOOR STAY
68560LINK ASSY, DOOR STAY, LH
68590STAY ASSY, DOOR BALANCER, RH
68710HINGE ASSY, FRONT DOOR, UPPER RH
68715PLATE, FRONT DOOR HINGE, UPPER
68716PLATE, FRONT DOOR HINGE, LOWER
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
68961GBOLT, BACK DOOR STAY
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
8511DOOR MOTOR & DOOR SOLENOID
9010508115
main90105-08115
9010508216
main90105-08216
9010508217
main90105-08217
9010508218
main90105-08218
9011408054
main90114-08054
9011906427
main90119-06427
9011908018
main90119-08018
9011908096
main90119-08096
9015960127
main90159-60127
9016850040
main90168-50040
9017908162
main90179-08162
9017908185
main90179-08185
9017908193
main90179-08193
9020111011
main90201-11011
9024508039
main90245-08039
9165140612
main91651-40612
35 parts on this diagram · 1 diagram in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota SERA
This section contains 35 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota SERA. Key components include: COVER, FRONT PILLAR, RH, COVER, FRONT PILLAR, LH, RETAINER, FRONT PILLAR COVER, LINK ASSY, DOOR STAY, RH, BOLT, DOOR STAY.
