Toyota SERA — FRONT DOOR LOCK & HANDLE

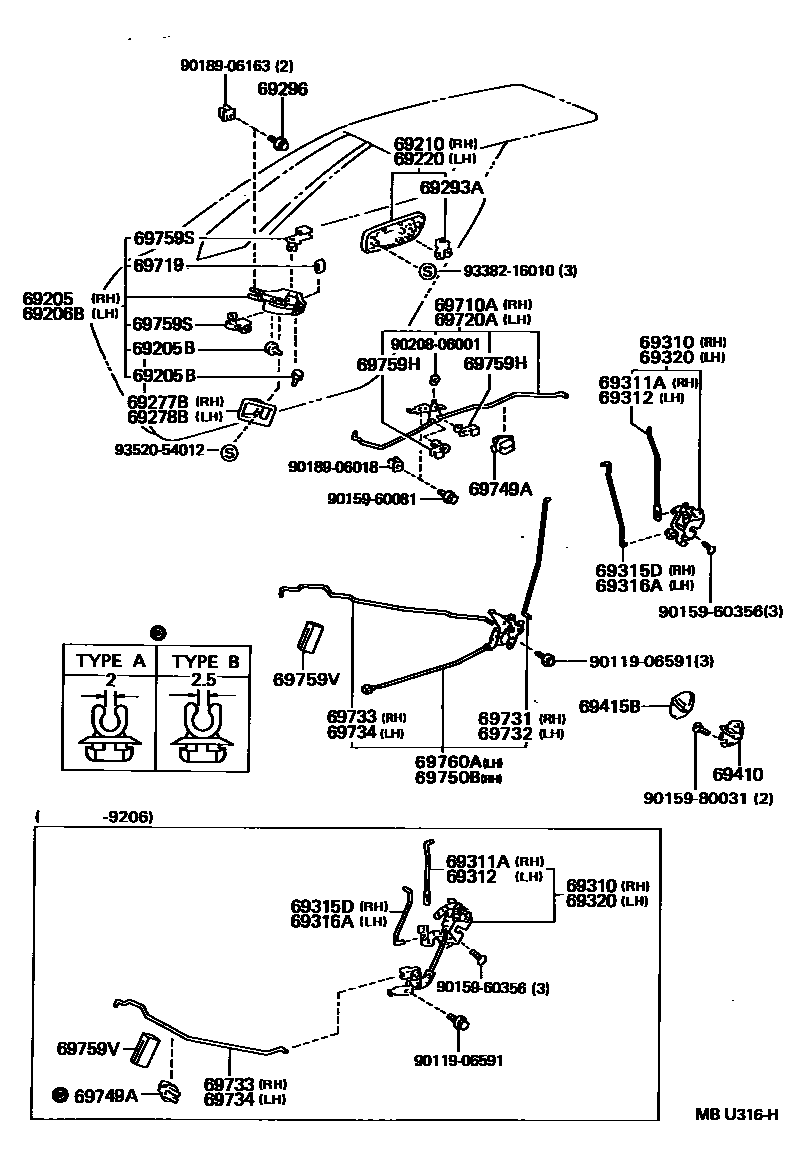

Parts diagram
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-18010-03i199003-199011
BLUE GRAY,TRIM1#
main69205-18010-05i199003-199011
GREIGE,TRIM4#
main69205-18011-03i199105-199206
BLUE GRAY,TRIM1#
main69205-18011-05i199105-199206
GRAYIGE,TRIM4#
main69205-18011-B0i199206-199512
LIGHT GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04018×2i199003-199011
main90541-04020×2i199003-199011
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-18010-03i199003-199011
BLUE GRAY,TRIM1#
main69206-18010-05i199003-199011
GREIGE,TRIM4#
main69206-18011-03i199011-199206
BLUE GRAY,TRIM1#
main69206-18011-05i199011-199206
GRAIGE,TRIM4#
main69206-18011-B0i199206-199512
LIGHT GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-18010-02i199003-199105
WINE RED MICA,3J8
main69210-18010-03i199003-199105
DARK GRAY M,188
main69210-18010-04i199003-199206
MED BLUE M,8H7
main69210-18010-07i199003-199105
L. TURQUOISE M,743
main69210-18010-09i199003-199206
GRENISH YELLOW M,569
main69210-18010-13i199003-199512
L. SILVER,189
main69210-18010-22i199105-199512
BLACK,202
main69210-18010-36i199105-199206
ORANGE MICA,3K6
main69210-18010-D0i199206-199512
RED,3E6
main69210-18010-G0i199211-199212
main69210-18010-H0i199206-199512
TURQUOISE M.M,746
main69210-18010-J0i199105-199206
LT.BLUE M,8G6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-18010-02i199003-199105
WINE RED MICA,3J8
main69220-18010-03i199003-199105
DARK GRAY M,188
main69220-18010-04i199003-199206
MED BLUE M,8H7
main69220-18010-07i199003-199105
L. TURQUOISE M,743
main69220-18010-09i199003-199206
GRENISH YELLOW M,569
main69220-18010-13i199003-199512
L. SILVER,189
main69220-18010-22i199105-199512
BLACK,202
main69220-18010-36i199105-199206
ORANGE MICA,3K6
main69220-18010-D0i199206-199512
RED,3E6
main69220-18010-G0i199211-199212
main69220-18010-H0i199206-199512
TURQUOISE M.M,746
main69220-18010-J0i199105-199206
LT.BLUE M,8G6
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69297-22020-03i199003-199206
BLUE GRAY,TRIM1#
main69297-22020-05i199003-199206
GREIGE,TRIM4#
main69297-22020-B0i199206-199512
LIGHT GRAY,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69298-22020-03i199003-199206
BLUE GRAY,TRIM1#
main69298-22020-05i199003-199206
GREIGE,TRIM4#
main69298-22020-B0i199206-199512
LIGHT GRAY,TRIM1#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12050i199003-199512
main69293-12060i199003-199512
69296SCREW, DOOR INSIDE HANDLE
main69296-17010×4i199003-199512
69310LOCK ASSY, FRONT DOOR, RH
main69310-18010i199003-199011
main69310-18011i199011-199206
main69310-18012i199206-199512
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-18010i199003-199512
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-18010i199003-199512
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
main69315-18010i199003-199512
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
main69316-18010i199003-199512
69320LOCK ASSY, FRONT DOOR, LH
main69320-18010i199003-199011
main69320-18011i199011-199206
main69320-18012i199206-199512
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-18010×2i199003-199206
main69410-18011×2i199206-199512
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-50010×2i199003-199512
69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH
main69710-18010i199003-199011
main69710-18011i199011-199512
69719CUSHION, DOOR LOCK CONTROL
main69719-22010×2i199003-199104
69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH
main69720-18010i199003-199011
main69720-18011i199011-199512
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
main69731-18010i199206-199512
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
main69732-18010i199206-199512
69733LINK, FRONT DOOR INSIDE LOCKING, RH
main69733-18010i199003-199512
69734LINK, FRONT DOOR INSIDE LOCKING, LH
main69734-18010i199003-199206
main69734-18011i199206-199512
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
main69749-18020×2i199011-199512
TYPEB
main69749-50010×2i199003-199512
TYPEA
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-18010i199206-199512
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
main69759-20140×2i199104-199512
main69759-20170×2i199104-199512
main69759-20190×2i199011-199104
main69759-20200×2i199011-199104
main69759-24080×2i199003-199011
main69759-24090×2i199003-199011
69759SSNAP, FRONT DOOR INSIDE HANDLE
main69759-14050×2i199003-199011
PINK
main69759-24070×2i199003-199011
69759VSILENCER, FRONT DOOR LOCK LINK
main69759-30021×2i199003-199512
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
main69120-18010i199206-199512
9011906591
main90119-06591
9015960081
main90159-60081
9015960356
main90159-60356
9015980031
main90159-80031
9018906018
main90189-06018
9018906163
main90189-06163
9020806001
main90208-06001
9338216010
main93382-16010
9352054012
main93520-54012

39 parts on this diagram · 1 diagram in section
