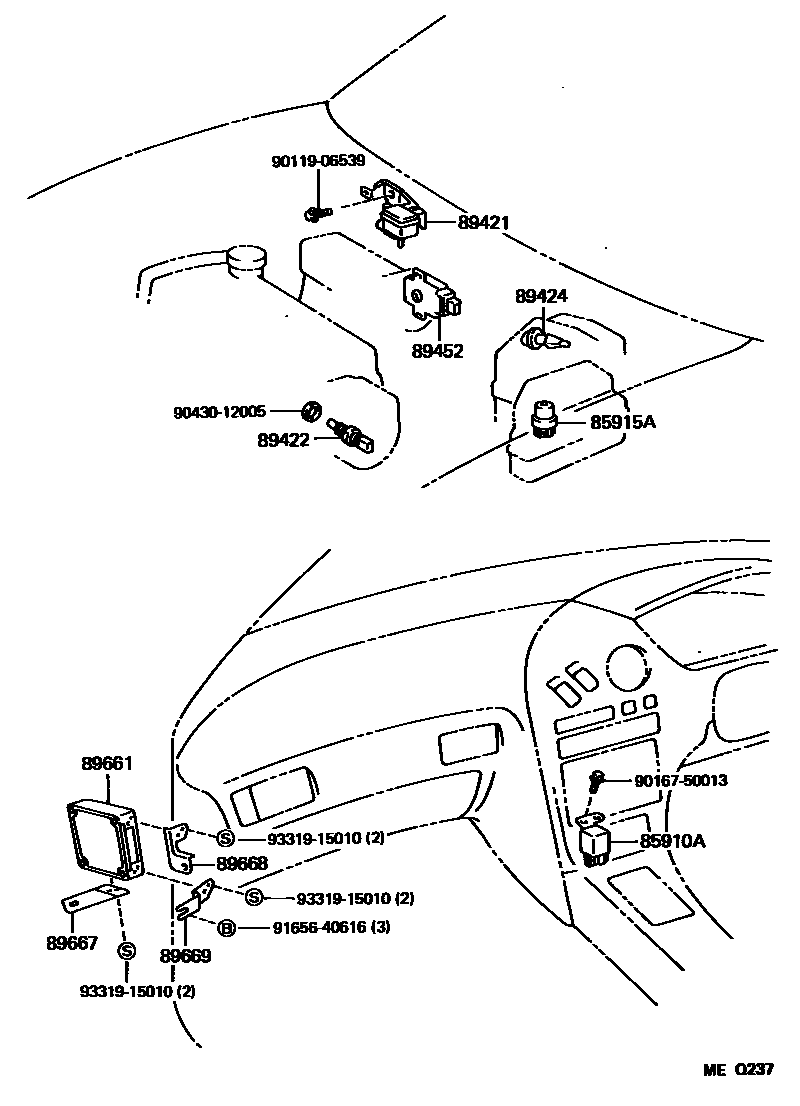

Toyota SERA — ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-18010i199003-199512

85915ARELAY, MAIN

main90987-02004i199003-199206

main90987-02009i199206-199512

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-18010i199003-199512

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010i199003-199512

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010i199003-199512

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12060i199206-199512

main89452-14020i199003-199206

89661COMPUTER, ENGINE CONTROL

main89661-18010i199003-199105

main89661-18020i199105-199206

main89661-18030i199206-199512

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-18010i199003-199512

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-18011i199003-199512

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-18010i199003-199512

9011906539

main90119-06539

9016750013

main90167-50013

9043012005

main90430-12005

9165640616

main91656-40616

9331915010

main93319-15010

15 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota SERA

This section contains 15 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota SERA. Key components include: RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, MAIN, SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, WATER TEMPERATURE (FOR E.F.I.), SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.).
