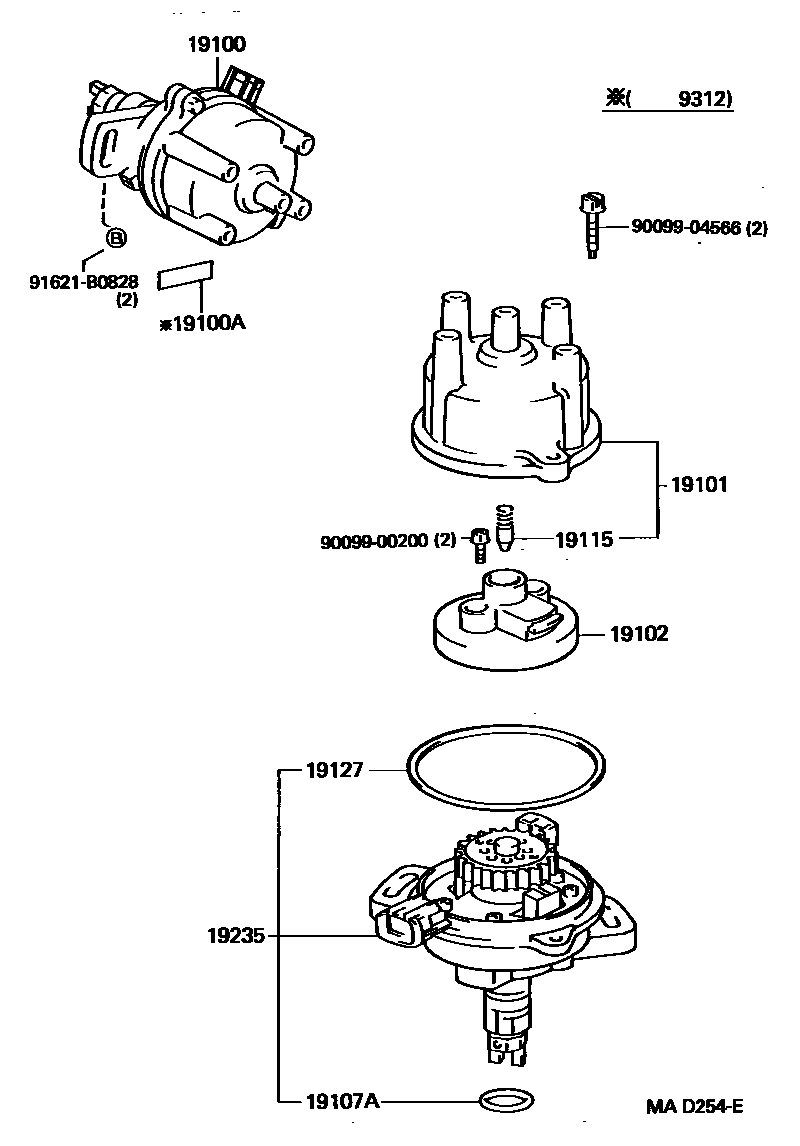

Toyota SERA — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19100-11070i5EFHE..EXY10199003-199206

main19100-11080i5EFHE..EXY10199206-199512

19100ATAPE, SEALING

main90919-24004i5EFHE..EXY10199003-199312

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11070i5EFHE..EXY10199003-199206

main19101-11080i5EFHE..EXY10199206-199512

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-74040i5EFHE..EXY10199003-199512

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i5EFHE..EXY10199003-199512

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i5EFHE..EXY10199003-199512

19127PACKING, DUST PROOF

main19127-74040i5EFHE..EXY10199003-199512

19235HOUSING, DISTRIBUTOR

main19235-11070i5EFHE..EXY10199003-199512

9009900200

main90099-00200

9009904566

main90099-04566

91621B0828

main91621-B0828

11 parts on this diagram · 1 diagram in section
