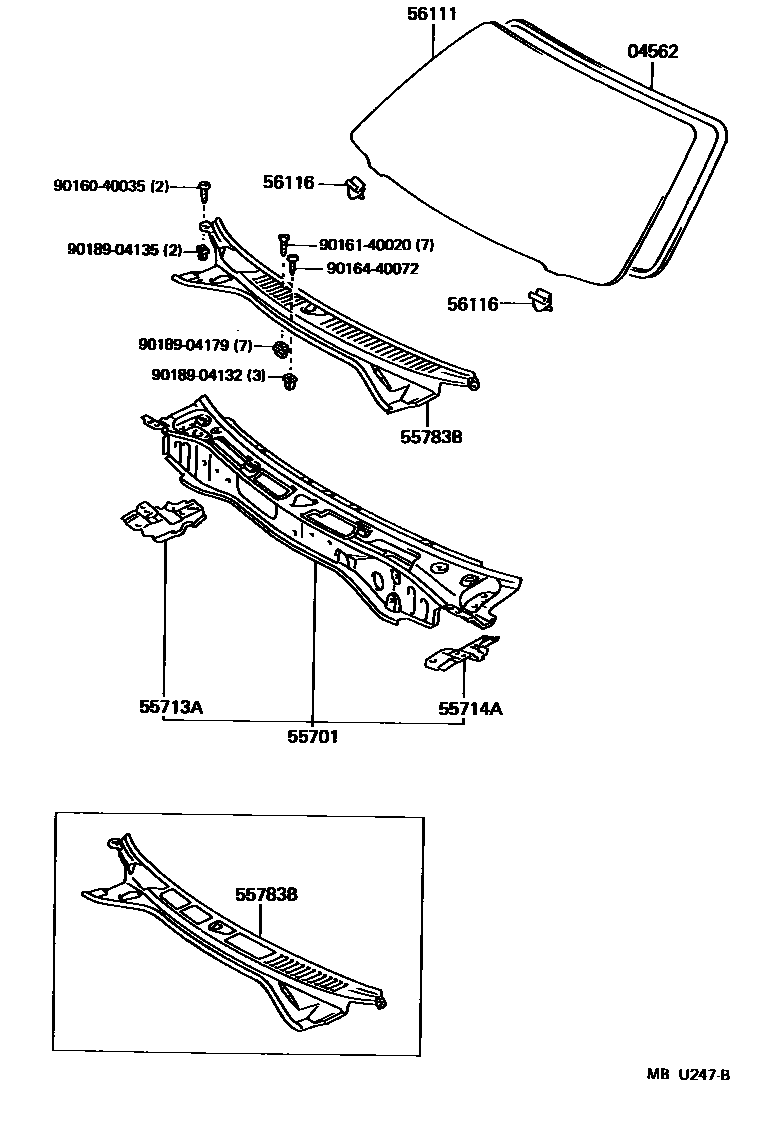

Toyota SERA — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-18010iEXY10199003-199512

55701PANEL SUB-ASSY, COWL

main55700-18010iEXY10199003-199512

55713APANEL, COWL TOP SIDE, RH

main55713-18010iEXY10199003-199512

55714APANEL, COWL TOP SIDE, LH

main55714-18010iEXY10199003-199512

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-18010iEXY10199003-199512

main55708-18020iEXY10199003-199512

56111GLASS, WINDSHIELD

main56111-18010iEXY10199003-199512

main56111-18020iEXY10199003-199512

56116SPACER, WINDSHIELD GLASS

main56116-20050×2iEXY10199003-199512

WHITE

main56116-20070×2iEXY10199008-199512

main56116-20080×2iEXY10199003-199512

main56116-20090×2iEXY10199003-199008

9016040035

main90160-40035

9016140020

main90161-40020

9016440072

main90164-40072

9018904132

main90189-04132

9018904135

main90189-04135

9018904179

main90189-04179

13 parts on this diagram · 1 diagram in section
