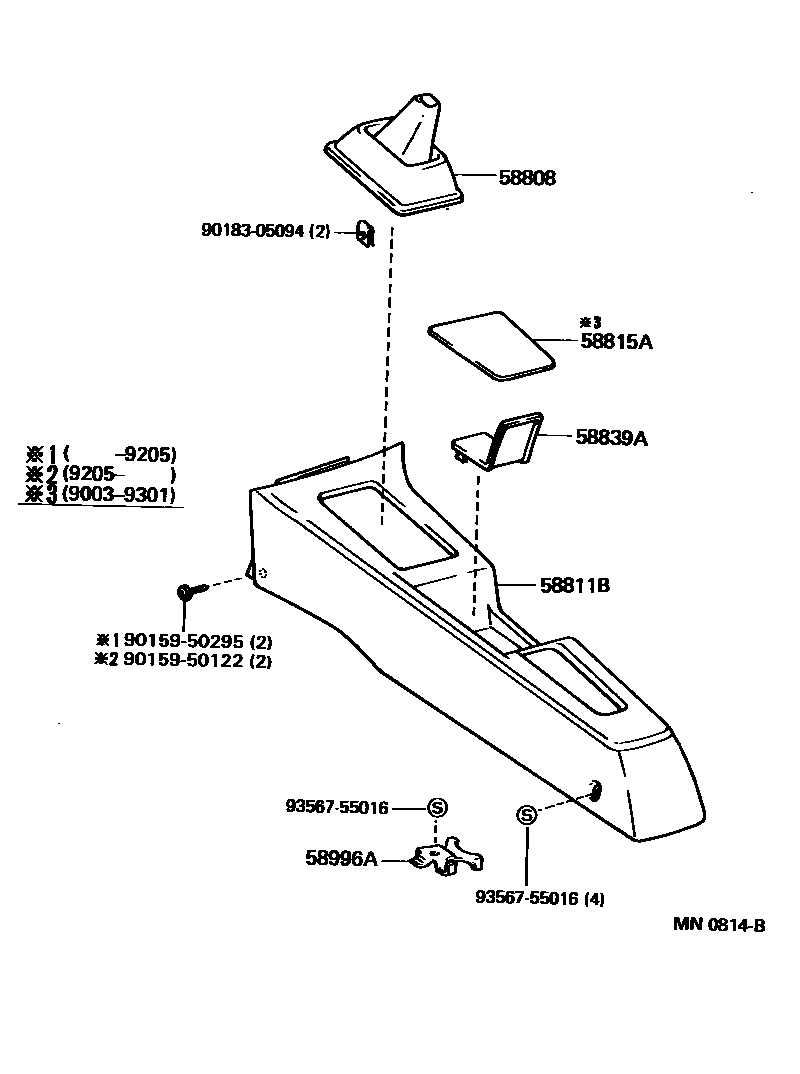

Toyota SERA — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-18010-03iEXY10..MTM199003-199206

BLUE GRAY,TRIM1#

main58808-18010-05iEXY10..MTM199003-199206

GREIGE,TRIM4#

main58808-18010-B0iEXY10..MTM199206-199512

LIGHT GRAY,TRIM1#

58811BBOX, CONSOLE

main58811-18010-03iEXY10199003-199206

BLUE GRAY,TRIM1#

main58811-18010-05iEXY10199003-199206

GREIGE,TRIM4#

main58811-18010-B1iEXY10199206-199512

LIGHT GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-18010-01iEXY10199003-199206

BLACK,TRIM1#,4#

58839ACOVER, CONSOLE BOX HOLE

main58839-18010-03iEXY10199003-199206

BLUE GRAY,TRIM1#

main58839-18010-05iEXY10199003-199206

GREIGE,TRIM4#

main58839-18010-B0iEXY10199206-199512

LIGHT GRAY,TRIM1#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-18010iEXY10199003-199512

9015950122

main90159-50122

9015950295

main90159-50295

9018305094

main90183-05094

9356755016

main93567-55016

9 parts on this diagram · 1 diagram in section
