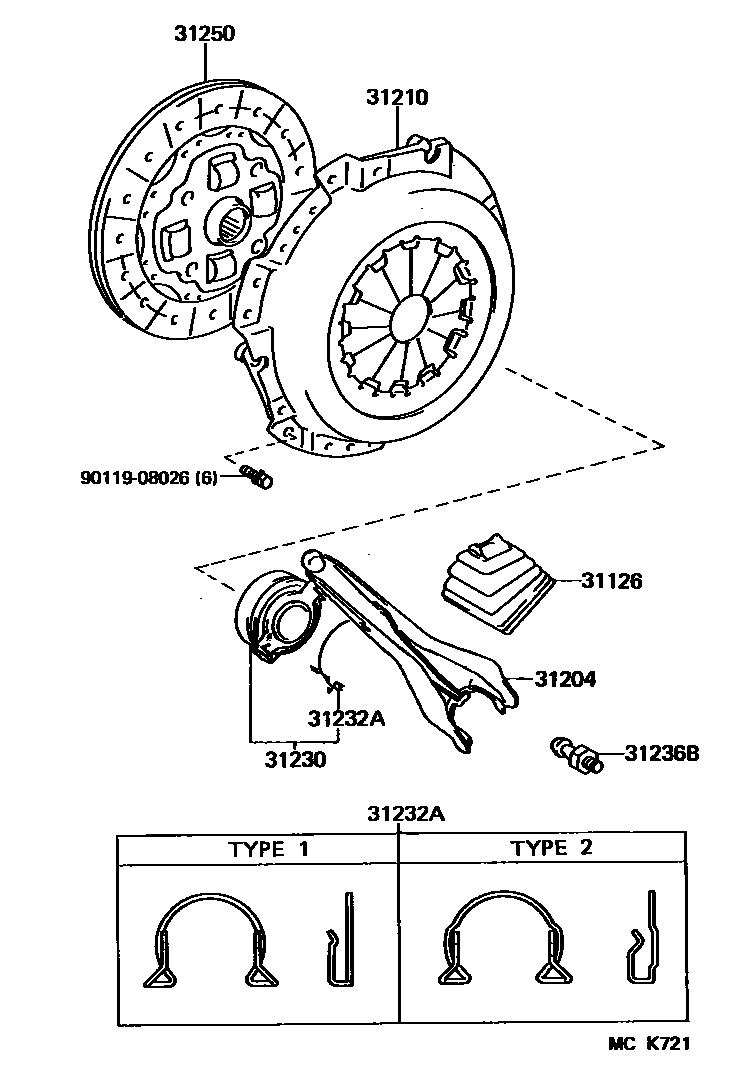

Toyota SERA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iEXY10..MTM199003-199512

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEXY10..MTM199003-199512

31210COVER ASSY, CLUTCH

main31210-12210iEXY10..MTM199104-199512

sub31210-12280

main31210-16102iEXY10..MTM199003-199104

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEXY10..MTM199003-199512

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEXY10..MTM199003-199512

TYPE 1

main31232-16031iEXY10..MTM199212-199512

31236BSUPPORT, RELEASE FORK

main31236-12011iEXY10..MTM199003-199512

31250DISC ASSY, CLUTCH

main31250-12200iEXY10..MTM199003-199006

main31250-12201iEXY10..MTM199006-199104

main31250-12290iEXY10..MTM199104-199509

main31250-12390iEXY10..MTM199511-199512

sub31250-12391

main31250-12400iEXY10..MTM199509-199511

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
