Toyota SERA — ANTENNA
86011MFILTER, NOISE
86101CORD SUB-ASSY, ANTENNA
8271124350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24350
9011908778
main90119-08778
9011908912
main90119-08912
9020219004
main90202-19004
6 parts on this diagram · 1 diagram in section

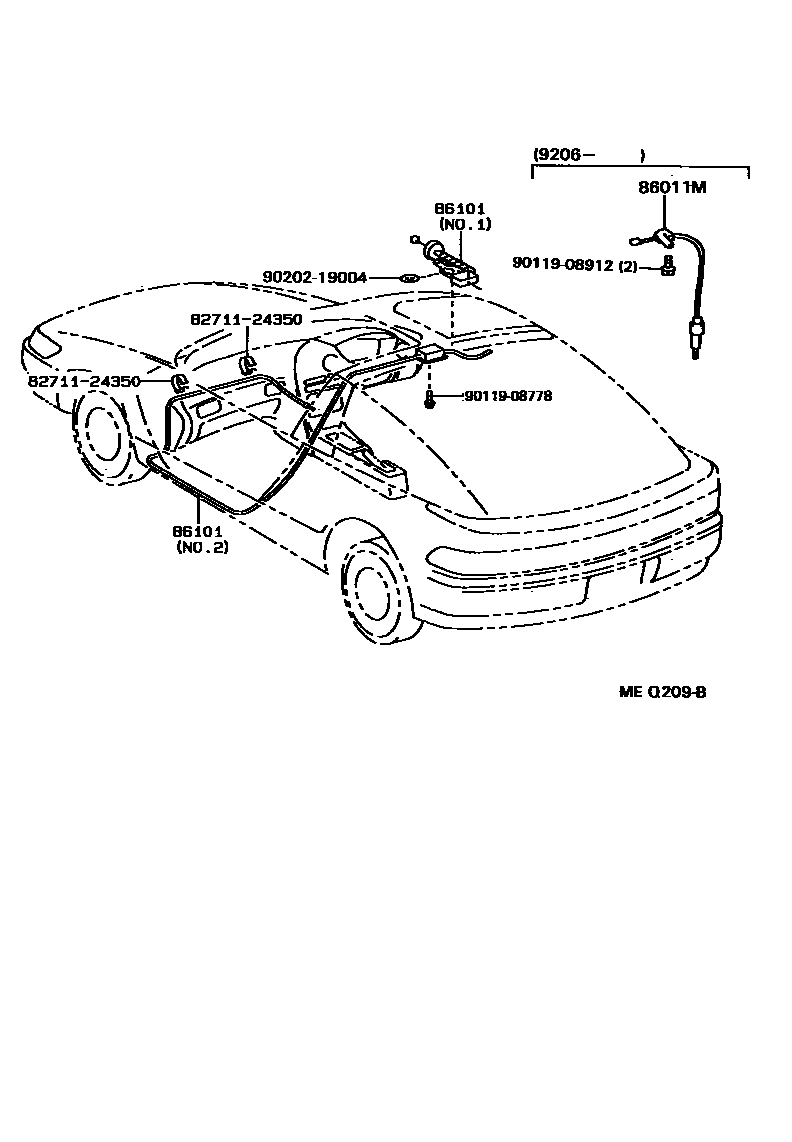

ANTENNA for Toyota SERA
This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota SERA. Key components include: FILTER, NOISE, CORD SUB-ASSY, ANTENNA, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
