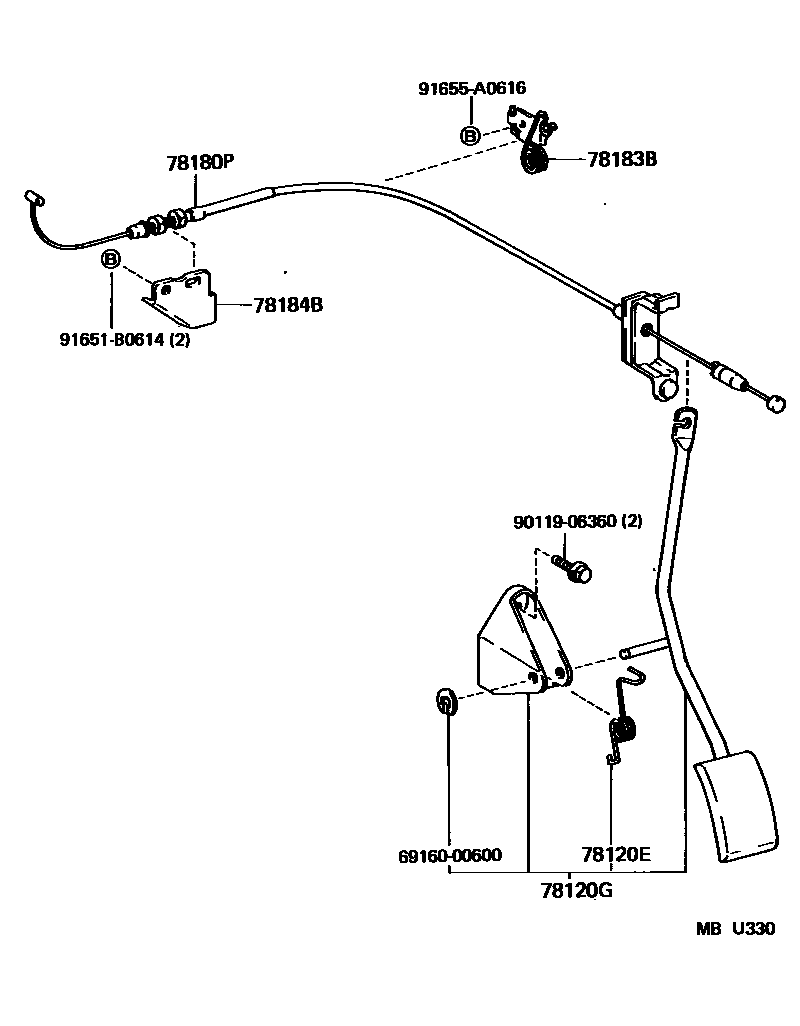

Toyota SERA — ACCELERATOR LINK

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-21005iEXY10199003-199512

78120GROD ASSY, ACCELERATOR PEDAL

main78120-10050iEXY10199003-199512

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-18010iEXY10199003-199512

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-18010iEXY10199003-199512

main78183-18020iEXY10199305-199512

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-10080iEXY10199003-199512

6916000600

main69160-00600

9011906360

main90119-06360

91651B0614

main91651-B0614

91655A0616

main91655-A0616

9 parts on this diagram · 1 diagram in section
