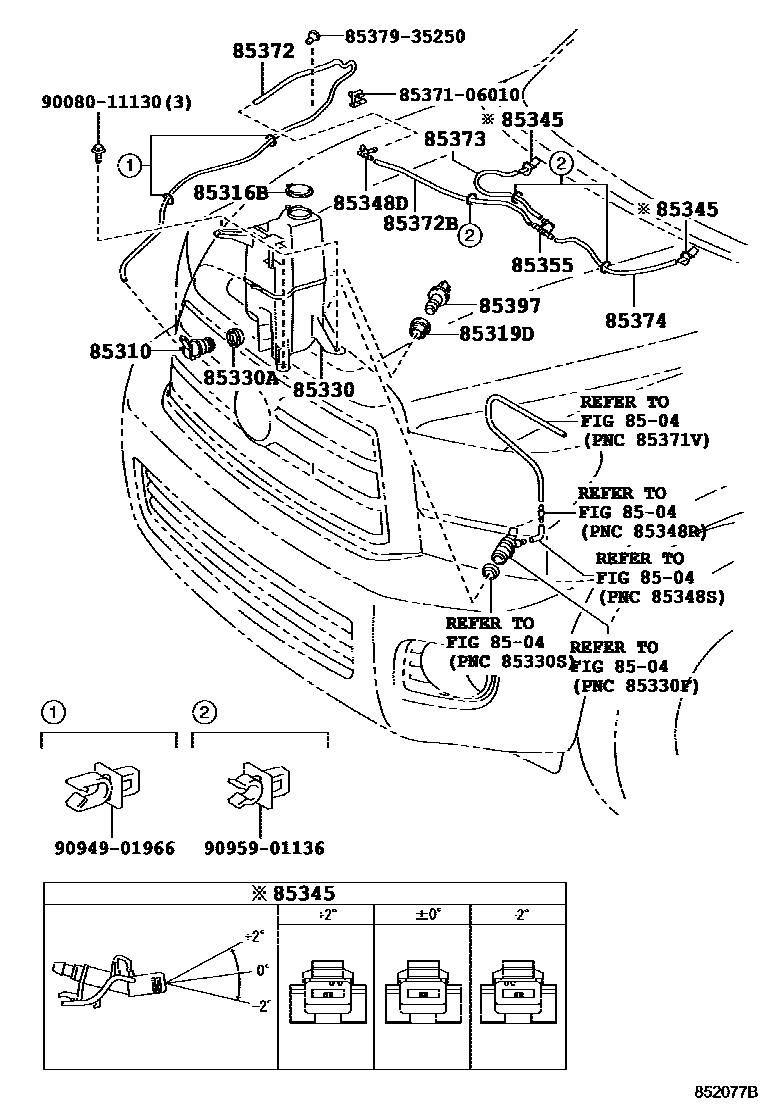

Toyota SEQUOIA — WINDSHIELD WASHER

0001 1 0002 1W(HEADLAMP CLEANER)

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190iUSK6#200711-201708

85316BCAP, WASHER, INLET

main85316-0C060iUSK6#..HTWC201708

85319DPACKING, FRONT WASHER

main85319-AA020iUCK6#200711-200904

85330JAR ASSY, WINDSHIELD WASHER

main85315-0C080iUSK6#..HTWC201708

main85315-0C090supersedes 85315-0C080iUSK6#..PLAT200711-201708

HEADLAMP CLEANER-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iUCK6#200711-200904

85345NOZZLE, WINDSHIELD WASHER

main85381-12330×2iUCK6#200711-200904

ANGLE 0

main85381-12340×2iUPK6#200711-201208

ANGLE -2

main85381-12350×2iUSK6#200711-201708

ANGLE +2

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-32220iUCK6#200711-200904

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iUCK6#200711-200904

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85376-0C020iUCK6#200711-200904

L=1495

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33033iUCK6#200711-200904

L=380

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-30027iUCK6#200711-200904

L=220

85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)

main90068-33096iUCK6#200711-200904

L=890

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040iUCK6#200711-200904

8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-06010

8537935250JOINT

main85379-35250

9008011130

main90080-11130

9094901966

main90949-01966

9095901136

main90959-01136

19 parts on this diagram · 2 diagrams in section
