Toyota SEQUOIA — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

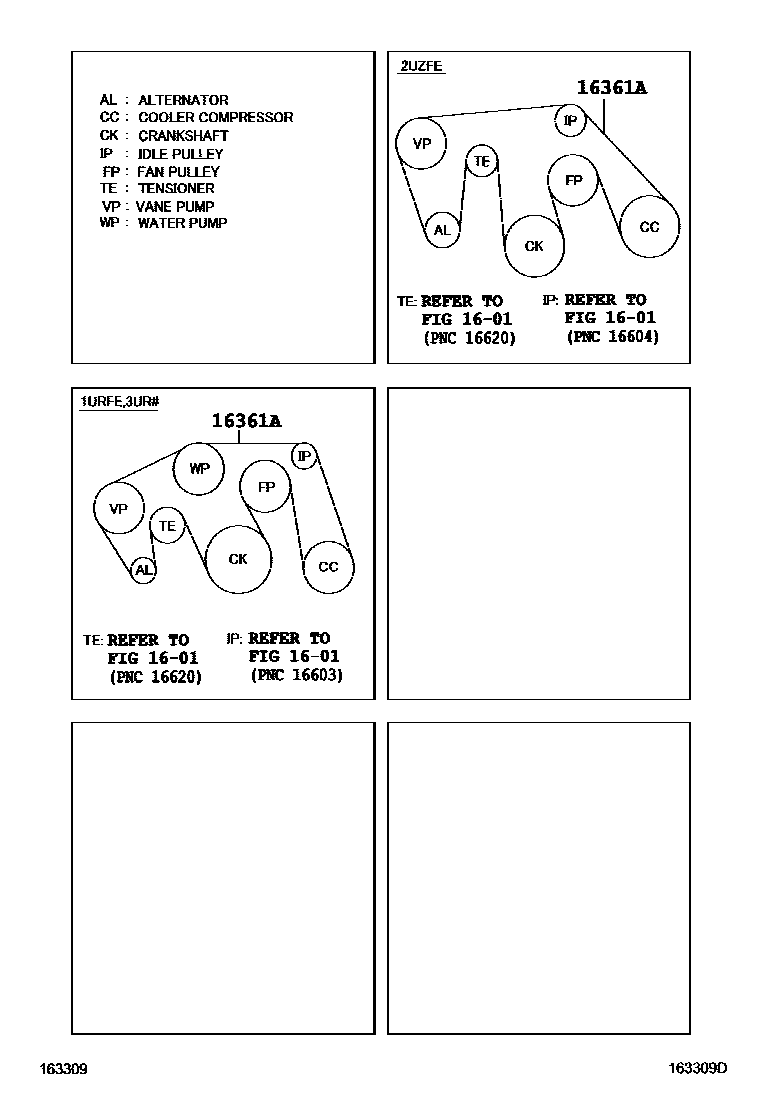

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02464i200711-200904

MITSUBOSHI OR BANDO

main90916-02680i200808-201707

(J)

main90916-02759i201707-201708

(J)

main90916-A2013i200711-200904

DAYCO

main90916-A2014i200711-200808

main90916-A2023i201108-201706

(L)

main90916-A2033i201707-201708

(L)

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota SEQUOIA

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota SEQUOIA. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
