Toyota SEQUOIA — STEERING WHEEL

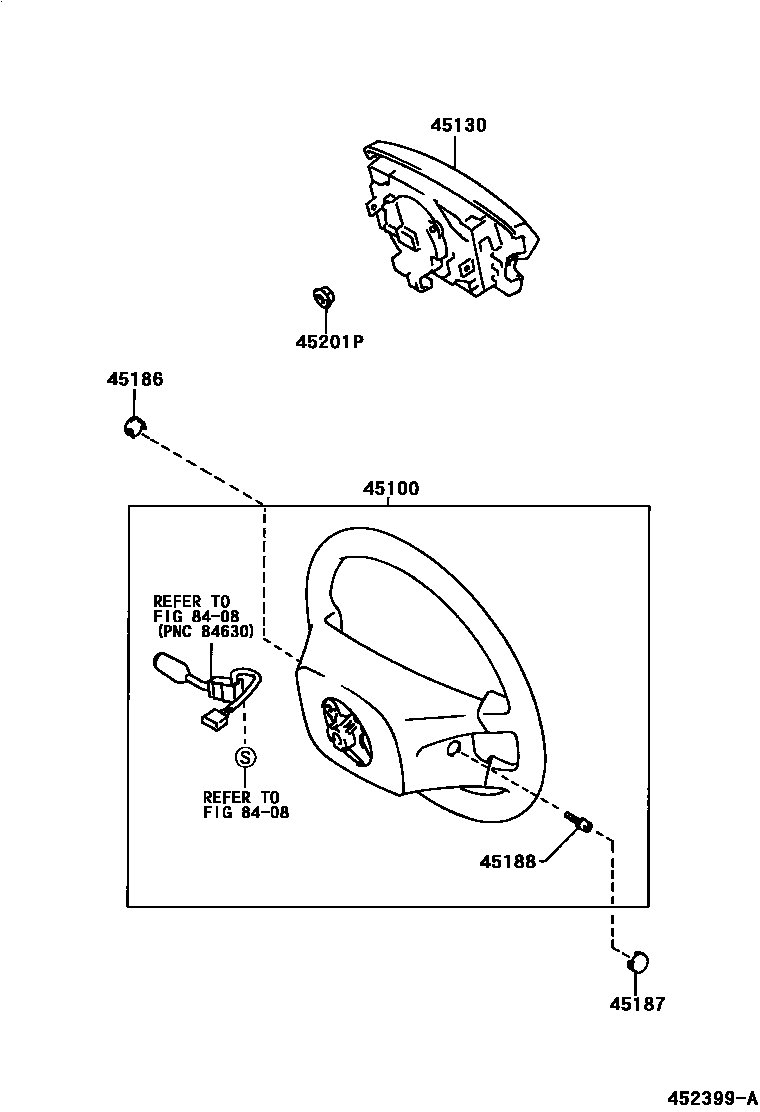

Parts diagram
45100WHEEL ASSY, STEERING
main45100-0C090-B0i200009-200209
4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#
main45100-0C090-E0i200009-200209
4-SPOKE,URETHANE,OAK,TRIM4#
main45100-0C100-B0i200009-200209
4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#
main45100-0C100-E0i200009-200209
4-SPOKE,LEATHER,OAK,TRIM4#
main45100-0C150-B0i200408-200409
4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#
main45100-0C150-E0i200209-200408
4-SPOKE,URETHANE,OAK,TRIM4#
main45100-0C150-E1i200408-200409
4-SPOKE,URETHANE,SANDAL WOOD,TRIM42,43
main45100-0C151-B0i200410
4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#
main45100-0C151-E1i200410
4-SPOKE,URETHANE,SANDAL WOOD,TRIM4#
main45100-0C180-B0i200209-200408
4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#
main45100-0C180-B1i200408-200409
4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#
main45100-0C180-E0i200209-200408
4-SPOKE,LEATHER,OAK,TRIM4#
main45100-0C180-E1i200408-200409
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
main45100-0C181-B1i200410
4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#
main45100-0C181-E1i200410
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
45130BUTTON ASSY, HORN
main45130-0C020-B0i200009-200108
DK.CHARCOAL,TRIM1#
main45130-0C020-E0i200009-200108
OAK,TRIM4#
main45130-0C021-B0i200108-200209
DK. CHARCOAL,TRIM1#
main45130-0C021-E0i200108-200209
OAK,TRIM4#
main45130-0C031-B0i200209-200408
DK.CHARCOAL,TRIM1#
main45130-0C031-E0i200209-200408
OAK,TRIM4#
main45130-0C041-B0i200209-200408
W(STEERING AUDIO SWITCH),DK.CHARCOAL,TRIM1#
main45130-0C041-E0i200209-200408
W(STEERING AUDIO SWITCH),OAK,TRIM4#
main45130-0C050-B0i200408
DK.CHARCOAL,TRIM1#
main45130-0C050-E0i200408
SANDAL WOOD,TRIM42,43
main45130-0C060-B0i200408
W(STEERING AUDIO SWITCH),DK.CHARCOAL,TRIM1#
main45130-0C060-E0i200408
W(STEERING AUDIO SWITCH),SANDAL WOOD,TRIM42,43
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-06070-B1i200009-200209
DK.CHARCOAL,TRIM1#
main45186-06070-E0i200009-200209
OAK,TRIM4#
main45186-0C020-B0i200209-200408
DK.CHARCOAL,TRIM1#
main45186-0C020-E0i200209-200408
OAK,TRIM4#
main45186-0C020-E2i200408
SANDAL WOOD,TRIM42,43
45187COVER, STEERING WHEEL, LOWER NO.3
main45186-06070-B1i200009-200209
DK.CHARCOAL,TRIM1#
main45186-06070-E0i200009-200209
OAK,TRIM4#
main45187-0C010-B0i200209-200408
DK.CHARCOAL,TRIM1#
main45187-0C010-E0i200209-200408
OAK,TRIM4#
main45187-0C010-E2i200408
SANDAL WOOD,TRIM42,43
45188SCREW, STEERING WHEEL PAD ATTACHING
main45188-07010×2i200009-200408
L=18.5
45201PNUT, STEERING WHEEL SET
main90179-12071i200009-200408
8408CRUISE CONTROL (AUTO DRIVE)
→ Go to FIG 84-08

7 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota SEQUOIA

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota SEQUOIA. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, SCREW, STEERING WHEEL PAD ATTACHING.
