Toyota SEQUOIA — STANDARD TOOL

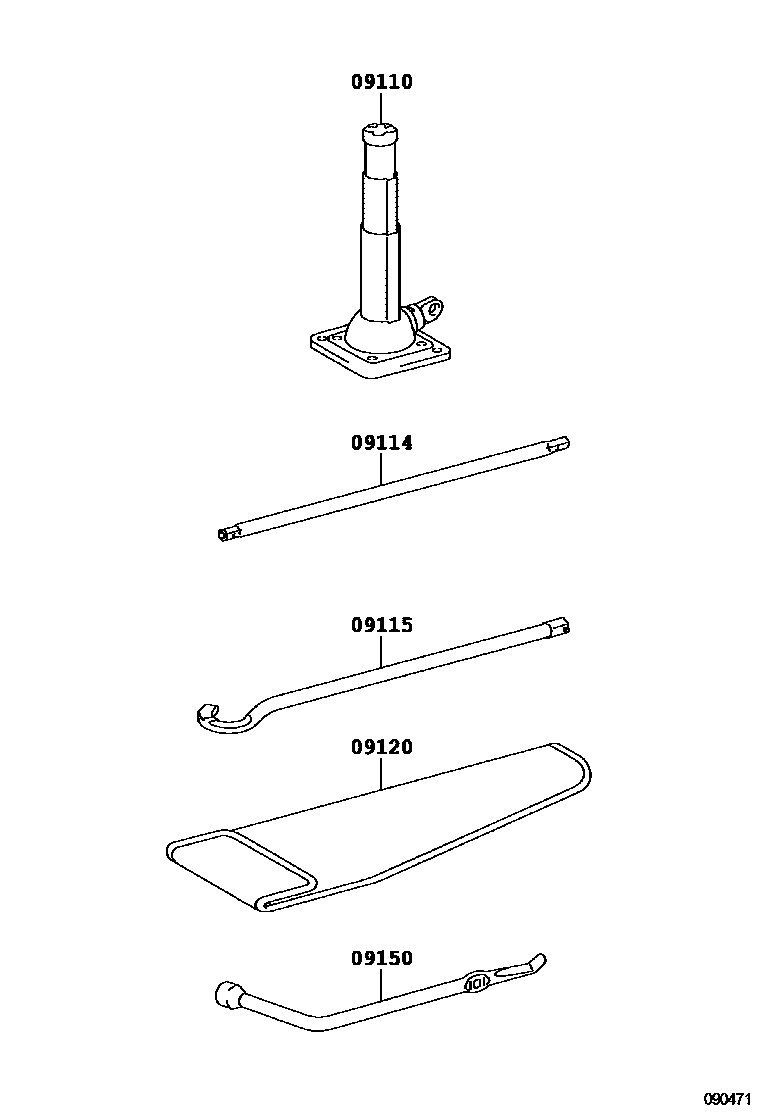

Parts diagram

09110JACK ASSY

main09111-0C060i200711-200904

main09111-0C061i200909-201208

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0C030i200711-200904

09115ROD SUB-ASSY, JACK HANDLE

main09115-0C030i200711-200904

09120BAG, TOOL

main09120-0C040i200711-200904

main09120-0C041i201412-201708

09150WRENCH, HUB NUT BOX

main09150-0C020i200711-201708

5 parts on this diagram · 1 diagram in section
