Toyota SEQUOIA — STANDARD TOOL

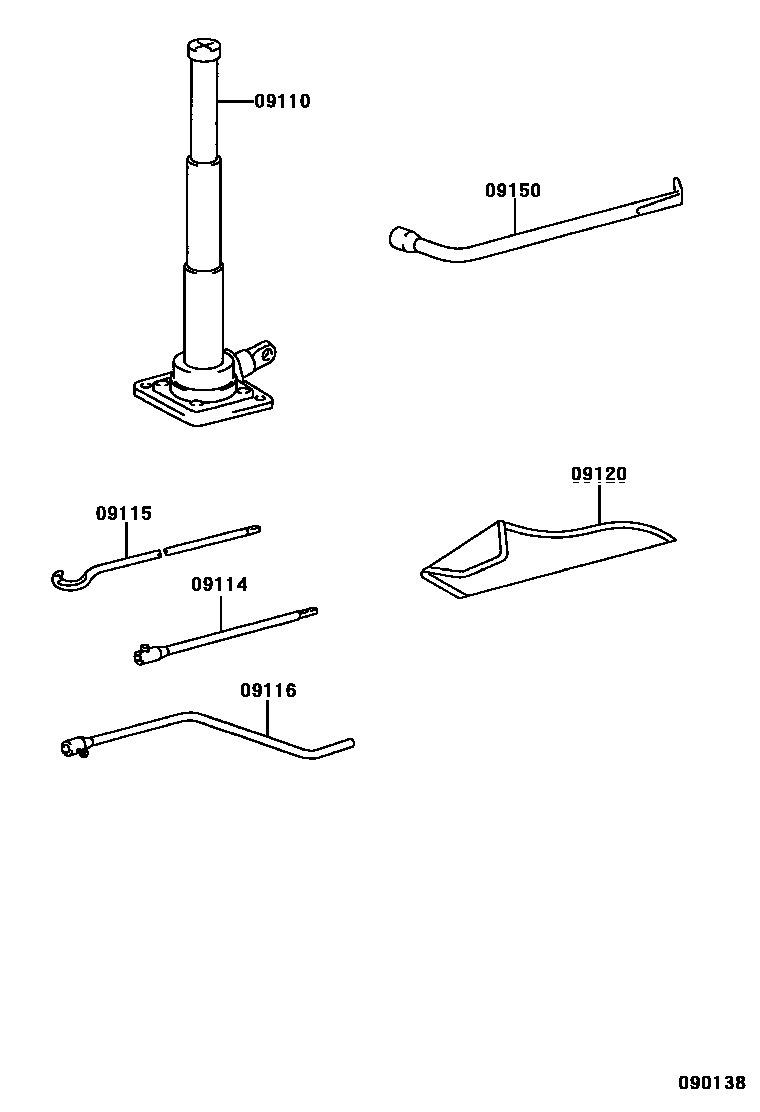

Parts diagram

09110JACK ASSY

main09111-0C030i200009-200306

main09111-0C031i200306-200408

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0C020i200009-200408

09115ROD SUB-ASSY, JACK HANDLE

main09115-0C020i200009-200408

09116LEVER, JACK HANDLE

main09116-0C010i200009-200408

09120BAG, TOOL

main09120-0C010i200706

main09120-0C020i200009-200408

09150WRENCH, HUB NUT BOX

main09150-AD020i200009-200408

6 parts on this diagram · 1 diagram in section
