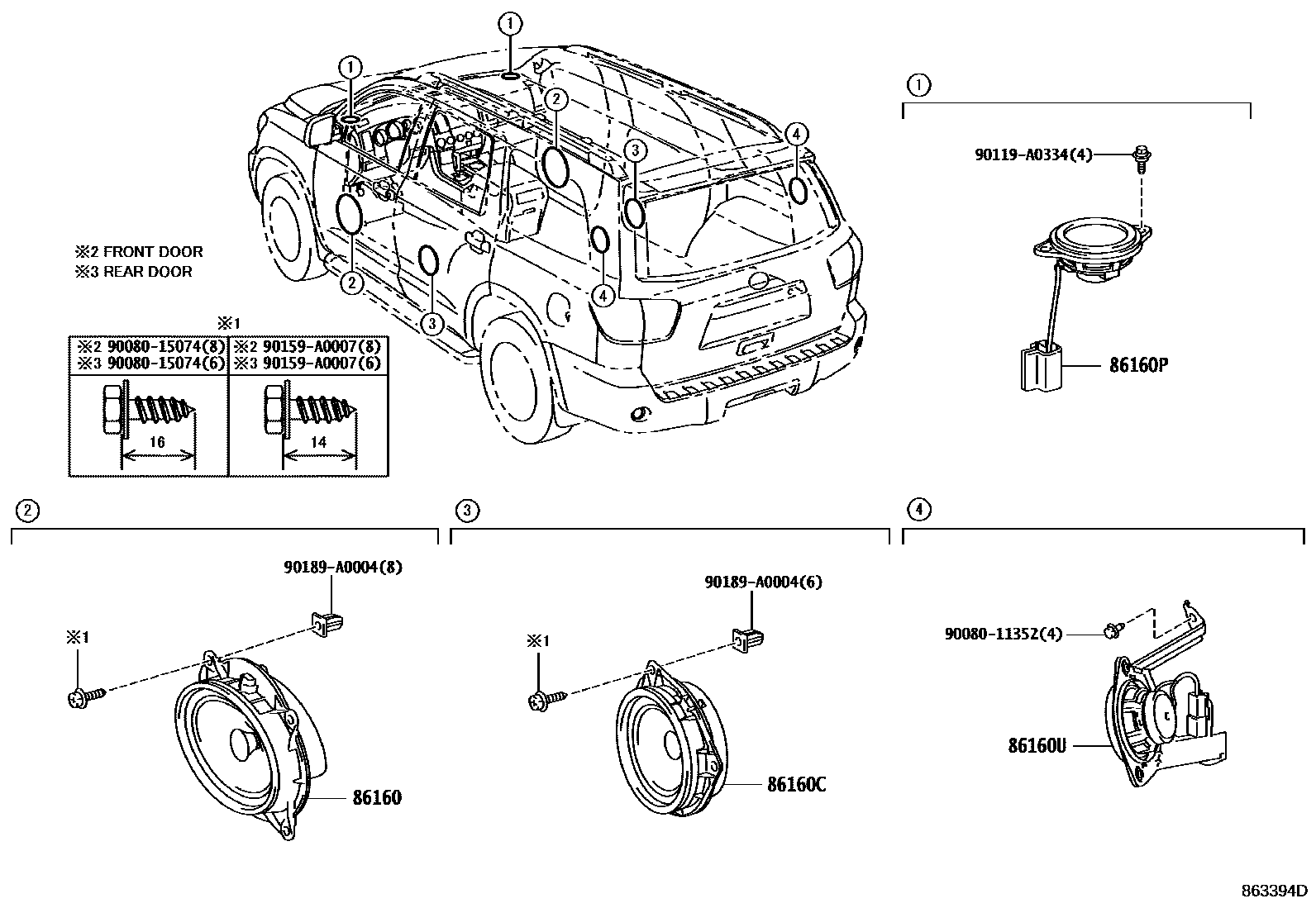

Toyota SEQUOIA — SPEAKER

0001 18SPEAKERS 0002 112SPEAKERS 0003 114SPEAKERS

86160SPEAKER ASSY, FRONT NO.1

main86160-0C150×2supersedes 86160-AA440iUCK6#,USK6#..SR5200711-200904

AUDIO-AVN AM/FM/CD 14SPEAKER JBL

main86160-AA440×2iUSK6#..LIMD,SR5201708

86160CSPEAKER SET, REAR

main86160-0C140×2iUPK6#..SR5201112-201208

main86160-AC280×2supersedes 86160-0C140iUSK6#..PLAT200711-201708

86160PSPEAKER ASSY, FRONT NO.2

main86160-0C070×2supersedes 86160-AE010iUCK6#,USK6#..SR5200711-200904

AUDIO-AVN AM/FM/CD 14SPEAKER JBL

main86160-0C160×2iUSK6#..LIMD201708

main86160-AE010×2iUPK6#..SR5200711-201208

86160USPEAKER ASSY, QUARTER SIDE

main86160-0C090iUSK6#..SR5201708

LH

main86160-0C100iUSK6#..SR5201708

RH

main86160-0C110iUCK6#..LIMD200711-200904

AUDIO-AVN AM/FM/CD 14SPEAKER JBL,LH

main86160-0C120supersedes 86160-0C100iUCK6#,USK6#..SR5200711-200904

RH

main86160-0C190iUSK6#..LIMD201708

LH

main86160-0C200iUSK6#..LIMD201708

RH

9008011352

main90080-11352

9008015074

main90080-15074

90119A0334

main90119-A0334

90159A0007

main90159-A0007

90189A0004

main90189-A0004

9 parts on this diagram · 3 diagrams in section
