Toyota SEQUOIASPEAKER

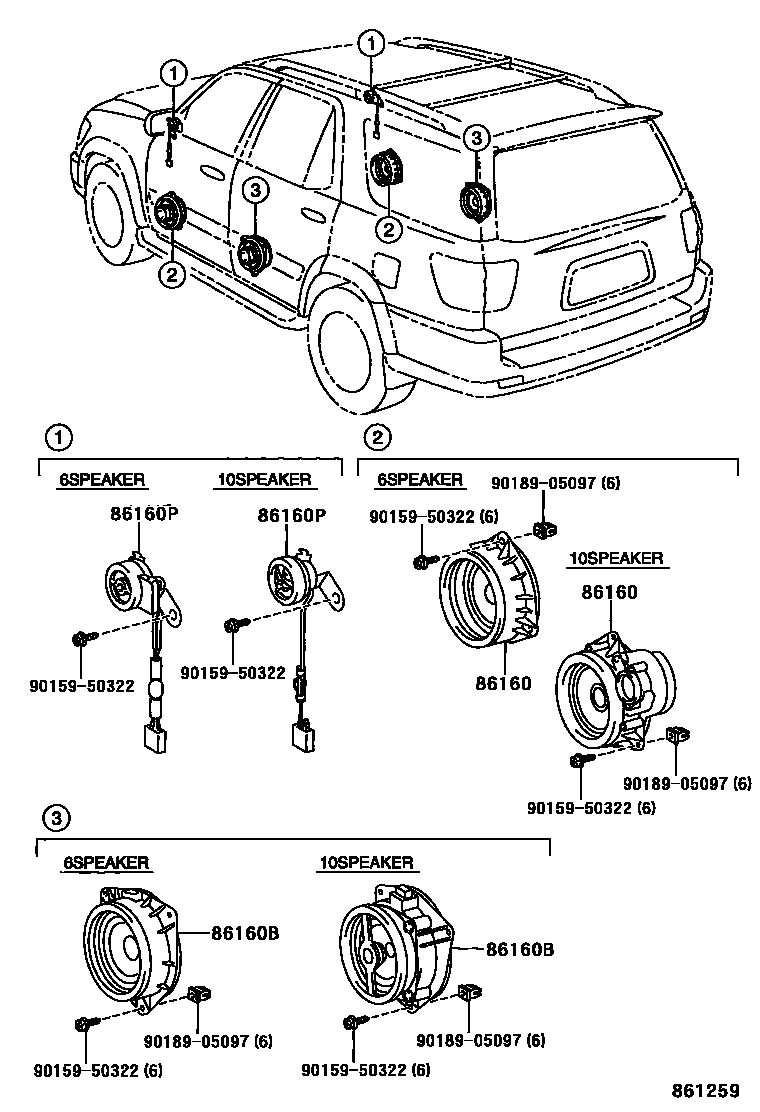

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-AF030i200009-200408
W(6 SPEAKER)
main86160-AF060i200009-200408
W(10 SPEAKER),RH
main86160-AF070i200009-200408
W(10 SPEAKER),LH
86160BSPEAKER ASSY, REAR
main86160-AF080i200009-200408
W(6 SPEAKER)
main86160-AF090i200009-200408
W(10 SPEAKER)
86160PSPEAKER ASSY, FRONT NO.2
main86160-AF010i200009-200408
W(6 SPEAKER),RH
main86160-AF020i200009-200408
W(6 SPEAKER),LH
main86160-AF040i200009-200408
W(10 SPEAKER),RH
main86160-AF050i200009-200408
W(10 SPEAKER),LH
9015950322
9018905097

5 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SEQUOIA

This section contains 5 genuine Toyota parts for the SPEAKER system of the Toyota SEQUOIA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
