Toyota SEQUOIA — ROOF PANEL & BACK PANEL

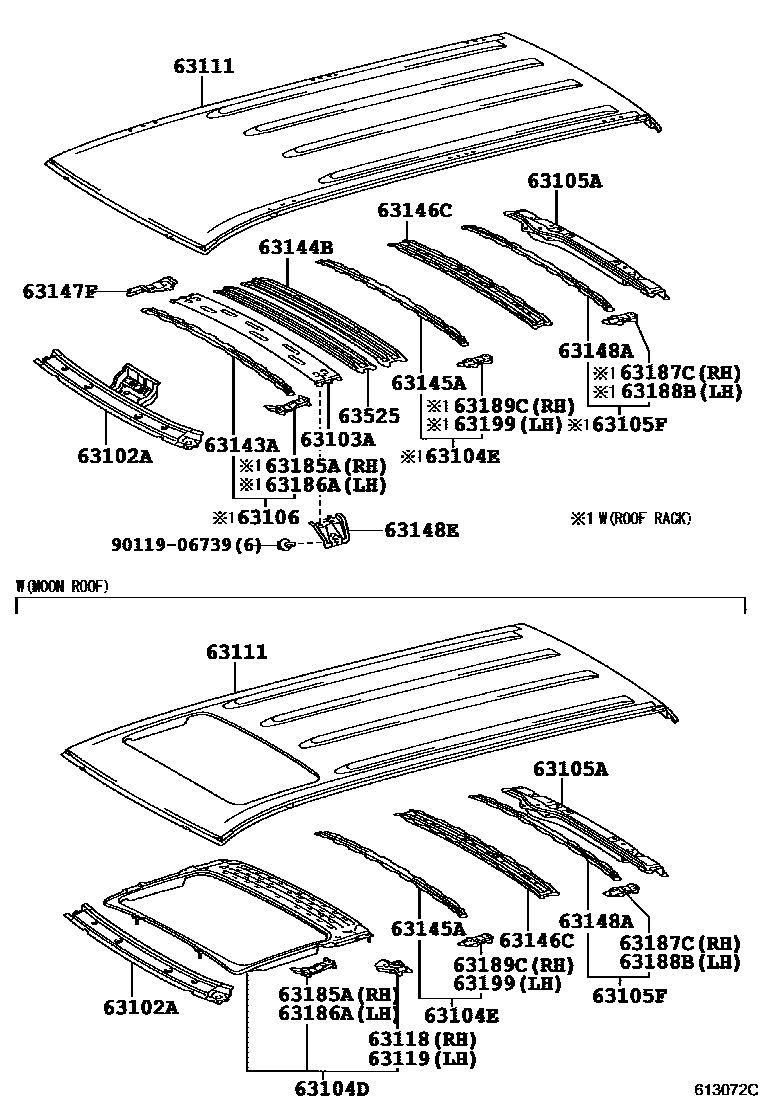

Parts diagram

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0C908supersedes 63102-0C907i200711-200904

MOON ROOF-WITH

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0C050i200711-200904

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-0C020i200711-201708

MOON ROOF-WITH

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63107-0C010i200711-201208

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0C903i200711-200904

main63105-0C904i200904-201208

63105FREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63107-0C010i200711-200904

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-0C010i200711-200904

63111PANEL, ROOF

main63111-0C901supersedes 63111-0C160i200711-201708

MOON ROOF-WITH

main63111-0C300supersedes 63111-0C290i201908

MEXICO SPEC

63118SUPPORT, ROOF PANEL, RH

main63118-0C030i200711-201708

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63119-0C030i200711-201708

MOON ROOF-WITH

63143AREINFORCEMENT, ROOF PANEL

main63143-0C030i200711-200904

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0C030i200711-201708

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63149-0C020i200711-200904

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63148-0C010i200711-200904

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-0C040i200711-200904

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63149-0C020i200711-200904

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-0C040i200711-201208

63185ABRACKET, ROOF RACK, FRONT RH

main63185-0C020i200711-200904

63186ABRACKET, ROOF RACK, FRONT LH

main63186-0C010i200711-200904

63187CBRACKET, ROOF RACK, NO.1 REAR RH

main63189-0C020i200711-200904

63188BBRACKET, ROOF RACK, NO.1 REAR LH

main63199-0C010i200711-200904

63189CBRACKET, ROOF RACK, CENTER RH

main63189-0C020i200711-200904

63199BRACKET, ROOF RACK, CENTER LH

main63199-0C010i201708

63525BRACKET, TELEVISION RACK, NO.1

main63525-0C020i200711-200904

9011906739

main90119-06739

25 parts on this diagram · 3 diagrams in section
