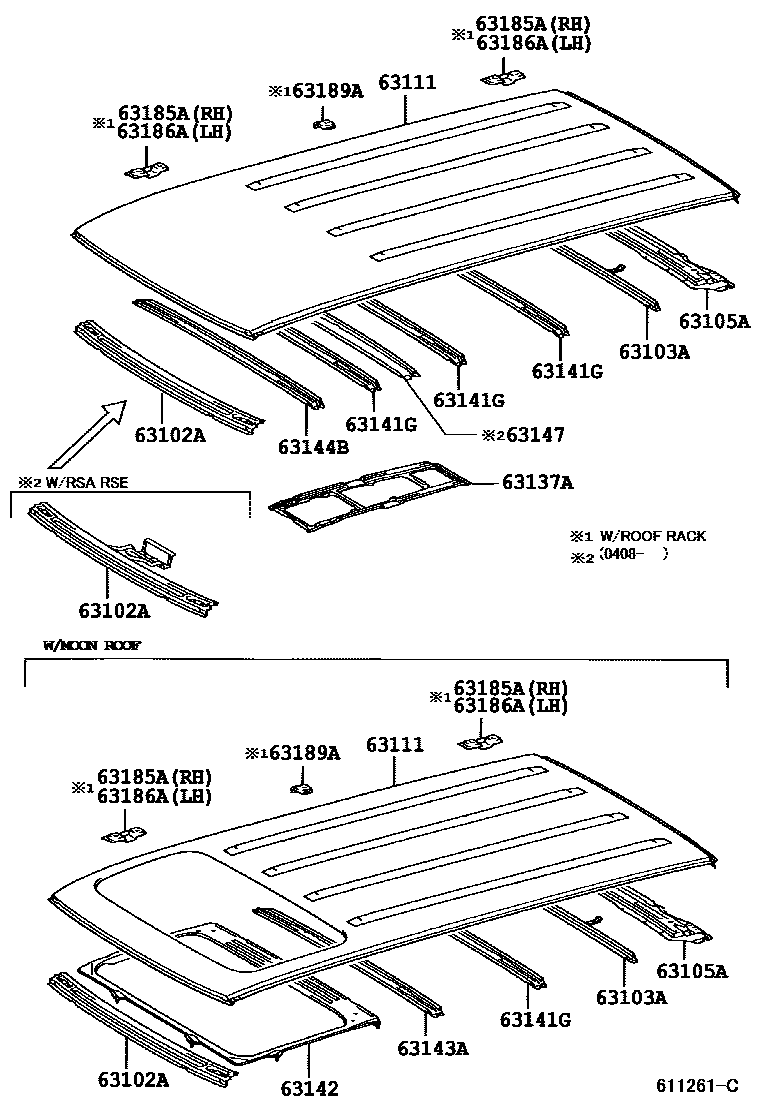

Toyota SEQUOIA — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0C900iUCK35,45200009-200408

main63102-0C905iUCK35,45200408

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0C010iUCK35,45200408

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0C900iUCK35,45200009-200306

main63105-0C901iUCK35,45200306-200408

main63105-0C902iUCK35,45200408

63111PANEL, ROOF

main63111-0C030iUCK35,45..SR5200009-200408

W/O(MOON ROOF);W/O(MOON ROOF) & W(ROOF RACK)

main63111-0C040iUCK35,45200408

W(MOON ROOF)

63137ABRACKET, DOME LAMP, NO.1

main63137-0C020iUCK35,45200009-200408

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-0C030iUCK35,45200009-200408

W(MOON ROOF)

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0C010iUCK35,45200009-200408

63143AREINFORCEMENT, ROOF PANEL

main63143-0C010iUCK35,45200009-200408

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0C010iUCK35,45200009-200408

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-34030iUCK35,45200408

63185ABRACKET, ROOF RACK, FRONT RH

main63185-0C010×2iUCK35,45200009-200408

63186ABRACKET, ROOF RACK, FRONT LH

main63185-0C010×2iUCK35,45200408

63189ABRACKET, ROOF RACK, CENTER

main63189-0C010×2iUCK35,45200009-200408

13 parts on this diagram · 4 diagrams in section
