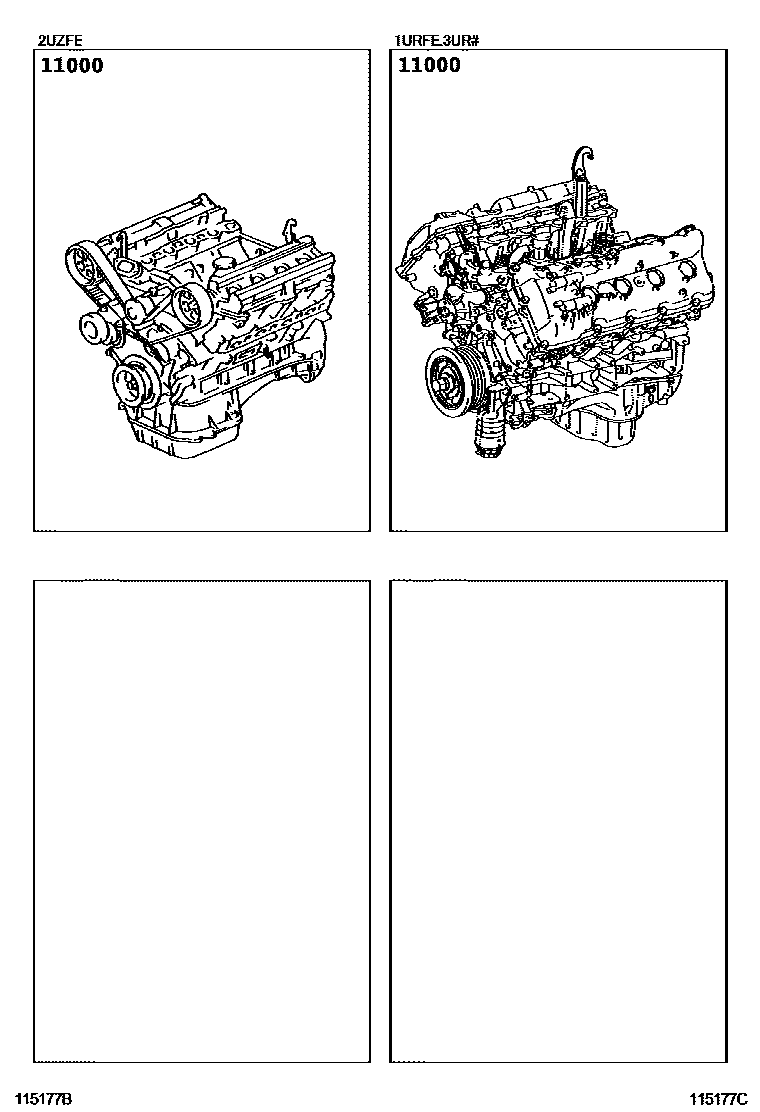

Toyota SEQUOIA — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0F030i2UZFE..UCK6#200711-200904

sub19000-50D80

main19000-0S070supersedes 19000-0S080i1URFE..UPK6#201008-201208

sub19000-38760

main19000-0S120supersedes 19000-0S130i3URFBE..USK65201708-201709

sub19000-38810

main19000-0S010supersedes 19000-0S020i3UR#..USK6#200711-200903

TOWING PACKAGE-WITH

sub11452-0S011

sub15301-38061

main19000-0S011supersedes 19000-0S021i3UR#..USK6#200903-201108

TOWING PACKAGE-WITH

sub19000-38271

main19000-0S090supersedes 19000-0S100i3UR#..USK6#201108-201308

TOWING PACKAGE-WITH

sub19000-38780

main19000-0S170i3URFE..USK65201408-201708

SOUTH AMERICA SPEC

sub19000-38850

main19000-0S180i3URFE..USK65201408-201708

SOUTH AMERICA SPEC&TOWING PACKAGE-WITH

sub19000-38860

1 parts on this diagram · 1 diagram in section
