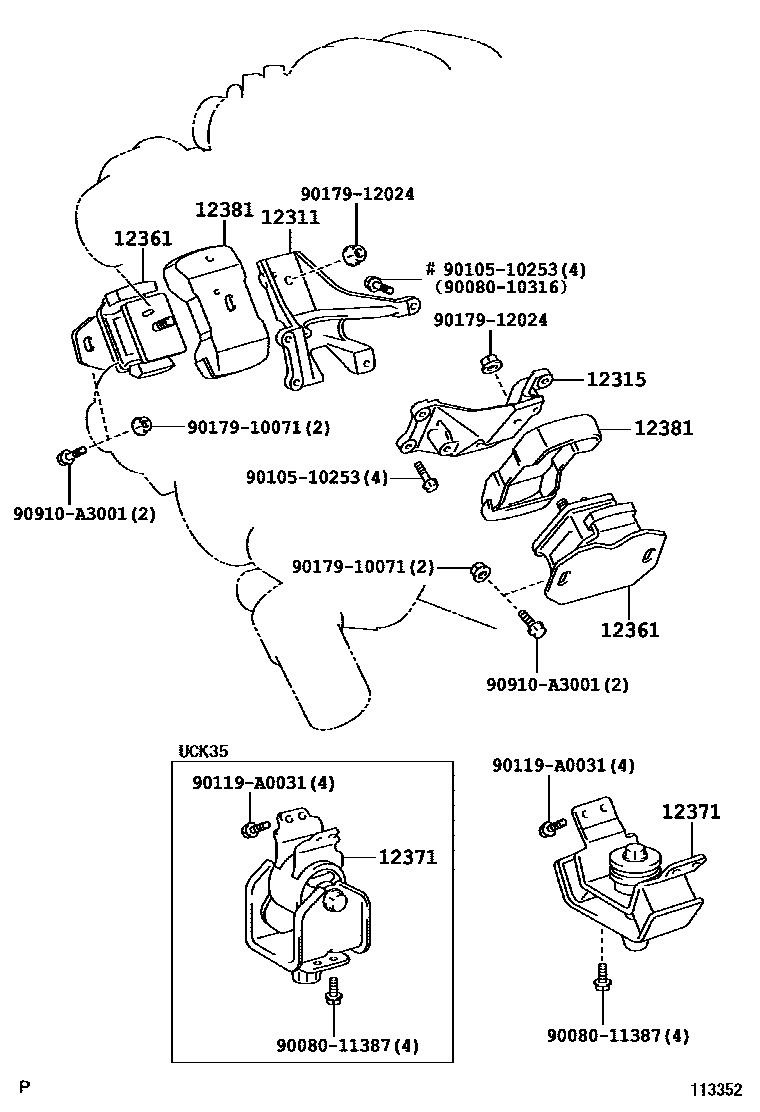

Toyota SEQUOIA — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0F010i2UZFE..UCK35,45200408

(L)

main12311-50120i2UZFE..UCK35,45200009-200408

(J)

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0F010i2UZFE..UCK35,45200408

(L)

main12315-50090i2UZFE..UCK35,45200009-200408

(J)

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-50160×2i2UZFE..UCK35,45200408

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0F030i2UZFE..UCK35200408

sub12371-0F080

sub90119-08895

main12371-0F040i2UZFE..UCK45200408

main12371-50120i2UZFE..UCK35200009-200408

main12371-50130i2UZFE..UCK45200009-200408

12381STABILIZER, ENGINE MOUNTING

main12381-50120×2i2UZFE..UCK35,45200009-200408

9008010316

main90080-10316

9008011387

main90080-11387

9010510253

main90105-10253

90119A0031

main90119-A0031

9017910071

main90179-10071

9017912024

main90179-12024

90910A3001

main90910-A3001

12 parts on this diagram · 2 diagrams in section
