Toyota SEQUOIA — MIRROR

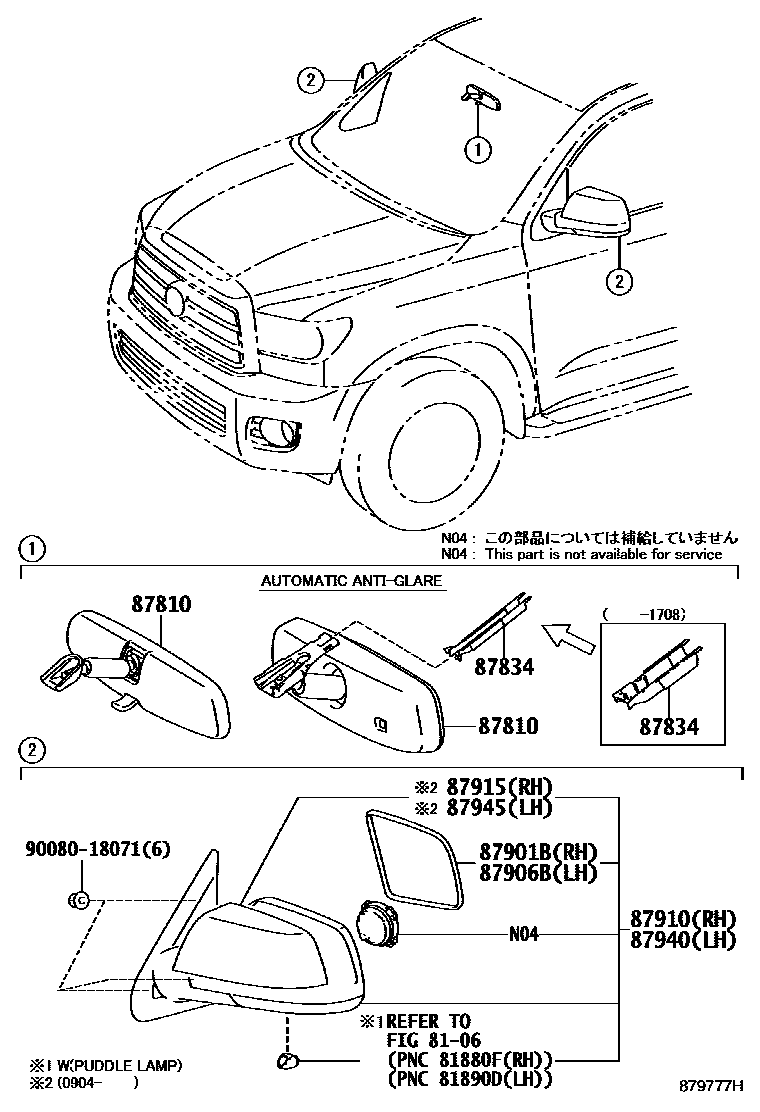

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-06080i200911-201708
main87810-0C020i200711-200910
main87810-0C050i200711-200904
INSIDE REAR VIEW MIRROR-EC+HOMELINK+COMPASS+LAMP
main87810-0C060i200904-201008
INSIDE REAR VIEW MIRROR-EC+HOMELINK+COMPASS+LAMP
main87810-0C110i201708
INSIDE REAR VIEW MIRROR-*218 & HOME LINK
main87810-0C150i201008-201708
INSIDE REAR VIEW MIRROR-EC+HOMELINK+COMPASS+LAMP
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0C010i200904-201106
INSIDE REAR VIEW MIRROR-EC+HOMELINK+COMPASS+LAMP
main87818-0C011i201107-201708
INSIDE REAR VIEW MIRROR-EC+HOMELINK+COMPASS+LAMP
main87818-0C011i201107-201208
INSIDE REAR VIEW MIRROR-C + 3.3"BACK MONITOR DISP
main87818-0C020i200711-200904
INSIDE REAR VIEW MIRROR-EC+HOMELINK+COMPASS+LAMP
main87818-AE010i201708
INSIDE REAR VIEW MIRROR-*218 & HOME LINK
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87903-0C010i200711-201708
main87903-0C030i200711-200904
main87903-0C031i200904-201106
main87903-0C032i201105-201708
main87903-0C070i201108-201308
POWER MEMORY PACKAGE
main87903-0C071i201308-201708
POWER MEMORY PACKAGE
main87903-0C090i201708
main87903-0C130i201708
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87906-0C010i200711-201708
main87906-0C030i200711-200904
main87906-0C031i200904-201106
main87906-0C032i201105-201708
main87906-0C080i201108-201308
POWER MEMORY PACKAGE
main87906-0C081i201308-201708
POWER MEMORY PACKAGE
main87906-0C100i201708
main87906-0C130i201708
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0C200i200711-200904
PLATED
main87910-0C202i200904-201105
PLATED
main87910-0C203i201106-201308
PLATED
main87910-0C210i200711-200904
PLATED
main87910-0C210i200711-200904
PLATED,POWER MEMORY PACKAGE
main87910-0C212i200904-201105
PLATED
main87910-0C212i200904-201105
PLATED,POWER MEMORY PACKAGE
main87910-0C213i201105-201108
PLATED,POWER MEMORY PACKAGE
main87910-0C213i201105-201108
PLATED
main87910-0C260-A0i200711-200903
SUPER WHITE 2,040
main87910-0C260-B0i200711-200903
SILVER ME.,1D6
main87910-0C260-B1i200711-200903
GRAY ME.,1F9
main87910-0C260-C0i200711-200903
BLACK,202
main87910-0C260-D0i200711-200903
DK RED MC,3Q7
main87910-0C260-E0i200711-200903
BEIGE M. M.,4Q2
main87910-0C260-E1i200711-200903
BRONZE M.M.,4T3
main87910-0C260-G0i200711-200903
DK.GREEN M.M.,6T8
main87910-0C260-J0i200711-200903
DK.BLUE MC.,8S6
main87910-0C261-A0i200904-201308
SUPER WHITE 2,040
main87910-0C261-B0i200904-201308
SILVER ME.,1D6
main87910-0C261-B1i200904-201008
GRAY ME.,1F9
main87910-0C261-B2i201008-201308
GRAY ME.,1G3
main87910-0C261-C0i200904-201308
BLACK,202
main87910-0C261-D0i200904-201108
DK RED MC,3Q7
main87910-0C261-D1i201108-201308
BLACKISH RED MC.,3R0
main87910-0C261-E1i200904-201308
BRONZE M.M.,4T3
main87910-0C261-E2i200904-201308
BEIGE ME.,4T8
main87910-0C261-G1i200904-201008
DK.GREEN MC.,6V4
main87910-0C261-J0i200904-201008
DK.BLUE MC.,8S6
main87910-0C320i201308-201708
PLATED
main87910-0C320i201308-201708
PLATED,POWER MEMORY PACKAGE
main87910-0C340-A0i201308-201708
SUPER WHITE 2,040
main87910-0C340-B0i201308-201708
SILVER ME.,1D6
main87910-0C340-B1i201308-201708
GRAY ME.,1G3
main87910-0C340-C0i201308-201708
BLACK,202
main87910-0C340-D0i201308-201708
BLACKISH RED MC.,3R0
main87910-0C340-E0i201308-201708
BRONZE M.M.,4T3
main87910-0C340-E1i201308-201708
BEIGE ME.,4T8
main87910-0C350i201108-201308
PLATED
main87910-0C350i201108-201308
PLATED,POWER MEMORY PACKAGE
main87910-0C370-A0i201708-202108
SUPER WHITE 2,040
main87910-0C370-A1i202108
PLATINUM WHITE PEARL MC.,089
main87910-0C370-B0i201708-201908
SILVER ME.,1D6
main87910-0C370-B1i201708
GRAY ME.,1G3
main87910-0C370-B3i201908
SILVER ME.,1J9
main87910-0C370-C1i201708
ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218
main87910-0C370-C1i201708-201709
ATTITUDE BLACK MC.,040 ,1G3 ,218
main87910-0C370-D1i201708-202009
BLACKISH RED MC.,3R0
main87910-0C370-E2i201708-201908
DARK SHERRY M.M.,4W4
main87910-0C370-J1i201708
GRAYISH BLUE M.M.,8V5
main87910-0C510i201308-201708
PLATED
main87910-0C570i201708
PLATED
main87910-0C570i201708
PLATED,WITH(SEAT MEMORY)
main87910-0C600i201708
PLATED
87915COVER, OUTER MIRROR, RH
main87915-0C050i200904-201708
PLATED
main87915-0C060-A0i200904-202108
SUPER WHITE 2,040
main87915-0C060-A2i202108
PLATINUM WHITE PEARL MC.,089
main87915-0C060-B0i200904-201908
SILVER ME.,1D6
main87915-0C060-B1i200904-201008
GRAY ME.,1F9
main87915-0C060-B2i201008-201708
GRAY ME.,1G3
main87915-0C060-B4i201908
SILVER ME.,1J9
main87915-0C060-C0i200904-201708
BLACK,202
main87915-0C060-C1i201708-201709
ATTITUDE BLACK MC.,040 ,1G3 ,218
main87915-0C060-C1i201708
ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218
main87915-0C060-D0i200904-201108
DK RED MC,3Q7
main87915-0C060-D2i201108-202009
BLACKISH RED MC.,3R0
main87915-0C060-E0i200904-201708
BRONZE M.M.,4T3
main87915-0C060-E1i200904-201708
BEIGE ME.,4T8
main87915-0C060-E4i201708-201908
DARK SHERRY M.M.,4W4
main87915-0C060-G0i200904-201008
DK.GREEN MC.,6V4
main87915-0C060-J0i200904-201008
DK.BLUE MC.,8S6
main87915-0C060-J2i201708
GRAYISH BLUE M.M.,8V5
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0C200i200711-200904
PLATED
main87940-0C202i200904-201105
PLATED
main87940-0C203i201106-201308
PLATED
main87940-0C210i200711-200904
PLATED
main87940-0C210i200711-200904
PLATED,POWER MEMORY PACKAGE
main87940-0C212i200904-201105
PLATED,POWER MEMORY PACKAGE
main87940-0C212i200904-201105
PLATED
main87940-0C213i201105-201108
PLATED,POWER MEMORY PACKAGE
main87940-0C213i201105-201108
PLATED
main87940-0C260-A0i200711-200903
SUPER WHITE 2,040
main87940-0C260-B0i200711-200903
SILVER ME.,1D6
main87940-0C260-B1i200711-200903
GRAY ME.,1F9
main87940-0C260-C0i200711-200903
BLACK,202
main87940-0C260-D0i200711-200903
DK RED MC,3Q7
main87940-0C260-E0i200711-200903
BEIGE M. M.,4Q2
main87940-0C260-E1i200711-200903
BRONZE M.M.,4T3
main87940-0C260-G0i200711-200903
DK.GREEN M.M.,6T8
main87940-0C260-J0i200711-200903
DK.BLUE MC.,8S6
main87940-0C261-A0i200904-201308
SUPER WHITE 2,040
main87940-0C261-B0i200904-201308
SILVER ME.,1D6
main87940-0C261-B1i200904-201008
GRAY ME.,1F9
main87940-0C261-B2i201008-201308
GRAY ME.,1G3
main87940-0C261-C0i200904-201308
BLACK,202
main87940-0C261-D0i200904-201108
DK RED MC,3Q7
main87940-0C261-D1i201108-201308
BLACKISH RED MC.,3R0
main87940-0C261-E1i200904-201308
BRONZE M.M.,4T3
main87940-0C261-E2i200904-201308
BEIGE ME.,4T8
main87940-0C261-G1i200904-201008
DK.GREEN MC.,6V4
main87940-0C261-J0i200904-201008
DK.BLUE MC.,8S6
main87940-0C340-A0i201308-201708
SUPER WHITE 2,040
main87940-0C340-B0i201308-201708
SILVER ME.,1D6
main87940-0C340-B1i201308-201708
GRAY ME.,1G3
main87940-0C340-C0i201308-201708
BLACK,202
main87940-0C340-D0i201308-201708
BLACKISH RED MC.,3R0
main87940-0C340-E0i201308-201708
BRONZE M.M.,4T3
main87940-0C340-E1i201308-201708
BEIGE ME.,4T8
main87940-0C370i201108-201308
PLATED,POWER MEMORY PACKAGE
main87940-0C370i201108-201308
PLATED
main87940-0C390-A0i201708-202108
SUPER WHITE 2,040
main87940-0C390-A1i202108
PLATINUM WHITE PEARL MC.,089
main87940-0C390-B0i201708-201908
SILVER ME.,1D6
main87940-0C390-B1i201708
GRAY ME.,1G3
main87940-0C390-B3i201908
SILVER ME.,1J9
main87940-0C390-C1i201708-201709
ATTITUDE BLACK MC.,040 ,1G3 ,218
main87940-0C390-C1i201708
ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218
main87940-0C390-D1i201708-202009
BLACKISH RED MC.,3R0
main87940-0C390-E2i201708-201908
DARK SHERRY M.M.,4W4
main87940-0C390-J1i201708
GRAYISH BLUE M.M.,8V5
main87940-0C510i201308-201708
PLATED
main87940-0C520i201308-201708
PLATED,POWER MEMORY PACKAGE
main87940-0C520i201308-201708
PLATED
main87940-0C570i201708
PLATED
main87940-0C570i201708
PLATED,WITH(SEAT MEMORY)
main87940-0C600i201708
PLATED
87945COVER, OUTER MIRROR, LH
main87945-0C030i200904-201708
PLATED
main87945-0C040-A0i200904-202108
SUPER WHITE 2,040
main87945-0C040-A2i202108
PLATINUM WHITE PEARL MC.,089
main87945-0C040-B0i200904-201908
SILVER ME.,1D6
main87945-0C040-B1i200904-201008
GRAY ME.,1F9
main87945-0C040-B2i201008-201708
GRAY ME.,1G3
main87945-0C040-B4i201908
SILVER ME.,1J9
main87945-0C040-C0i200904-201708
BLACK,202
main87945-0C040-C1i201708-201709
ATTITUDE BLACK MC.,040 ,1G3 ,218
main87945-0C040-C1i201708
ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218
main87945-0C040-D0i200904-201108
DK RED MC,3Q7
main87945-0C040-D2i201108-202009
BLACKISH RED MC.,3R0
main87945-0C040-E0i200904-201708
BRONZE M.M.,4T3
main87945-0C040-E1i200904-201708
BEIGE ME.,4T8
main87945-0C040-E4i201708-201908
DARK SHERRY M.M.,4W4
main87945-0C040-G0i200904-201008
DK.GREEN MC.,6V4
main87945-0C040-J0i200904-201008
DK.BLUE MC.,8S6
main87945-0C040-J2i201708
GRAYISH BLUE M.M.,8V5
9008018071
main90080-18071

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota SEQUOIA

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota SEQUOIA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
