Toyota SEQUOIA — FUEL INJECTION SYSTEM

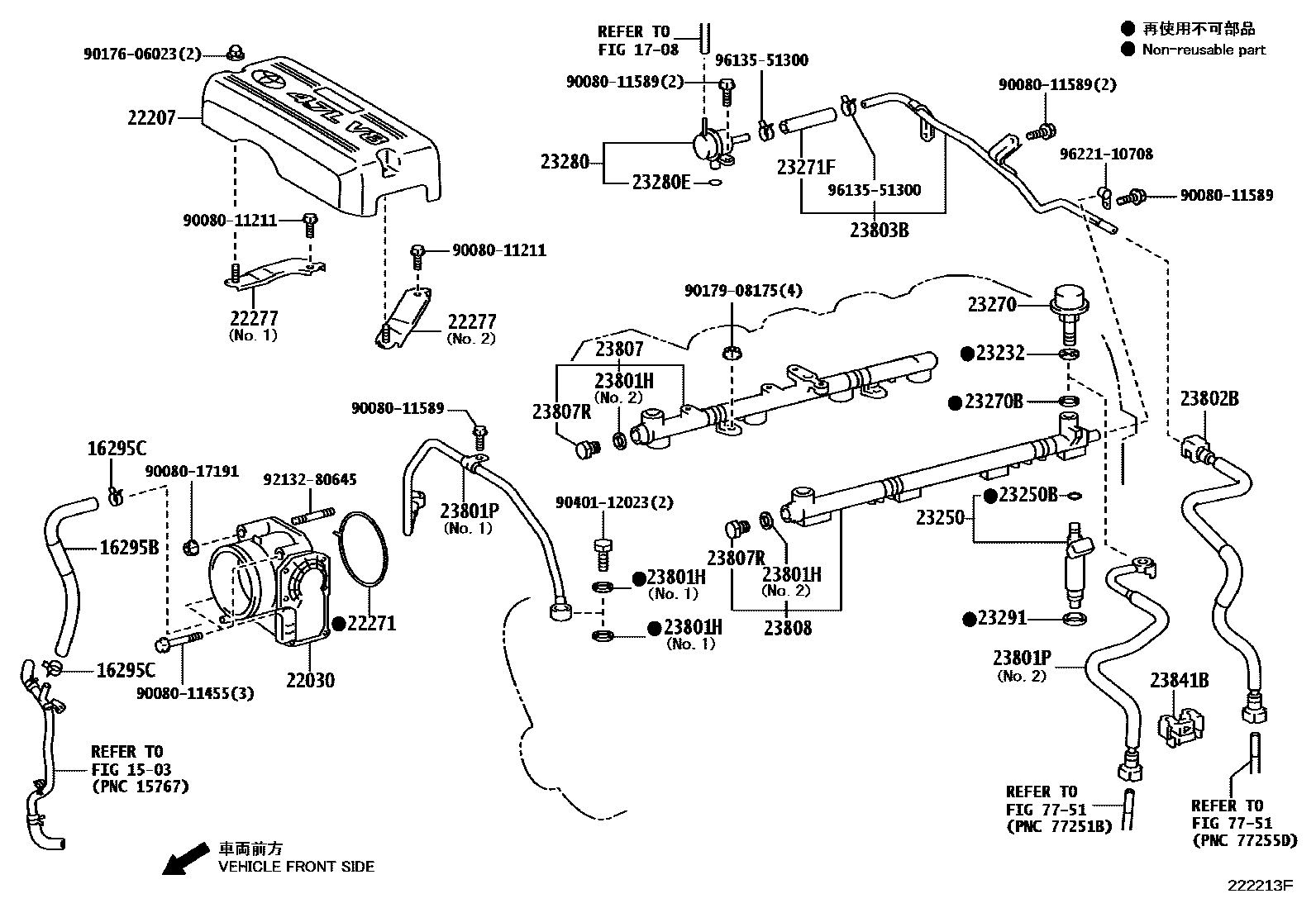

Parts diagram
1503
16295BHOSE, WATER BY-PASS, NO.7
main16295-50110i200711-200904
16295CCLIP(FOR WATER BY-PASS HOSE NO.7)
main90467-13054×2i200711-200904
1708
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-0F010i200711-200904
main22030-0S010i200711-201708
main22030-0S021i200904-201208
22207COVER SUB-ASSY, THROTTLE BODY
main22266-50070i200711-200904
22271GASKET, THROTTLE BODY
main22271-0S010i200711-201708
main22271-0S020i200808-201708
main22271-50050i200711-200904
22277BRACKET, THROTTLE BODY COVER
main22277-50061i200711-200904
NO.2
main22277-50070i200711-200904
NO.1
23232GASKET(FOR FUEL PUMP HOSE)
main23232-41081i200711-200904
23250INJECTOR ASSY, FUEL
main23209-09150×8i200711-200806
(L)
main23209-09151×8i200806-201208
(L)
main23209-0F020×8i200711-200904
main23209-39165×8i200711-201208
(J)
main23209-39185×8i200806-201708
(J)
23250BRING, O(FOR FUEL INJECTOR)
main90301-07037×8i200711-200904
main90301-A0036×8i201708-201709
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
main23270-38020×2i200808-201203
main23270-38021×2i201708-201709
main23270-50010i200711-200904
sub23270-50011
23270BGASKET(FOR PULSATION DAMPER HOSE)
main90430-12026i200711-200904
23271FHOSE, FUEL
main95337-08009i200711-200904
23280REGULATOR ASSY, FUEL PRESSURE
main23280-38010i200711-201108
sub23280-38011
main23280-38040i200808-201203
main23280-38041i201708-201709
main23280-38050i200904-201208
sub23280-38051
main23280-38090i201108-201206
main23280-38091i201708
main23280-50050i200711-200904
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
main90301-07037i200711-200904
23291INSULATOR, INJECTOR VIBRATION
main23291-23010×8i200711-200806
main23291-28020×8i200806-201708
main23291-41010×8i200711-200904
23801HGASKET(FOR FUEL PIPE)
main90430-12026×4i200711-200904
NO.1
main90430-14008×2i200711-200904
NO.2
23801PPIPE SUB-ASSY, FUEL, NO.1
main23271-0F010i200711-200904
NO.2
main23271-0S011i200711-201109
main23271-0S020i200904-201208
sub23901-0S030
main23271-0S030i201109-201308
PNC 23841B=TYPE A
main23801-50071i200711-200904
NO.1
main23901-0S020i201308-201609
PNC 23841B=TYPE B
main23901-0S050i201609-201708
23802BPIPE SUB-ASSY, FUEL, NO.2
main23273-0F020i200711-200904
23803BPIPE SUB-ASSY, FUEL, NO.3
main23803-50130i200711-200904
sub23803-50131
23807PIPE SUB-ASSY, FUEL DELIVERY
main23807-0F020i200711-200904
main23814-38030i200711-200903
main23814-38031i200903-201108
sub23814-38032
main23814-38120i200808-200903
main23814-38121i200903-201108
main23814-38122i201108-201708
main23814-38130i201108-201205
main23814-38131i201205-201708
23807RPLUG, FUEL DELIVARY PIPE
main90341-14032×2i200711-200904
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
main23808-0F020i200711-200904
main23808-38020i200904-201208
main23808-38021i201708
main23815-38010i200711-201108
sub23815-38011
main23815-38070i200808-201108
main23815-38071i201708-201709
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
main23841-0F010i200711-200904
main23841-0S010i201308-201609
TYPE B:REFER ILLUST.
main23841-0S020i201609-201708
7751
9008011211
main90080-11211
9008011455
main90080-11455
9008011589
main90080-11589
9008017191
main90080-17191
9017606023
main90176-06023
9017908175
main90179-08175
9040112023
main90401-12023
9213280645
main92132-80645
9613551300
main96135-51300
9622110708
main96221-10708

36 parts on this diagram · 10 diagrams in section
