Toyota SEQUOIA — FUEL INJECTION SYSTEM

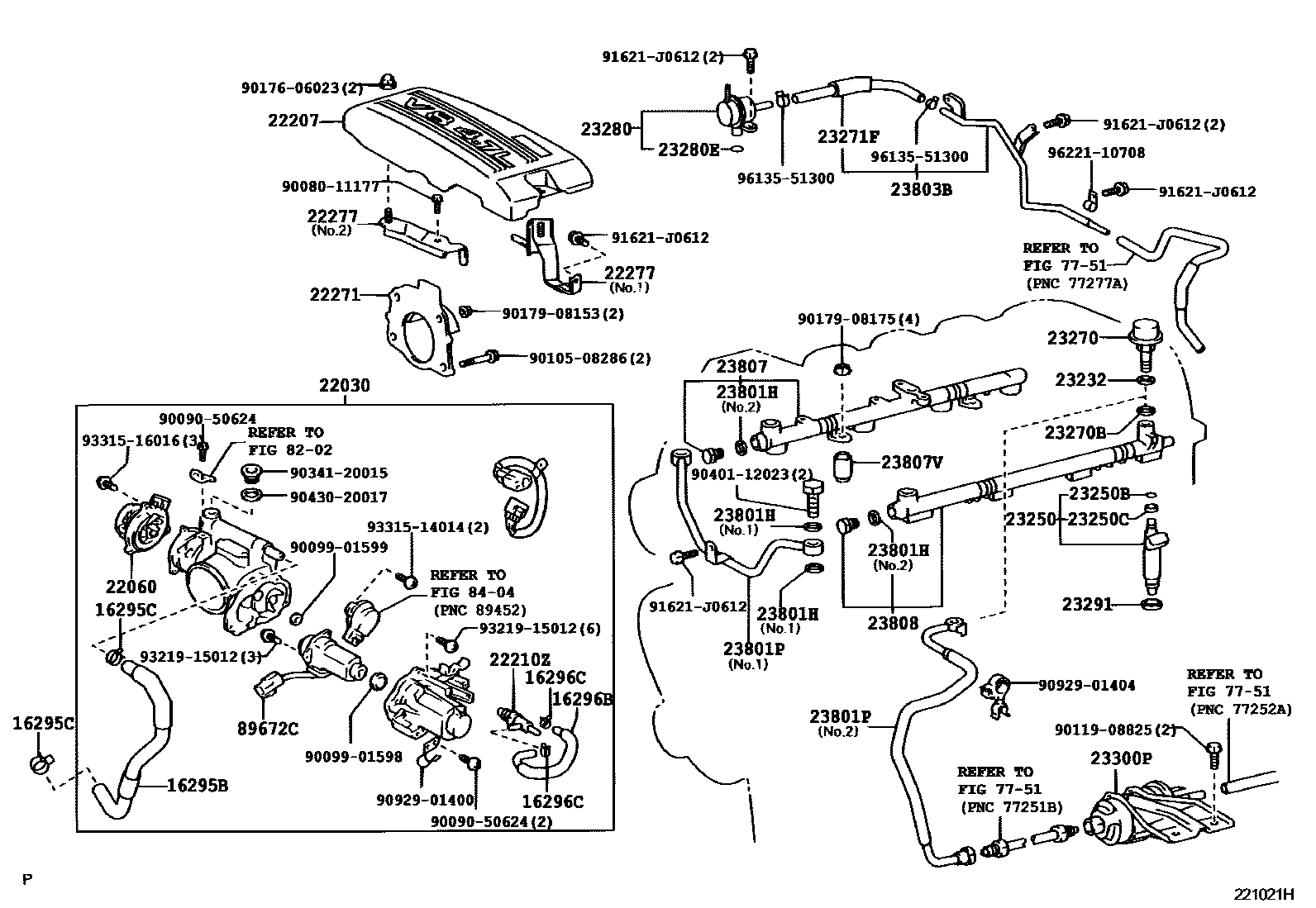

Parts diagram
16295BHOSE, WATER BY-PASS, NO.7
main16295-50060i200009-200208
main16295-50070i200208-200408
main16295-50110i200408
16295CCLIP(FOR WATER BY-PASS HOSE NO.7)
main90467-20011×2i200009-200208
main96135-51300×2i200505
main96137-41501×2i200501-200505
16296BHOSE, WATER BY-PASS, NO.8
main16296-50020i200009-200208
main16296-50030i200208-200408
16296CCLIP(FOR WATER BY-PASS HOSE NO.8)
main90467-13054×2i200009-200208
main96135-51300×2i200208-200408
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-0F010i200408
(L)
main22030-50142i200009-200208
main22030-50170i200208-200408
main22030-50200i200408
(J)
22060LEVER ASSY, THROTTLE W/SENSOR
main22060-50011i200009-200208
22207COVER SUB-ASSY, THROTTLE BODY
main22266-50030i200009-200209
sub22266-50H00
main22266-50040i200209-200408
sub22266-50902
22210ZTHERMOSTAT, MANIFOLD
main90916-03128i200009-200208
22271GASKET, THROTTLE BODY
main22271-50042i200009-200208
main22271-50050i200408
22277BRACKET, THROTTLE BODY COVER
main22277-50010i200009-200209
NO.1
main22277-50020i200009-200209
NO.2
main22277-50030i200408-200511
NO.1
main22277-50031i200511
NO.1
main22277-50040i200209-200408
NO.2
main22277-50050i200209-200408
NO.1
main22277-50060i200408-200411
NO.2
main22277-50061i200411
NO.2
23232GASKET(FOR FUEL PUMP HOSE)
main23232-41081i200009-200408
23250INJECTOR ASSY, FUEL
main23209-0F020×8i200408
(L)
main23209-50040×8i200009-200408
main23209-50080×8i200408
(J)
23250BRING, O(FOR FUEL INJECTOR)
main90301-07024×8i200009-200408
main90301-07037×8i200607
23250CGROMMET(FOR FUEL INJECTOR)
main90480-13005×8i200009-200408
23270DAMPER ASSY, FUEL PRESSURE PULSATION
main23270-50010i200009-200408
sub23270-50011
23270BGASKET(FOR PULSATION DAMPER HOSE)
main90430-12026i200009-200408
23271FHOSE, FUEL
main23271-50160i200009-200208
main95337-08009i200208-200408
23280REGULATOR ASSY, FUEL PRESSURE
main23280-50050i200408
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
main90301-07037i200009-200408
23291INSULATOR, INJECTOR VIBRATION
main23291-41010×8i200009-200408
23300PFILTER, FUEL(FOR EFI)
main23030-50010i200009-200408
23801HGASKET(FOR FUEL PIPE)
main90430-12026×4i200009-200408
NO.1
main90430-14008×2i200306-200408
NO.2
23801PPIPE SUB-ASSY, FUEL, NO.1
main23801-0F020i200408
(L),NO.2
main23801-50020i200009-200208
NO.1
main23801-50021i200208-200408
NO.1
main23801-50030i200408
(J),NO.2
main23801-50050i200009-200408
NO.2
main23801-50070i200408-200606
NO.1
main23801-50071i200606
NO.1
23803BPIPE SUB-ASSY, FUEL, NO.3
main23803-0F020i200408
NO.2
main23803-50100i200009-200208
main23803-50120i200208-200408
main23803-50130i200408
NO.1
sub23803-50131
23807PIPE SUB-ASSY, FUEL DELIVERY
main23807-0F020i200408
(L)
main23807-50050i200009-200208
main23807-50051i200208-200306
main23807-50052i200306-200408
main23807-50080i200408
(J)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
main90561-08029×4i200009-200408
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
main23808-0F020i200408
(L)
main23808-50040i200009-200208
main23808-50041i200208-200306
main23808-50042i200306-200408
main23808-50070i200408
(J)
7751
8202
8404
89672CMOTOR, THROTTLE CONTROL
main89672-47010i200009-200208
9008011177
main90080-11177
9009050624
main90090-50624
9009901598
main90099-01598
9009901599
main90099-01599
9010508286
main90105-08286
9011908825
main90119-08825
9017606023
main90176-06023
9017908153
main90179-08153
9017908175
main90179-08175
9034120015
main90341-20015
9040112023
main90401-12023
9043020017
main90430-20017
9092901400
main90929-01400
9092901404
main90929-01404
91621J0612
main91621-J0612
9321915012
main93219-15012
9331514014
main93315-14014
9331516016
main93315-16016
9613551300
main96135-51300
9622110708
main96221-10708
