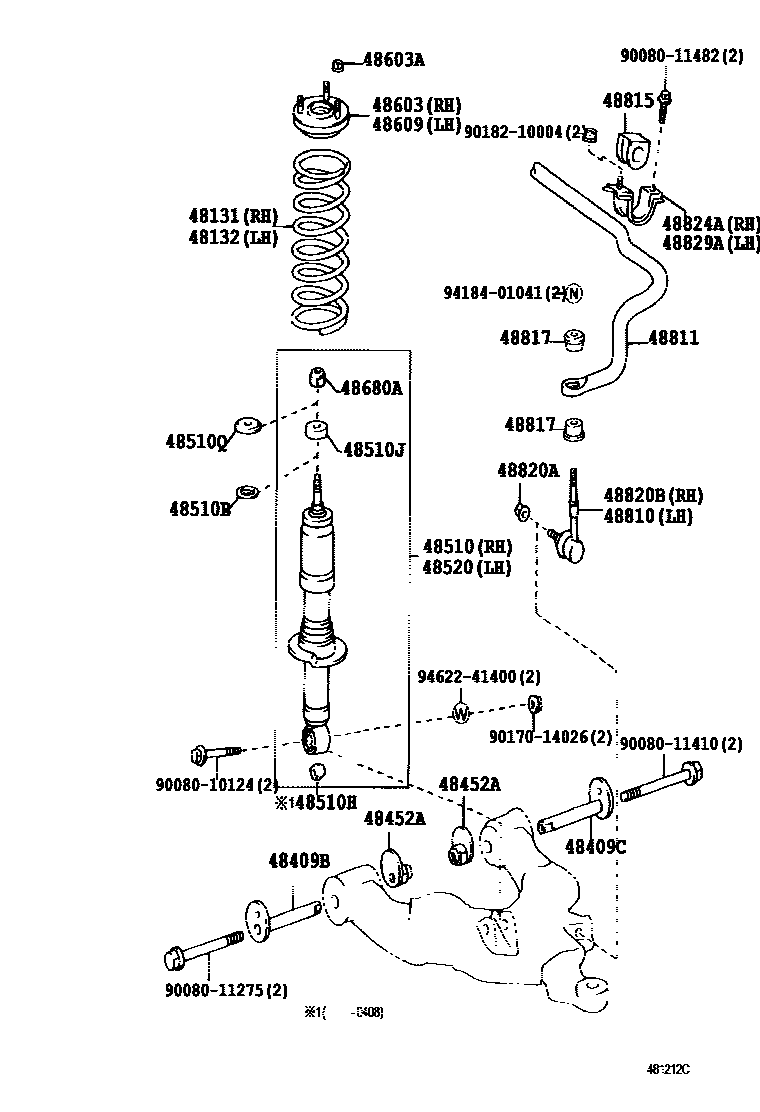

Toyota SEQUOIA — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
W(AIR SUSPENSION)
W(AIR SUSPENSION)
48132SPRING, FRONT COIL, LH
W(AIR SUSPENSION)
W(AIR SUSPENSION)
48409BCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48409CCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST, NO.2
48452APLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK=48510-AF040
MARK=48510-AF050
MARK 48510-AF070
MARK 48510-AF150,W(AIR SUSPENSION)
MARK 48510-AF160
MARK 48510-AF170,W(AIR SUSPENSION)
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510HBUSH(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK=48510-AF040
MARK=48510-AF050
MARK 48510-AF070
MARK 48510-AF150,W(AIR SUSPENSION)
MARK 48510-AF160
MARK 48510-AF170,W(AIR SUSPENSION)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
W(AIR SUSPENSION)
48815BUSH, FRONT STABILIZER BAR, NO.1
W(AIR SUSPENSION)
48817CUSHION, FRONT STABILIZER
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9008010124
main90080-10124
9008011275
main90080-11275
9008011410
main90080-11410
9008011482
main90080-11482
9017014026
main90170-14026
9018210004
main90182-10004
9418401041
main94184-01041
9462241400
main94622-41400
31 parts on this diagram · 1 diagram in section
