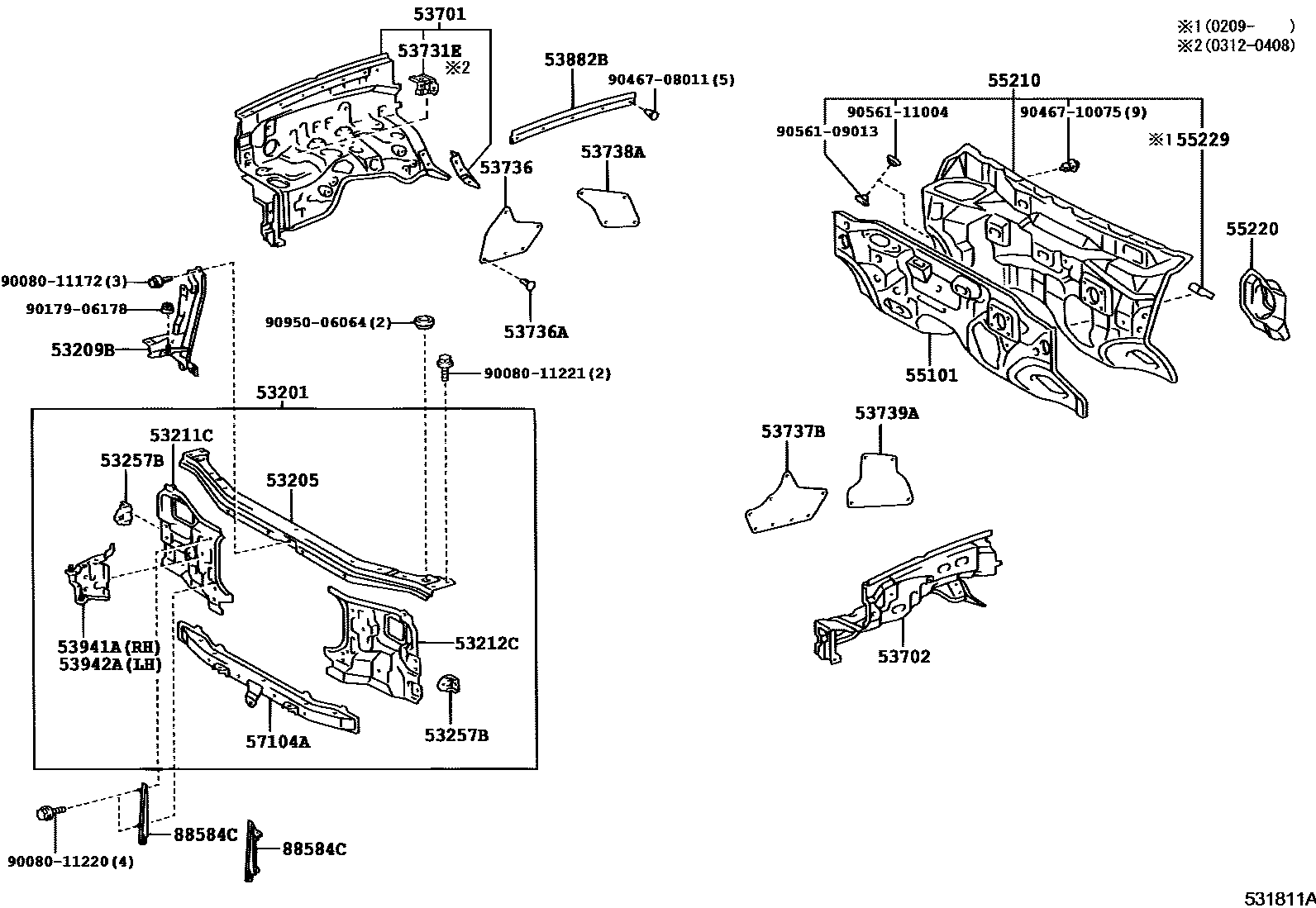

Toyota SEQUOIA — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0C020iUCK35,45200009-200408

main53201-0C040iUCK35,45200408

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0C010iUCK35,45200403-200408

main53205-0C011iUCK35,45200401-200403

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-0C020iUCK35,45200009-200408

main53209-0C050iUCK35,45200408

53211CSUPPORT, RADIATOR, RH

main53211-0C020iUCK35,45200009-200408

main53211-0C030iUCK35,45200408

53212CSUPPORT, RADIATOR, LH

main53212-0C020iUCK35,45200009-200408

main53212-0C030iUCK35,45200408

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-0C010×2iUCK35,45200009-200408

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0C070iUCK35,45200009-200307

sub17701-0F010

main53701-0C071iUCK35,45200307-200312

main53701-0C072iUCK35,45200312-200408

sub17701-0F010

main53701-0C080iUCK35,45200408

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0C090iUCK45200009-200307

main53702-0C091iUCK35200312-200408

main53702-0C100iUCK35200009-200307

main53702-0C101iUCK35200307-200312

main53702-0C190iUCK35,45200408

53731EPATCH, FRONT FENDER APRON

main53731-34010iUCK35,45200312-200408

53736SEAL, FRONT FENDER APRON, RH

main53736-0C010iUCK35,45200009-200209

main53736-0C020iUCK35,45200209-200408

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90080-46219×21iUCK35,45200009-200209

(L)

main90080-46327×21iUCK35,45200209-200408

main90467-10186×21iUCK35,45200009-200209

(J)

53737BSEAL, FRONT FENDER APRON, LH

main53737-0C010iUCK35,45200009-200209

main53737-0C020iUCK35,45200209-200408

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-0C010iUCK35,45200009-200408

53739ASEAL, FRONT FENDER APRON, REAR LH

main53739-0C010iUCK35,45200009-200408

53882BSEAL, FRONT FENDER, RH

main53882-0C010iUCK35,45200009-200408

53941ABRACKET, FRONT END PANEL, NO.1 RH

main53941-0C020iUCK35,45200009-200408

main53941-0C040iUCK35,45200408

53942ABRACKET, FRONT END PANEL, NO.1 LH

main53942-0C020iUCK35,45200009-200408

main53942-0C040iUCK35,45200408

55101PANEL SUB-ASSY, DASH

main55101-0C903iUCK35,45..4HC200009-200201

main55101-0C910iUCK35,45..4HC200201-200209

main55101-0C918iUCK35,45200209-200408

main55101-0C929iUCK35,45200408

55210INSULATOR ASSY, DASH PANEL

main55210-0C022iUCK35,45200209-200408

main55210-0C050iUCK35,45200506

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-0C010iUCK35,45200009-200408

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-34010iUCK35,45200408-200505

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-0C020iUCK35,45200009-200408

88584CGUIDE, COOLER AIR

main88584-0C010iUCK35,45200009-200408

RH

main88584-0C020iUCK35,45200009-200408

LH

9008011172

main90080-11172

9008011220

main90080-11220

9008011221

main90080-11221

9017906178

main90179-06178

9046708011

main90467-08011

9046710075

main90467-10075

9056109013

main90561-09013

9056111004

main90561-11004

9095006064

main90950-06064

32 parts on this diagram · 2 diagrams in section
