Toyota SEQUOIA — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0C010i200009-200408

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0C010i200009-200408

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-0C010i200009-200408

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-0C010i200009-200408

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0C020i200009-200408

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0C020i200009-200408

69855ACOVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2i200009-200408

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-34030i200009-200408

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-34030i200009-200408

9008011331

main90080-11331

9008410053

main90084-10053

9008410054

main90084-10054

90109A0008

main90109-A0008

9016850040

main90168-50040

9020908014

main90209-08014

9153160610

main91531-60610

16 parts on this diagram · 1 diagram in section

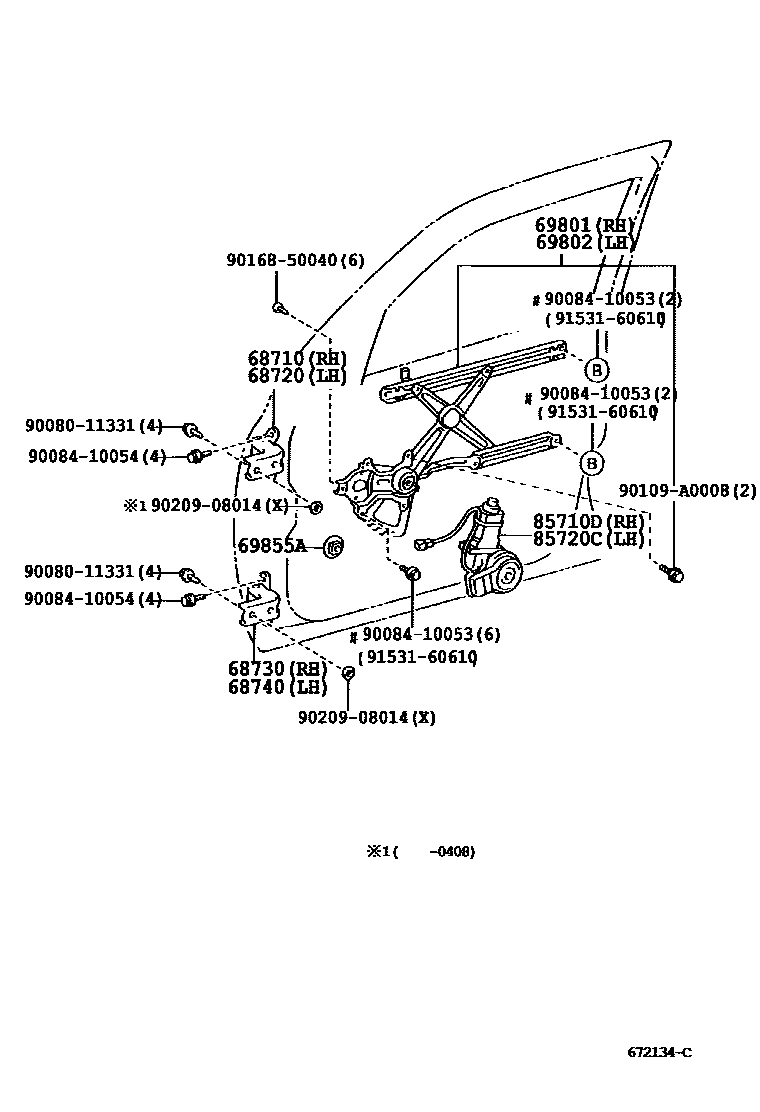

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota SEQUOIA

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota SEQUOIA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
