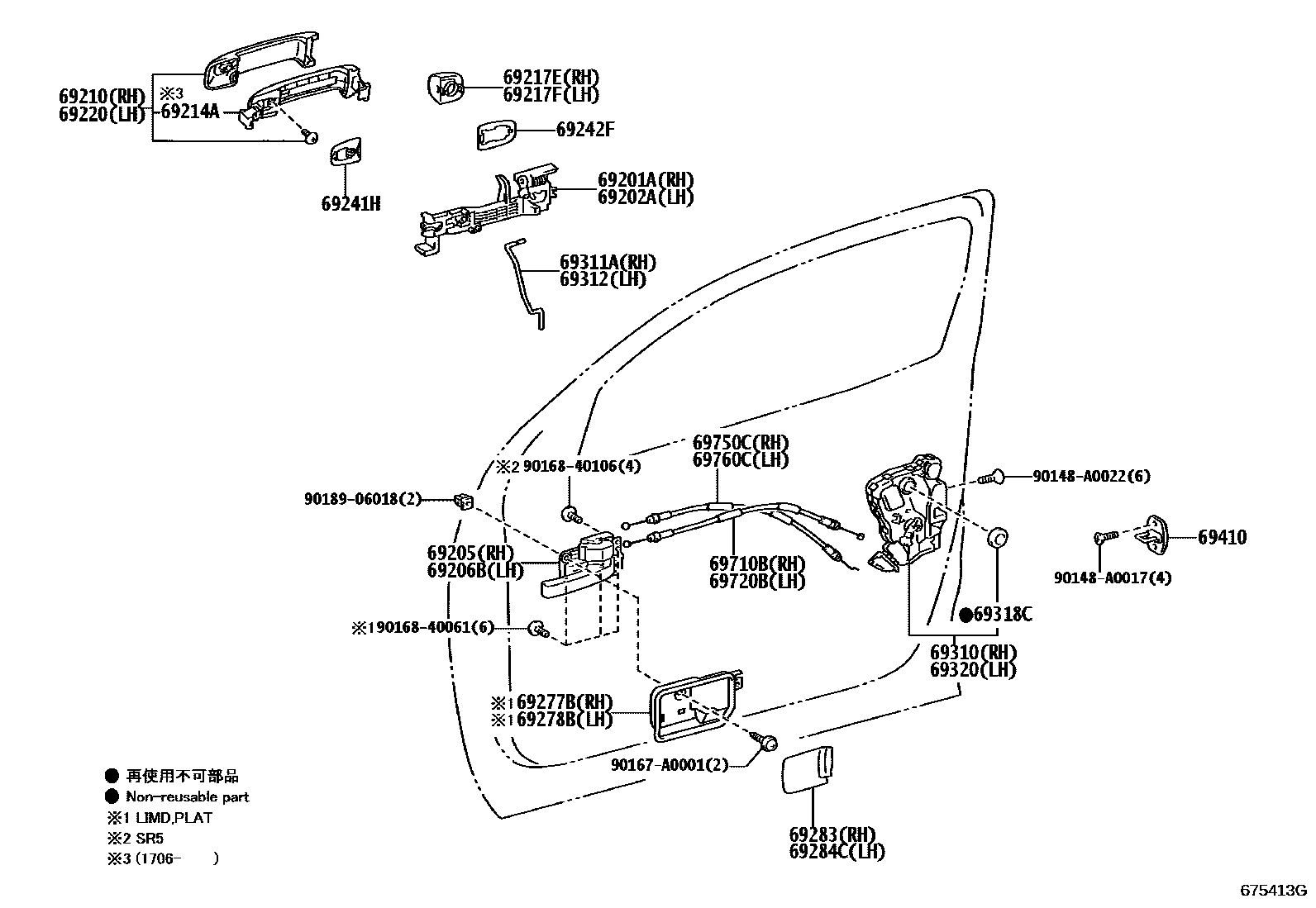

Toyota SEQUOIA — FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1F9
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
BRONZE M.M.,4T3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
DK.GREEN M.M.,6T8
DK.GREEN MC.,6V4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
GRAYISH BLUE M.M.,8V5
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.GREEN,6V7
URBAN KHAKI,6X3
GRAYISH BLUE M.M.,8V5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1F9
GRAY ME.,1G3
SILVER ME.,1J9
BLACK,202
ATTITUDE BLACK MC.,218
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
BRONZE M.M.,4T3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
DK.GREEN M.M.,6T8
DK.GREEN MC.,6V4
DK.GREEN,6V7
URBAN KHAKI,6X3
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1F9
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
BRONZE M.M.,4T3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
DK.GREEN M.M.,6T8
DK.GREEN MC.,6V4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
*CR
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.GREEN,6V7
URBAN KHAKI,6X3
GRAYISH BLUE M.M.,8V5
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1F9
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
BRONZE M.M.,4T3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
DK.GREEN M.M.,6T8
DK.GREEN MC.,6V4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
GRAYISH BLUE M.M.,8V5
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.GREEN,6V7
URBAN KHAKI,6X3
GRAYISH BLUE M.M.,8V5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
POWER MEMORY PACKAGE,BLACK,TRIM1#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
90148A0017
main90148-A0017
90148A0022
main90148-A0022
90167A0001
main90167-A0001
9016840061
main90168-40061
9016840106
main90168-40106
9018906018
main90189-06018
31 parts on this diagram · 1 diagram in section
