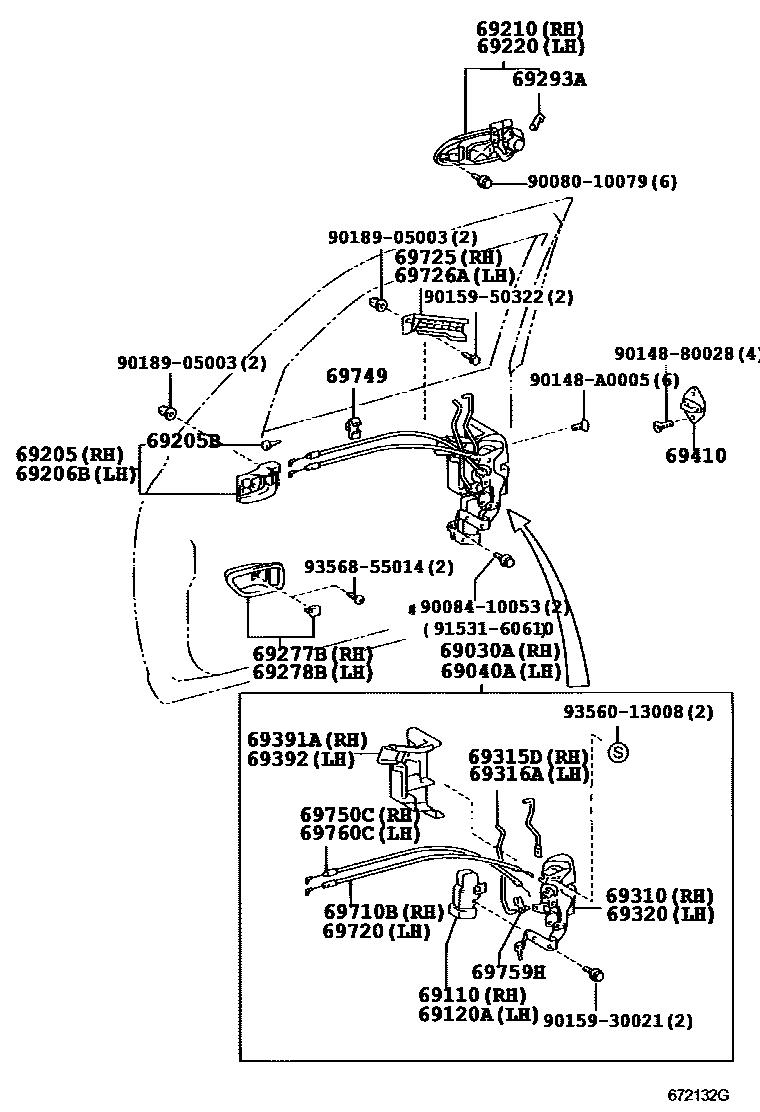

Toyota SEQUOIA — FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-0C020iUCK35,45..4HC200009-200108

main69030-0C021iUCK35,45200108-200408

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-0C020iUCK35,45200009-200408

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-06010iUCK35,45200009-200408

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-06010iUCK35,45200009-200408

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0C030-B0iUCK35,45200009-200408

MD.CHARCOAL,TRIM1#

main69205-0C030-E0iUCK35,45200009-200408

MD.OAK,TRIM4#

main69205-0C030-E1iUCK35,45200408

FAWN,TRIM42,43

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005×2iUCK35,45200009-200408

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0C030-B0iUCK35,45200009-200408

MD.CHARCOAL,TRIM1#

main69206-0C030-E0iUCK35,45200009-200408

MD.OAK,TRIM4#

main69206-0C030-E1iUCK35,45200408

FAWN,TRIM42,43

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-34050-A0iUCK35,45200408

WHITE,056

main69210-34050-A1iUCK35,45..LIMD200408

WHITE PEARL CS.,071

main69210-34050-A2iUCK35,45200512

SUPER WHITE 2,040

main69210-34050-B0iUCK35,45200009-200209

GRAY M.M.OP.,1C7

main69210-34050-B1iUCK35,45200408

SILVER ME.,1D6

main69210-34050-B2iUCK35,45200408

GRAY M.M.,1E3

main69210-34050-C0iUCK35,45200009-200408

BLACK,202

main69210-34050-D0iUCK35,45..SR5200009-200209

RED MM,3K4

main69210-34050-D1iUCK35,45..SR5200209-200408

DK. RED M.M.,3Q3

main69210-34050-E0iUCK35,45200408

BEIGE M. M.,4Q2

main69210-34050-E1iUCK35,45..SR5200009-200108

BROWN M.M.,4Q7

main69210-34050-G0iUCK35,45200009-200408

DK.GREEN MC.,6Q7

main69210-34050-G1iUCK35,45200408

DK.GREEN M.M.,6T8

main69210-34050-J0iUCK35,45..SR5200009-200408

BLUE M.M.,8P9

main69210-34050-J3iUCK35,45200408

DK.BLUE MM,8J7

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-34050-A0iUCK35,45200009-200408

WHITE,056

main69220-34050-A1iUCK35,45..LIMD200408

WHITE PEARL CS.,071

main69220-34050-A2iUCK35,45200512

SUPER WHITE 2,040

main69220-34050-B0iUCK35,45200009-200209

GRAY M.M.OP.,1C7

main69220-34050-B1iUCK35,45200009-200408

SILVER ME.,1D6

main69220-34050-B2iUCK35,45200209-200408

GRAY M.M.,1E3

main69220-34050-C0iUCK35,45200408

BLACK,202

main69220-34050-D0iUCK35,45..SR5200009-200209

RED MM,3K4

main69220-34050-D1iUCK35,45200408

DK. RED M.M.,3Q3

main69220-34050-E0iUCK35,45..SR5200009-200408

BEIGE M. M.,4Q2

main69220-34050-E1iUCK35,45..SR5200009-200108

BROWN M.M.,4Q7

main69220-34050-G0iUCK35,45200009-200408

DK.GREEN MC.,6Q7

main69220-34050-G1iUCK35,45200408

DK.GREEN M.M.,6T8

main69220-34050-J0iUCK35,45..SR5200009-200408

BLUE M.M.,8P9

main69220-34050-J3iUCK35,45200408

DK.BLUE MM,8J7

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-AC010-B1iUCK35,45200408

MD.CHARCOAL,TRIM1#

main69277-AC010-E0iUCK35,45200408

FAWN,TRIM42,43

main69277-AC010-E1iUCK35,45200009-200408

MD.OAK,TRIM4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-AC010-B1iUCK35,45200009-200408

MD.CHARCOAL,TRIM1#

main69278-AC010-E0iUCK35,45200408

FAWN,TRIM42,43

main69278-AC010-E1iUCK35,45200009-200408

MD.OAK,TRIM4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iUCK35,45200009-200408

LH

main69293-12040iUCK35,45200009-200408

RH

69310LOCK ASSY, FRONT DOOR, RH

main69303-0C010iUCK35,45..4HC200009-200108

main69303-0C011iUCK35,45200108-200408

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-0C020iUCK35,45200009-200408

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-0C020iUCK35,45200009-200408

69320LOCK ASSY, FRONT DOOR, LH

main69304-0C010iUCK35,45200009-200408

69391ACOVER, FRONT DOOR LOCK, OUTER RH

main69391-0C010iUCK35,45200009-200408

69392COVER, FRONT DOOR LOCK, OUTER LH

main69392-0C010iUCK35,45200408

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0C020×2iUCK35,45200009-200408

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0C020iUCK35,45200009-200408

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-0C010iUCK35,45200009-200408

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-0C020iUCK35,45200009-200408

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-0C020iUCK35,45200408

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040×2iUCK35,45200009-200408

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0C020iUCK35,45..4HC200009-200108

main69750-0C021iUCK35,45200108-200408

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24080iUCK35,45200009-200408

LH

main69759-24090iUCK35,45200408

RH

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-0C020iUCK35,45200408

9008010079

main90080-10079

9008410053

main90084-10053

9014880028

main90148-80028

90148A0005

main90148-A0005

9015930021

main90159-30021

9015950322

main90159-50322

9018905003

main90189-05003

9153160610

main91531-60610

9356013008

main93560-13008

9356855014

main93568-55014

37 parts on this diagram · 1 diagram in section
