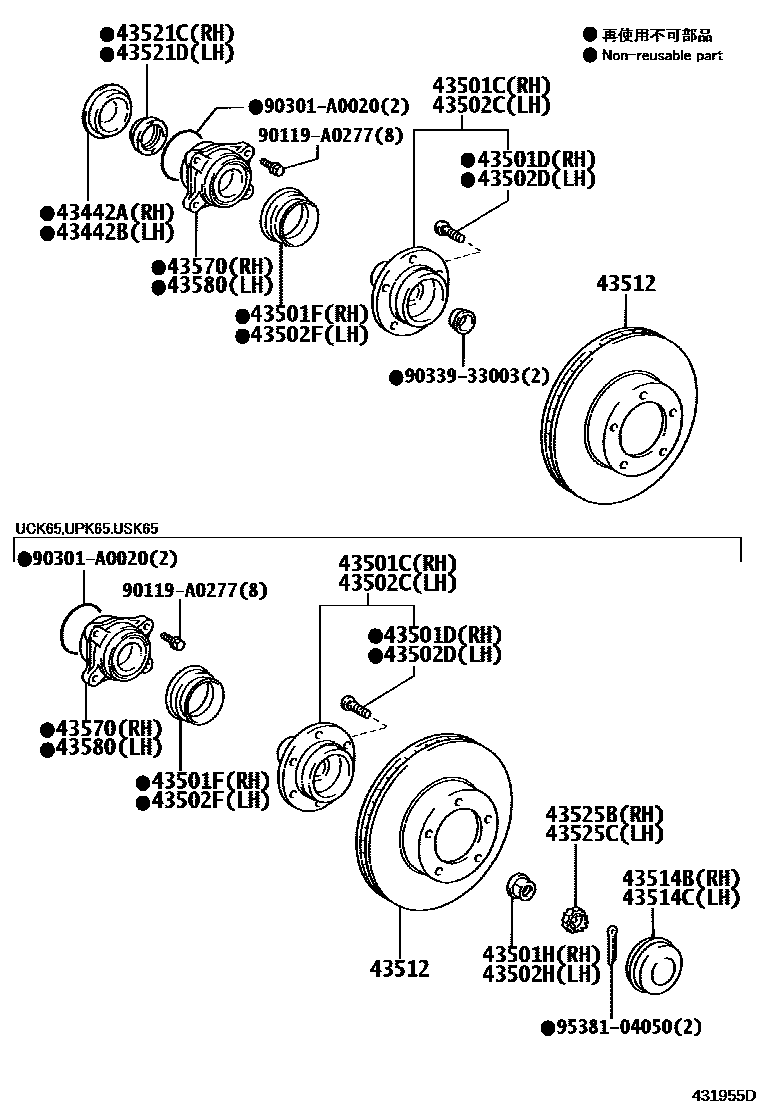

Toyota SEQUOIA — FRONT AXLE HUB

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0C010iUSK60200711-201708

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0C010iUSK60201708

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0C021iUSK60201708

main43502-0C031iUSK65..HTWCF201708-201709

main43502-34050iUPK60,USK60200910-201002

main43502-34060iUPK65,USK65200909-201002

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02077×5iUCK6#,USK6#200711-200712

main90942-02083×5iUSK65..HTWCF201708-201709

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-A0002iUCK6#200711-200904

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-32007iUCK65200711-200904

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0C021iUPK60,USK60200711-200909

main43502-0C031iUPK65,USK65200711-200908

main43502-34050iUPK60,USK60200910-201002

main43502-34060iUPK65,USK65200909-201002

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02077×5iUCK6#,USK6#200711-200712

main90942-02083×5iUSK6#..HTWC201708

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-A0002iUCK6#200711-200904

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-32007iUCK65200711-200904

43512DISC, FRONT

main43512-0C020×2iUCK6#,UPK6#,USK6#200711-201708

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-34020iUCK65200711-200904

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-34020iUCK65200711-200904

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-0C010iUCK60200711-200904

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-0C010iUCK60200711-200904

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-0C010iUCK65200711-200904

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-0C010iUCK65200711-200904

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-0C010iUCK6#200711-200904

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-0C010iUCK6#200711-200904

90119A0277

main90119-A0277

90301A0020

main90301-A0020

9033933003

main90339-33003

9538104050

main95381-04050

23 parts on this diagram · 1 diagram in section
