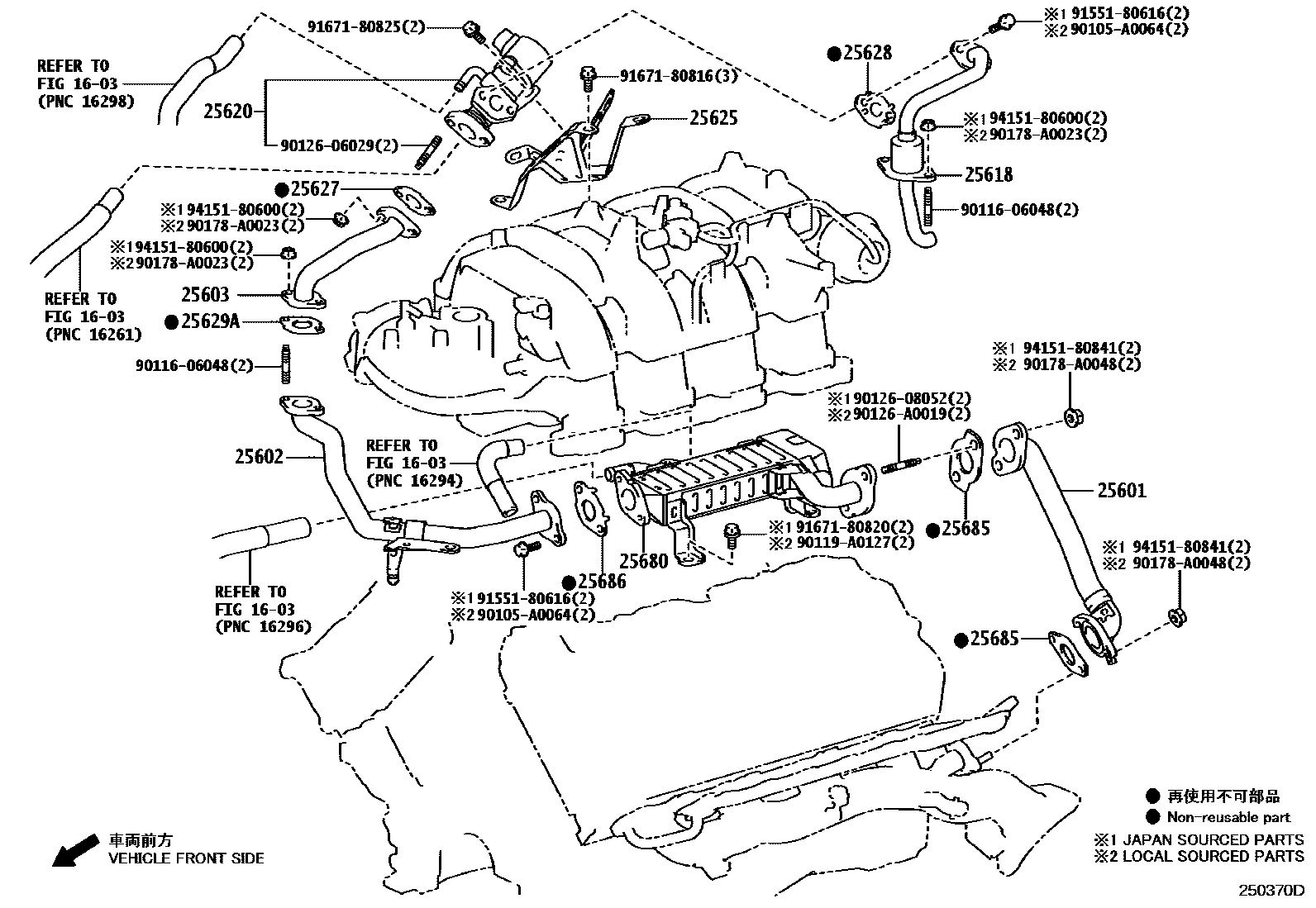

Toyota SEQUOIA — EXHAUST GAS RECIRCULATION SYSTEM
1603RADIATOR & WATER OUTLET
25601PIPE SUB-ASSY, EGR, NO.1
25602PIPE SUB-ASSY, EGR, NO.2
25603PIPE SUB-ASSY, EGR, NO.3
25618INLET, EGR
25620VALVE ASSY, EGR
25625BRACKET, EGR VALVE
25627GASKET, EGR VALVE
25628GASKET, EGR INLET
25629AGASKET, EGR PIPE, NO.2
25680COOLER ASSY, EGR
25685GASKET, EGR COOLER, NO.1
25686GASKET, EGR COOLER, NO.2
90105A0064
main90105-A0064
9011606048
main90116-06048
90119A0127
main90119-A0127
9012606029
main90126-06029
9012608052
main90126-08052
90126A0019
main90126-A0019
90178A0023
main90178-A0023
90178A0048
main90178-A0048
9155180616
main91551-80616
9167180816
main91671-80816
9167180820
main91671-80820
9167180825
main91671-80825
9415180600
main94151-80600
9415180841
main94151-80841
27 parts on this diagram · 1 diagram in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota SEQUOIA
This section contains 27 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota SEQUOIA. Key components include: RADIATOR & WATER OUTLET, PIPE SUB-ASSY, EGR, NO.1, PIPE SUB-ASSY, EGR, NO.2, PIPE SUB-ASSY, EGR, NO.3, INLET, EGR.
