Toyota SEQUOIA — ELECTRONIC FUEL INJECTION SYSTEM

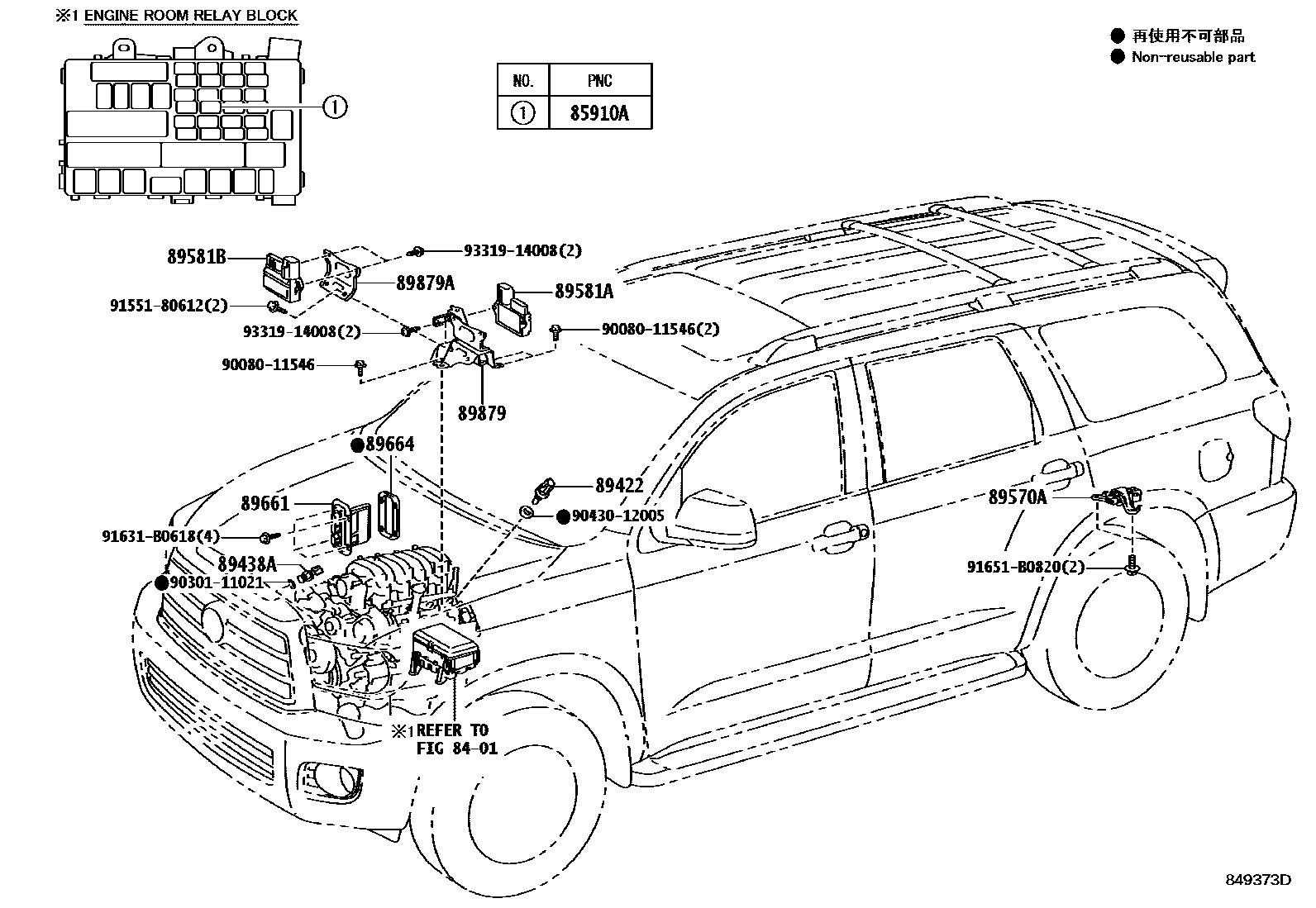

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87024i201708-201709

main90080-87026i200711-201708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010i200711-200808

main89422-06010i200808-200904

(L)

main89422-33030i200711-201709

main89422-33030i200808-200904

(J)

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34010i200711-200712

main89448-34020i200801-201708

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-34030i200711-201008

main89570-34040i200711-201008

main89570-34050i200808-201709

89581ADRIVER, AIR INJECTION CONTROL

main89581-34041i200711-201208

main89581-60010i201109-201709

89581BDRIVER, AIR INJECTION CONTROL

main89581-34051i200711-201208

main89581-34080i201109-201709

89661COMPUTER, ENGINE CONTROL

main89661-0CA40i200711-200806

MEXICO SPEC

main89661-0CA41i200806-200808

MEXICO SPEC

main89661-0CA50i200711-200806

main89661-0CA51i200806-200808

main89661-0CA90i200711-200803

main89661-0CA91i200803-200808

main89661-0CB00i200711-200803

main89661-0CB01i200803-200808

main89661-0CC40i201107-201208

main89661-0CC70i200808-200904

main89661-0CD50i200808-200901

main89661-0CD51i200902-200904

main89661-0CD60i200808-200901

main89661-0CD61i200902-200904

main89661-0CE90i200808-200902

MEXICO SPEC

main89661-0CF00i200808-200902

main89661-0CG80i200904-201004

main89661-0CG81i201004-201008

main89661-0CJ20i200904-201005

main89661-0CJ21i201005-201008

main89661-0CJ30i200904-201005

main89661-0CJ31i201005-201008

main89661-0CJ70i200904-201005

main89661-0CJ71i201005-201008

main89661-0CJ80i200904-201005

main89661-0CJ81i201005-201008

main89661-0CL30i201008-201010

main89661-0CL31i201011-201107

main89661-0CL60i201008-201106

main89661-0CL80i201008-201106

main89661-0CM90i201106-201201

main89661-0CM91i201202-201208

main89661-0CM92i201209-201301

main89661-0CM93i201302-201308

main89661-0CN20i201106-201201

main89661-0CN21i201202-201208

main89661-0CN22i201209-201301

main89661-0CN23i201302-201303

main89661-0CN24i201304-201308

main89661-0CN80i201308-201407

main89661-0CN81i201407-201410

main89661-0CN82i201411-201508

main89661-0CN83i201509-201708

main89661-0CP70i201308-201407

main89661-0CP71i201407-201410

main89661-0CP72i201411-201412

main89661-0CP73i201501-201508

main89661-0CQ30i201508-201509

main89661-0CQ31i201509-201708

main89661-0CR80i201708-201808

DENSO

main89661-0CS10i201708-201709

DENSO

main89661-0CT00i201808-201908

DENSO

main89661-0CT10i201908-202009

DENSO

main89661-0CV90i202009

DENSO

89664PLATE, ENGINE CONTROL COMPUTER

main89664-34010i200711-201708

89879BRACKET, INJECTOR DRIVER

main89589-34020i200711-201709

89879ABRACKET, INJECTOR DRIVER

main89589-34030i200711-201709

9008011546

main90080-11546

9030111021

main90301-11021

9043012005

main90430-12005

9155180612

main91551-80612

91631B0618

main91631-B0618

91651B0820

main91651-B0820

9331914008

main93319-14008

18 parts on this diagram · 3 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota SEQUOIA

This section contains 23 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota SEQUOIA. Key components include: RELAY ASSY, FUEL PUMP, SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, INJECTION (FOR EFI), SENSOR, WATER TEMPERATURE (FOR E.F.I.).
