Toyota SEQUOIA — ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
PART NUMBER LABEL=90084-98032
PART NUMBER LABEL=90987-04004
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
PART NUMBER LABEL=90080-87026
PART NUMBER LABEL=90084-98031
PART NUMBER LABEL=90987-02012
85910FRELAY, COMPUTER (FOR EFI)
PART NUMBER LABEL=90080-87026
PART NUMBER LABEL=90084-98031
PART NUMBER LABEL=90987-02012
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
PART NUMBER LABEL=90080-87026
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
(L)
(J)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89460SENSOR ASSY, VAPOR PRESSURE
89581ADRIVER, AIR INJECTION CONTROL
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9008011135
main90080-11135
9008011403
main90080-11403
9015950138
main90159-50138
9043012005
main90430-12005
9331914008
main93319-14008
9331915010
main93319-15010
9356015016
main93560-15016

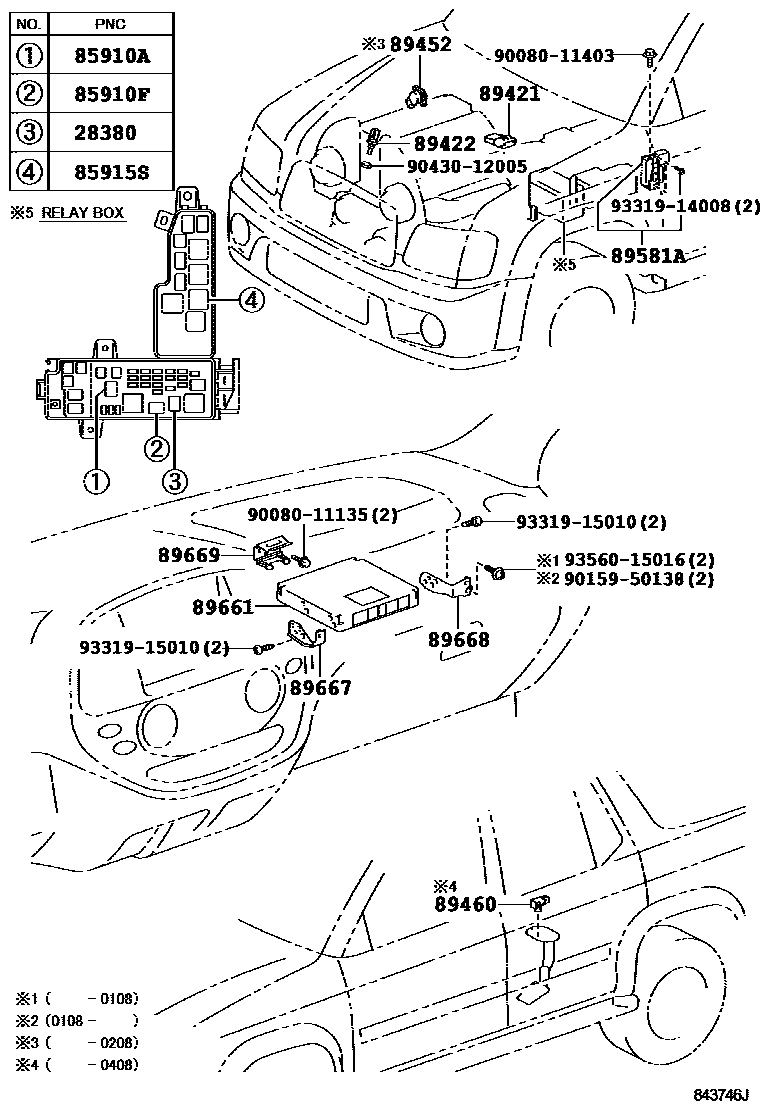

20 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota SEQUOIA
This section contains 20 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota SEQUOIA. Key components include: RELAY ASSY, FUEL PUMP, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), RELAY, HEATER (FOR AIR FUEL RATIO SENSOR), SENSOR ASSY, VACUUM (FOR E.F.I.).
