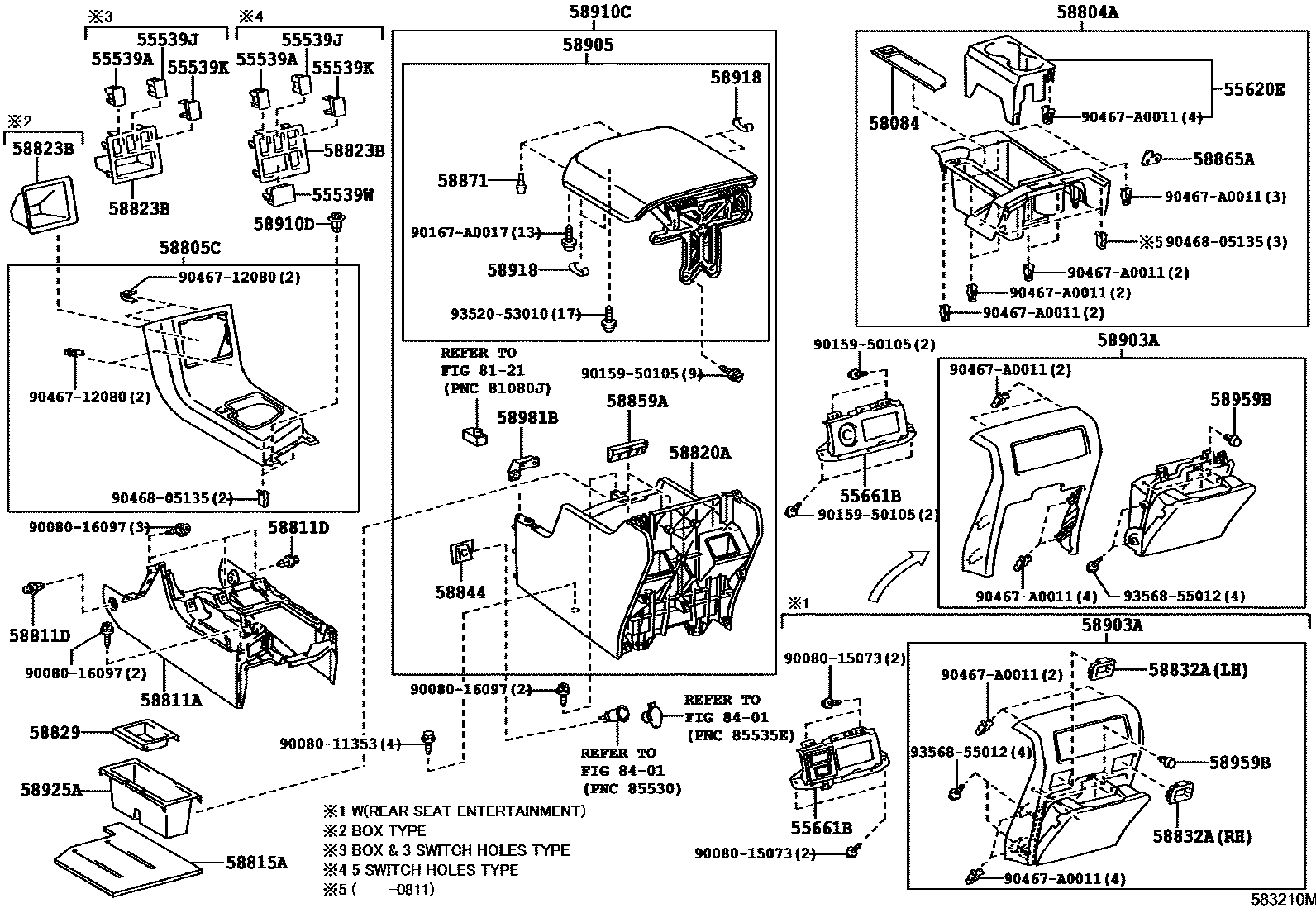

Toyota SEQUOIA — CONSOLE BOX & BRACKET

0001 1 0002 1REAR SEAT CONSOLE BOX

55539ACOVER, SPARE SWITCH HOLE

main55539-0C080iUCK60200711-200904

REAR SUSPENSION-AIR SUSPENSION

main55539-0C081iUSK60..PLAT;USK65..HTWC201708

55539JCOVER, SPARE SWITCH HOLE

main55539-0C090iUPK60201008-201208

TOWING PACKAGE-WITHOUT

55539KCOVER, SPARE SWITCH HOLE

main55539-06090-C0iUSK65..(LIMD,SR5)..HTWCF201708-201709

BLACK

main55539-52060-C0iUSK60..LIMD,SR5200711-201701

BLACK,TRIM1#

main55539-52060-C4iUSK60..LIMD,SR5201701-201708

TOWING PACKAGE-WITH,BLACK

55539WCOVER, SPARE SWITCH HOLE

main55539-0C060iUCK6#200711-200904

REAR SUSPENSION-AIR SUSPENSION

55620EHOLDER ASSY, INSTRUMENT PANEL CUP

main55620-0C030-C0iUPK6#,USK6#..PLAT,SR5201106-201708

BLACK,TRIM1#,4#

main55620-0C030-E0iUCK6#200711-200904

DK. BROWN,TRIM4#

55661BBEZEL, CONSOLE BOX REGISTER

main58844-0C070iUSK6#201708

main58844-0C080supersedes 58844-0C070iUSK6#..LIMD,PLAT201708-201908

REAR AUDIO-REAR SEAT ENTERTAINMENT & BLU-RAY PLAYER

58084COVER SUB-ASSY, CONSOLE, REAR

main58084-0C010-C0iUPK6#,USK6#..PLAT,SR5200711-201106

BLACK,TRIM1#,44

main58084-0C010-E0iUPK6#,USK6#200711-201106

DK. BROWN,TRIM44

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0C080-C0iUPK6#,USK6#..PLAT,SR5201106-201708

BLACK,TRIM1#,4#

main58804-0C080-E0iUPK6#,USK6#200711-201106

DK. BROWN,TRIM44

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0C070iUCK6#,USK6#200711-200904

main58805-0C100iUSK6#200904-201708

main58805-0C130-C0iUSK60;USK65..PLAT,SR5;USK65..LIMD..HTWC201708

BLACK,TRIM1#,2#,4#

58811ABOX, CONSOLE, FRONT

main58811-0C040-C0iUPK6#,USK6#..PLAT,SR5200711-201106

BLACK,TRIM1#,44

main58811-0C040-E0iUCK6#200711-200904

DK. BROWN,TRIM4#

main58811-0C080-C0iUSK6#201807

BLACK,TRIM1#,2#,4#

58811DCLIP(FOR CONSOLE BOX)

main90467-06165×2iUCK6#,USK6#200711-200904

main90467-06165-C0×2iUPK6#,USK6#200904-201610

BLACK

main90467-06165-C3×2iUSK6#201708

BLACK

58815ACARPET, CONSOLE BOX

main58815-0C030iUPK6#200711-201208

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-0C040-C0iUSK60;USK65..PLAT,SR5;USK65..LIMD..HTWC201708

BLACK,TRIM1#,2#,4#

main58820-0C040-E0iUPK6#,USK6#..SR5200711-200910

DK. BROWN,TRIM4#

58823BBOX, CONSOLE COMPARTMENT

main58820-0C030iUPK60200711-201008

main58820-0C051iUSK60..LIMD,SR5200711-200904

TOWING PACKAGE-WITH

main58820-0C090iUSK60..LIMD,SR5200904-201708

TOWING PACKAGE-WITH

main58820-0C140supersedes 58820-0C030iUSK60..LIMD,SR5201708

TOWING PACKAGE-WITH

main58831-0C040iUSK6#..PLAT200711-200904

REAR SUSPENSION-AIR SUSPENSION

main58831-0C060iUSK6#..PLAT200904-201708

main58831-0C080iUSK6#..PLAT..HTWC201708

58829POCKET, CONSOLE BOX

main58925-0C030iUCK6#200711-200904

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-0C010-C0iUCK6#..SR5200711-200904

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM1#,LH

main58832-0C010-E0iUCK6#200711-200904

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,DK. BROWN,TRIM4#,LH

main58832-0C020-C0iUSK6#..PLAT201106-201208

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM1#,4#,RH

main58832-0C020-E0iUCK6#200711-200904

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,DK. BROWN,TRIM4#,RH

58844BEZEL, CONSOLE BOX

main58844-0C050iUSK6#201708

58859AHOOK, CONSOLE BOX HOLDER

main58859-0C010×2iUPK6#200711-201208

58865ALENS, FRONT CONSOLE BOX, NO.1

main58865-0C020iUPK6#200711-201208

58871CUSHION, CONSOLE BOX

main90541-05020×2iUSK6#201708

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0C050-C0iUPK6#,USK6#..PLAT,SR5201106-201708

BLACK,TRIM1#,4#

main58903-0C060-C0supersedes 58903-0C050-C0iUPK6#,USK6#..PLAT,SR5200711-201106

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM1#,44

main58903-0C060-E0supersedes 58903-0C050-E0iUCK6#200711-200904

REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,DK. BROWN,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0C031-B0iUCK6#,UPK6#,USK6#..SR5200711-200909

GRAY,TRIM1#

main58905-0C031-C0iUCK6#,UPK6#,USK6#..SR5200812-200909

BLACK,TRIM2#

main58905-0C031-E0iUCK6#,UPK6#,USK6#..SR5200711-200909

SAND BEIGE,TRIM4#

main58905-0C032-B0iUSK6#..SR5201708

GRAY,TRIM1#

sub58905-0C100

main58905-0C032-C0iUPK6#,USK6#..SR5200910-201708

BLACK,TRIM2#

sub58905-0C100

main58905-0C032-E0iUPK6#,USK6#..SR5200910-201708

SAND BEIGE,TRIM4#

sub58905-0C100

main58905-0C050-B0iUCK6#,UPK6#,USK6#..LIMD,PLAT200711-200909

GRAY,TRIM1#

main58905-0C050-E0iUSK6#..PLAT200711-200909

REDROCK,TRIM2#

main58905-0C050-E1iUCK6#,UPK6#,USK6#..LIMD,PLAT200711-200909

SAND BEIGE,TRIM4#

main58905-0C051-B0iUPK6#,USK6#..LIMD,PLAT200910-201008

GRAY,TRIM1#

main58905-0C051-E0iUSK6#..PLAT200910-201008

REDROCK,TRIM2#

main58905-0C051-E1iUPK6#,USK6#..LIMD,PLAT200910-201008

SAND BEIGE,TRIM4#

main58905-0C110-B0iUPK6#,USK6#..LIMD,PLAT201008-201708

GRAY,TRIM1#

main58905-0C110-E0iUPK6#,USK6#..LIMD,PLAT201008-201708

SAND BEIGE,TRIM4#

main58905-0C110-E1iUSK6#..PLAT201708

RED ROCK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-0C081-C2iUCK6#,UPK6#,USK6#..SR5200711-200909

GRAY,TRIM1#

main58910-0C081-C3iUCK6#,UPK6#,USK6#..SR5200812-200909

BLACK,TRIM2#

main58910-0C081-E1iUCK6#,UPK6#,USK6#..SR5200711-200909

SAND BEIGE,TRIM4#

main58910-0C082-C2iUSK6#..SR5201708

GRAY,TRIM1#

sub58910-0C110

main58910-0C082-C3iUSK6#..SR5201708

BLACK,TRIM2#

sub58910-0C110

main58910-0C082-C4iUPK6#,USK6#..SR5201106-201708

BLACK,TRIM4#

sub58910-0C110

main58910-0C082-E1iUPK6#,USK6#..SR5200910-201106

SAND BEIGE,TRIM4#

sub58910-0C110

main58910-0C100-C0iUSK6#..PLAT200711-200909

REDROCK,TRIM2#

main58910-0C100-C1iUCK6#,UPK6#,USK6#..LIMD,PLAT200711-200909

GRAY,TRIM1#

main58910-0C100-E0iUCK6#,UPK6#,USK6#..LIMD,PLAT200711-200909

SAND BEIGE,TRIM4#

main58910-0C101-C0iUSK6#..PLAT200910-201008

REDROCK,TRIM2#

main58910-0C101-C1iUPK6#,USK6#..LIMD,PLAT200910-201008

GRAY,TRIM1#

main58910-0C101-E0iUPK6#,USK6#..LIMD,PLAT200910-201008

SAND BEIGE,TRIM4#

main58910-0C200-C0iUSK6#..PLAT201708

RED ROCK,TRIM2#

main58910-0C200-C1iUPK6#,USK6#..LIMD,PLAT201008-201708

GRAY,TRIM1#

main58910-0C200-C2iUPK6#,USK6#..LIMD,PLAT201106-201708

BLACK,TRIM4#

main58910-0C200-E0iUPK6#,USK6#..LIMD,PLAT201008-201106

SAND BEIGE,TRIM4#

58910DCLIP(FOR CONSOLE BOX)

main90467-06165iUCK6#,USK6#200711-200904

main90467-06165-C0iUPK6#,USK6#200904-201610

BLACK

main90467-06165-C3iUSK6#201610-201708

BLACK

58918SPRING, CONSOLE BOX STOPPER

main74124-22050×4iUCK6#200711-200904

58925APOCKET, CONSOLE BOX, REAR

main58925-0C020iUSK6#201708

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iUPK6#200711-201208

58981BRETAINER, CONSOLE MOUNTING, NO.1

main58981-0C040iUSK6#200711-201708

8121

8401

9008011353

main90080-11353

9008015073

main90080-15073

9008016097

main90080-16097

9015950105

main90159-50105

90167A0017

main90167-A0017

9046712080

main90467-12080

90467A0011

main90467-A0011

9046805135

main90468-05135

9352053010

main93520-53010

9356855012

main93568-55012

40 parts on this diagram · 2 diagrams in section
