Toyota SEQUOIA — CONSOLE BOX & BRACKET

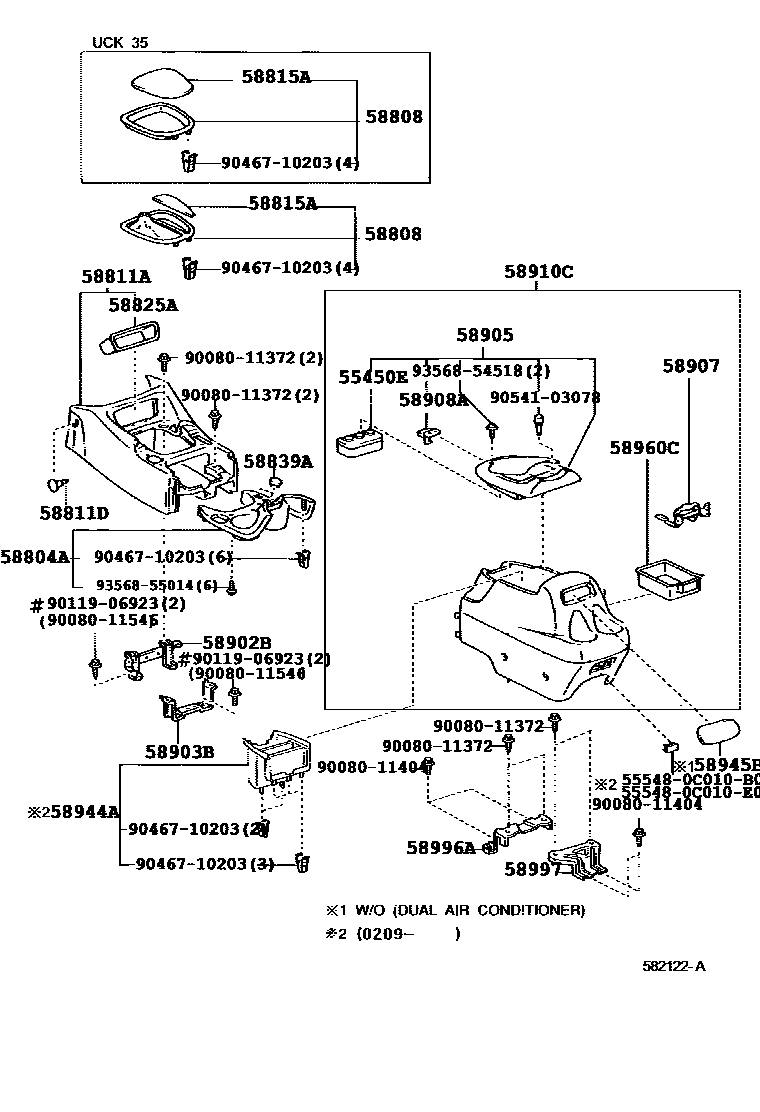

Parts diagram
55450EBOX ASSY, COIN
main55450-0C010i200408-200605
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-0C010i200009-200408
main58804-0C021i200009-200108
main58804-0C022-B0i200108-200408
GRAY ME,TRIM1#
main58804-0C022-E0i200108-200408
BROWN ME,TRIM4#
main58804-0C023i200408
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-0C010i200009-200408
main58808-0C020i200009-200408
58811ABOX, CONSOLE, FRONT
main58810-0C010-B0i200310-200408
DK.CHARCOAL,TRIM1#
main58810-0C010-E0i200310-200408
OAK,TRIM4#
main58810-0C011-B0i200209-200310
DK.CHARCOAL,TRIM1#
main58810-0C011-E0i200209-200310
OAK,TRIM4#
main58810-0C040-B0i200408
DK.CHARCOAL,TRIM1#
main58810-0C040-E1i200408
SANDAL WOOD,TRIM42,43
58811DCLIP(FOR CONSOLE BOX)
main55346-04020-B0×2i200408
DK.CHARCOAL,TRIM1#
main55346-04020-E0×2i200408
SANDAL WOOD,TRIM42,43
main55346-34010-B0×2i200009-200408
DK.CHARCOAL,TRIM1#
main55346-34010-E0×2i200009-200408
OAK,TRIM4#
58815ACARPET, CONSOLE BOX
main58815-0C010i200009-200408
main58815-0C020i200009-200408
58825APOCKET, CONSOLE BOX
main58825-0C010-B0i200009-200408
DK.CHARCOAL,TRIM1#
main58825-0C010-E0i200009-200408
OAK,TRIM4#
58839ACOVER, CONSOLE BOX HOLE
main58839-0C010×2i200009-200408
58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
main58902-0C010i200009-200310
main58902-0C020i200310-200408
main58902-0C021i200408
58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2
main58903-0C010i200009-200209
main58903-0C011i200408
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-0C020-B0i200009-200408
DK.CHARCOAL,TRIM1#
main58905-0C020-E0i200009-200408
OAK,TRIM4#
main58905-0C020-E1i200408-200605
SANDAL WOOD,TRIM42,43
main58905-0C021-B0i200606
DK.CHARCOAL,TRIM1#
main58905-0C021-E1i200606
SANDAL WOOD,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-0C010i200408-200605
NO.1
main58907-0C020i200508
NO.2
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-32050i200408
58910CBOX ASSY, CONSOLE, REAR
main58910-0C010-B0i200009-200408
W(ACCESSORY SOCKET),DK.CHARCOAL,TRIM1#
main58910-0C010-E0i200009-200408
W(ACCESSORY SOCKET),OAK,TRIM4#
main58910-0C010-E1i200408-200605
W(ACCESSORY SOCKET),SANDAL WOOD,TRIM42,43
main58910-0C011-B0i200606
W(ACCESSORY SOCKET),DK.CHARCOAL,TRIM1#
main58910-0C011-E1i200606
W(ACCESSORY SOCKET),SANDAL WOOD,TRIM4#
main58910-0C030-B0i200408-200605
W(REAR SEAT AUDIO),DK.CHARCOAL,TRIM1#
main58910-0C030-E0i200209-200408
W(REAR SEAT AUDIO),OAK,TRIM4#
main58910-0C030-E1i200408-200605
W(REAR SEAT AUDIO),SANDAL WOOD,TRIM42,43
main58910-0C031-B0i200606
W(REAR SEAT AUDIO),DK.CHARCOAL,TRIM1#
main58910-0C031-E1i200606
W(REAR SEAT AUDIO),SANDAL WOOD,TRIM4#
main58910-0C040-B0i200408-200605
W(REAR SEAT ENTERTAINMENT),DK.CHARCOAL,TRIM1#
main58910-0C040-E0i200209-200408
W(REAR SEAT ENTERTAINMENT),OAK,TRIM4#
main58910-0C040-E1i200408-200605
W(REAR SEAT ENTERTAINMENT),SANDAL WOOD,TRIM42,43
main58910-0C041-B0i200606
W(REAR SEAT ENTERTAINMENT),DK.CHARCOAL,TRIM1#
main58910-0C041-E1i200606
W(REAR SEAT ENTERTAINMENT),SANDAL WOOD,TRIM4#
58944ACOVER, CONSOLE, REAR
main58944-0C010i200209-200408
58945BGARNISH, CONSOLE, REAR
main58945-0C010-B0i200009-200408
DK.CHARCOAL,TRIM1#
main58945-0C010-E0i200009-200408
OAK,TRIM4#
58960CHOLDER ASSY, CASSETTE CASE
main58960-0C010i200009-200408
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-0C010i200009-200408
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
main58997-0C010i200009-200408
main58997-0C030i200408
NO.2
555480C010B0COVER, FUEL LID OPENER OPENING
main55548-0C010B0
555480C010E0COVER, FUEL LID OPENER OPENING
main55548-0C010E0
9008011372
main90080-11372
9008011404
main90080-11404
9008011546
main90080-11546
9011906923
main90119-06923
9046710203
main90467-10203
9054103078
main90541-03078
9356854518
main93568-54518
9356855014
main93568-55014

29 parts on this diagram · 3 diagrams in section
