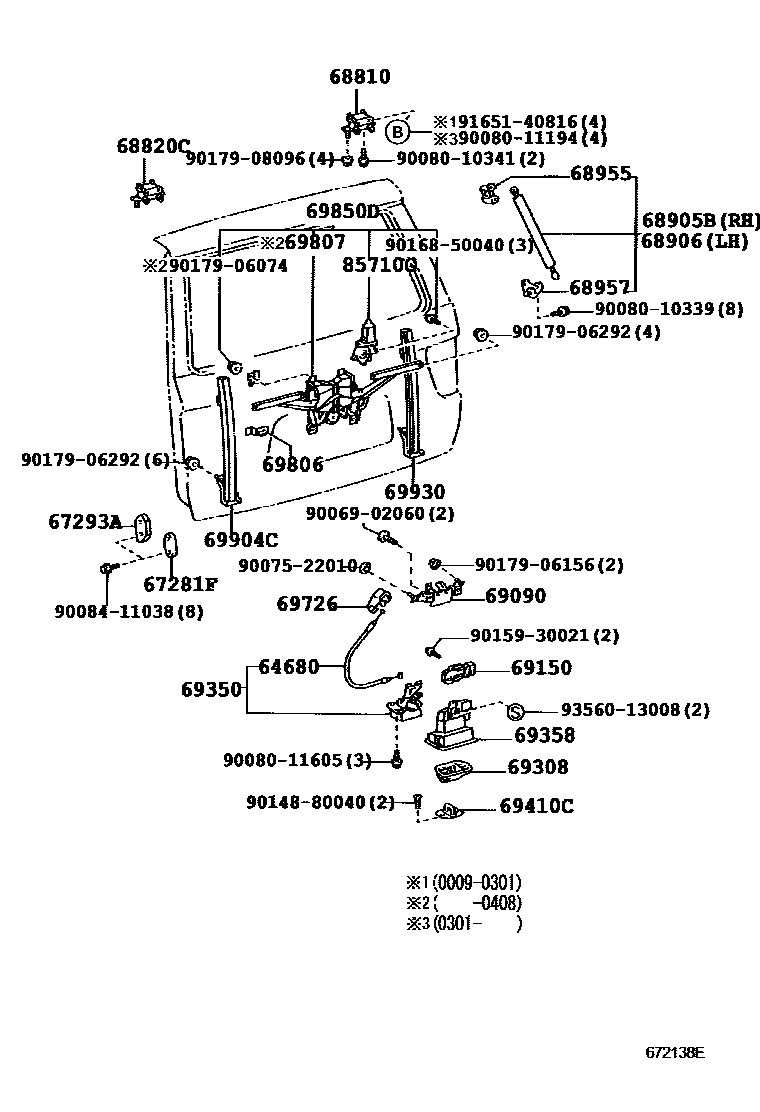

Toyota SEQUOIA — BACK DOOR LOCK & HINGE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
67281FSTOPPER, BACK DOOR, LOWER
RH,(J)
RH,(L)
LH
LH,(L)
67293ACUSHION, BACK DOOR STOPPER
RH
LH
68810HINGE ASSY, BACK DOOR, UPPER
68820CHINGE ASSY, BACK DOOR, LH
68905BSTAY SUB-ASSY, BACK DOOR, RH
COLD SPEC
COLD SPEC
COLD SPEC
68906STAY SUB-ASSY, BACK DOOR, LH
COLD SPEC
COLD SPEC
68955BRACKET, BACK DOOR STAY
68957BRACKET, BACK DOOR STAY
RH
LH
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69150ACTUATOR ASSY, BACK DOOR LOCK
69308PROTECTOR SUB-ASSY, BACK DOOR LOCK
69350LOCK ASSY, BACK DOOR
69358PROTECTOR, BACK DOOR LOCK
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69726PROTECTOR, BACK DOOR LOCK CONTROL
69806BRACKET SUB-ASSY, BACK DOOR GLASS GUIDE
69807REGULATOR SUB-ASSY, BACK DOOR POWER WINDOW
69850DREGULATOR ASSY, BACK DOOR POWER WINDOW
69904CRAIL SUB-ASSY, BACK DOOR GLASS GUIDE, LH
69930RAIL ASSY, BACK DOOR GLASS GUIDE, RH
85710GMOTOR ASSY, POWER WINDOW REGULATOR, RH
9006902060
main90069-02060
9007522010
main90075-22010
9008010339
main90080-10339
9008010341
main90080-10341
9008011194
main90080-11194
9008011605
main90080-11605
9008411038
main90084-11038
9014880040
main90148-80040
9015930021
main90159-30021
9016850040
main90168-50040
9017906074
main90179-06074
9017906156
main90179-06156
9017906292
main90179-06292
9017908096
main90179-08096
9165140816
main91651-40816
9356013008
main93560-13008
38 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HINGE for Toyota SEQUOIA
This section contains 38 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota SEQUOIA. Key components include: CABLE ASSY, BACK DOOR LOCK CONTROL, STOPPER, BACK DOOR, LOWER, CUSHION, BACK DOOR STOPPER, HINGE ASSY, BACK DOOR, UPPER, HINGE ASSY, BACK DOOR, LH.
