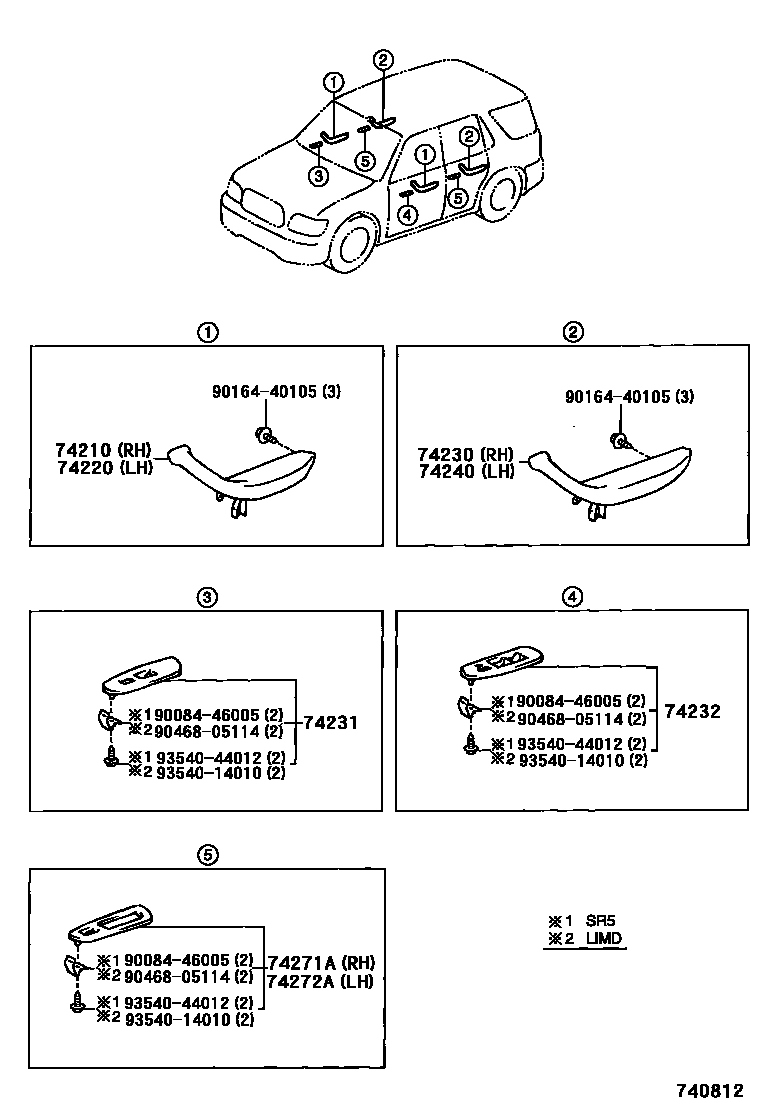

Toyota SEQUOIA — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR

74210ARMREST ASSY, FRONT, RH

main74210-0C010-B0iUCK35,45200009-200401

DK.CHARCOAL,TRIM1#

main74210-0C010-E0iUCK35,45200009-200401

OAK,TRIM4#

main74210-0C011-B0iUCK35,45200408

DK.CHARCOAL,TRIM1#

main74210-0C011-E0iUCK35,45200401-200408

OAK,TRIM4#

main74210-0C011-E2iUCK35,45200408

SANDAL WOOD,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-0C010-B0iUCK35,45200009-200401

DK.CHARCOAL,TRIM1#

main74220-0C010-E0iUCK35,45200009-200401

OAK,TRIM4#

main74220-0C011-B0iUCK35,45200401-200408

DK.CHARCOAL,TRIM1#

main74220-0C011-E0iUCK35,45200401-200408

OAK,TRIM4#

main74220-0C011-E2iUCK35,45200408

SANDAL WOOD,TRIM4#

74230ARMREST ASSY, REAR, RH

main74250-0C020-B0iUCK35,45200408

DK.CHARCOAL,TRIM1#

main74250-0C020-E0iUCK35,45200009-200408

OAK,TRIM4#

main74250-0C020-E1iUCK35,45200408

SANDAL WOOD,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74201-0C030-B1iUCK35,45..SR5200009-200408

MD.CHARCOAL,TRIM1#

main74201-0C030-E1iUCK35,45..SR5200009-200408

MD.OAK,TRIM4#

main74201-0C030-E2iUCK35,45..SR5200408

FAWN,TRIM42,43

main74201-0C060iUCK35,45..LIMD200408

main74201-34010iUCK35,45..LIMD200009-200108

main74201-34011-B1iUCK35,45..LIMD200108-200408

GRAY ME,TRIM1#

main74201-34011-E1iUCK35,45..LIMD200108-200408

BROWN ME,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74202-0C030-B1iUCK35,45..SR5200408

MD.CHARCOAL,TRIM1#

main74202-0C030-E1iUCK35,45..SR5200009-200408

MD.OAK,TRIM4#

main74202-0C030-E2iUCK35,45..SR5200408

FAWN,TRIM42,43

main74202-0C060iUCK35,45..LIMD200408

main74202-34010iUCK35,45..LIMD200009-200108

main74202-34011-B1iUCK35,45..LIMD200108-200408

GRAY ME,TRIM1#

main74202-34011-E1iUCK35,45..LIMD200108-200408

BROWN ME,TRIM4#

74240ARMREST ASSY, REAR, LH

main74260-0C020-B0iUCK35,45200009-200408

DK.CHARCOAL,TRIM1#

main74260-0C020-E0iUCK35,45200009-200408

OAK,TRIM4#

main74260-0C020-E1iUCK35,45200408

SANDAL WOOD,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74203-0C010-B1iUCK35,45..SR5200408

MD.CHARCOAL,TRIM1#

main74203-0C010-E1iUCK35,45..SR5200009-200408

MD.OAK,TRIM4#

main74203-0C010-E2iUCK35,45..SR5200408

FAWN,TRIM42,43

main74203-0C040iUCK35,45..LIMD200408

main74203-34010iUCK35,45..LIMD200009-200108

main74203-34011-B1iUCK35,45..LIMD200108-200408

GRAY ME,TRIM1#

main74203-34011-E1iUCK35,45..LIMD200108-200408

BROWN ME,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74204-0C010-B1iUCK35,45..SR5200408

MD.CHARCOAL,TRIM1#

main74204-0C010-E1iUCK35,45..SR5200009-200408

MD.OAK,TRIM4#

main74204-0C010-E2iUCK35,45..SR5200408

FAWN,TRIM42,43

main74204-0C040iUCK35,45..LIMD200408

main74204-34010iUCK35,45..LIMD200009-200108

main74204-34011-B1iUCK35,45..LIMD200108-200408

GRAY ME,TRIM1#

main74204-34011-E1iUCK35,45..LIMD200108-200408

BROWN ME,TRIM4#

9008446005

main90084-46005

9016440105

main90164-40105

9046805114

main90468-05114

9354014010

main93540-14010

9354044012

main93540-44012

13 parts on this diagram · 2 diagrams in section
